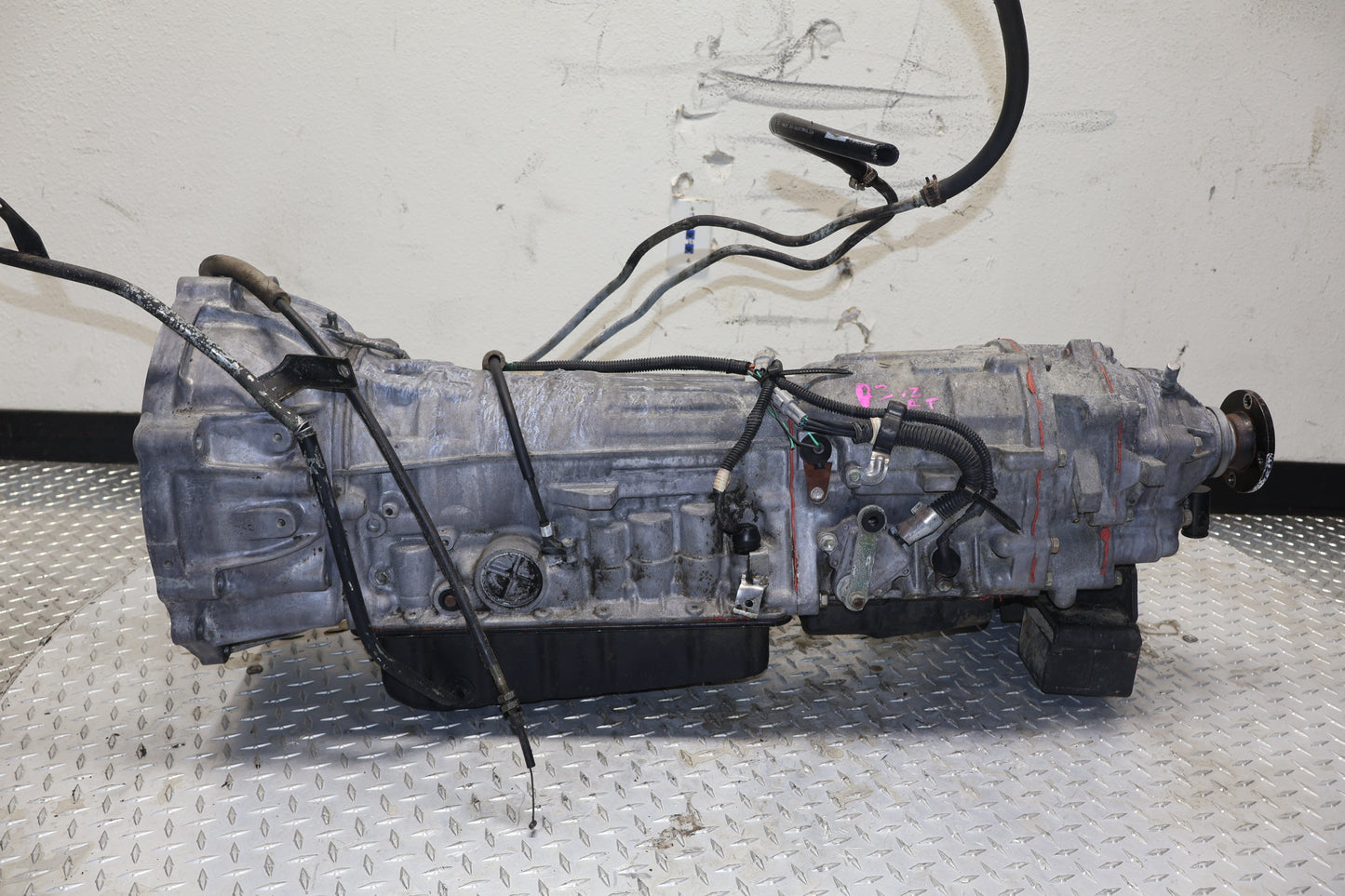

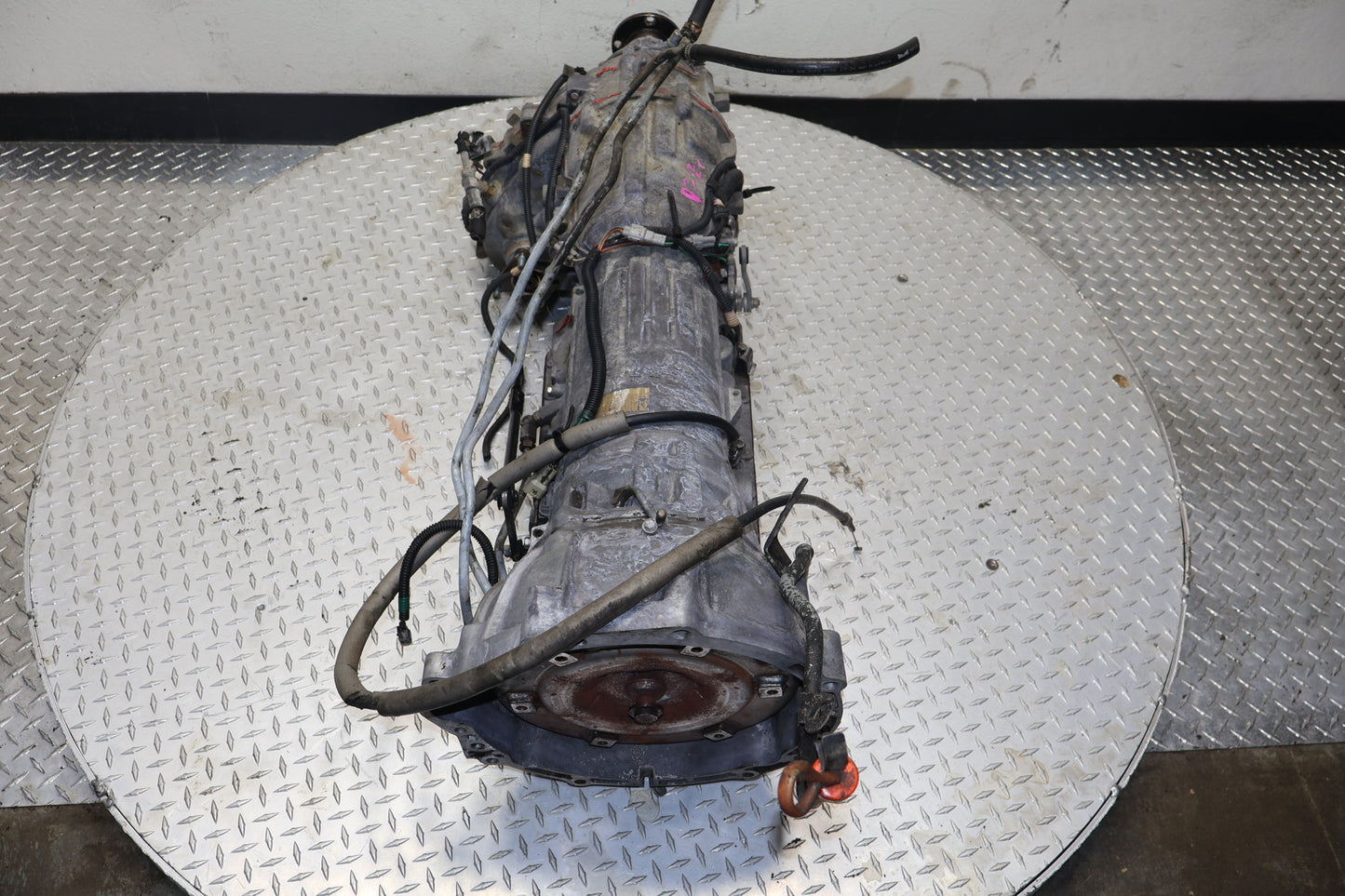

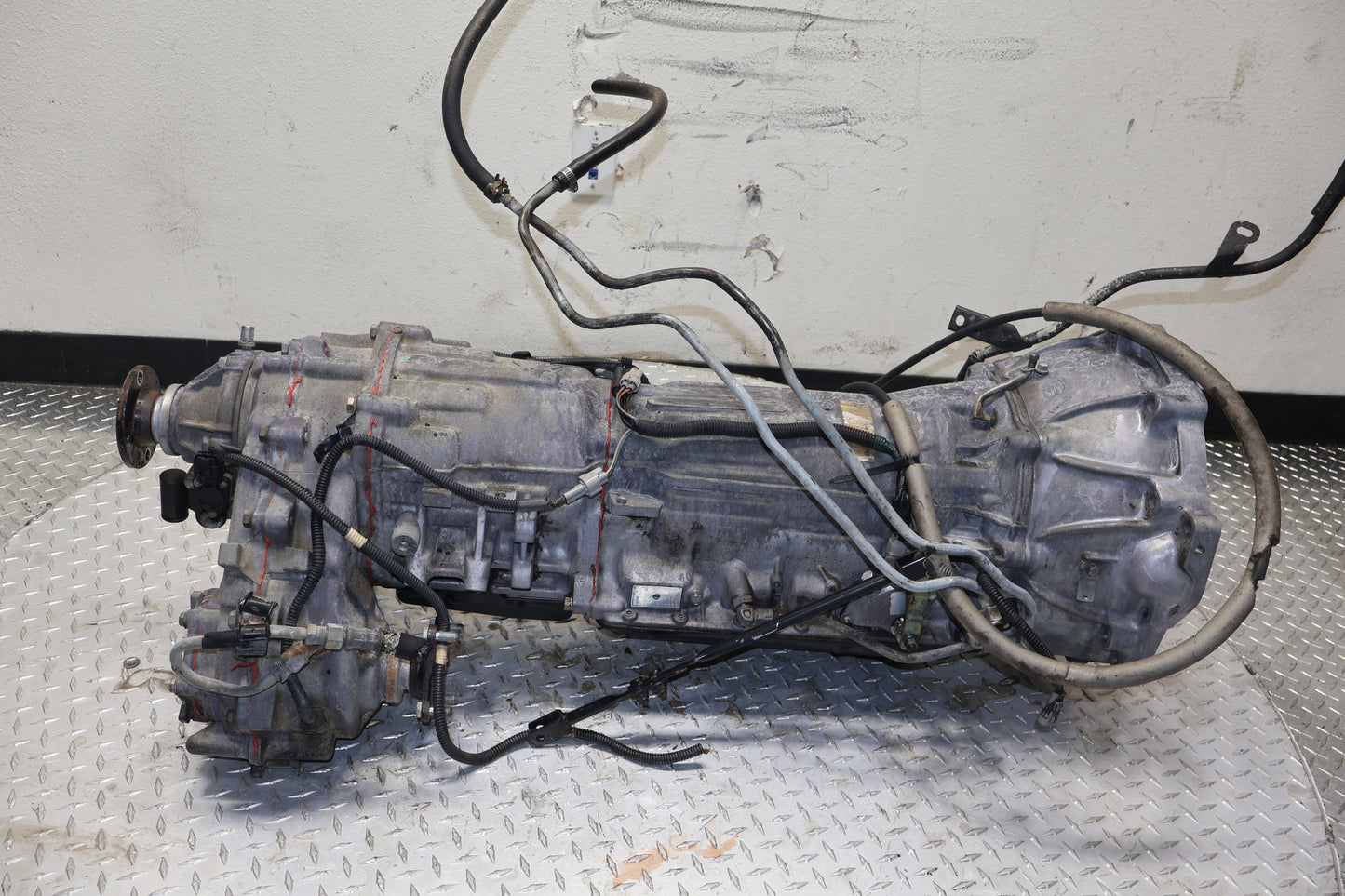

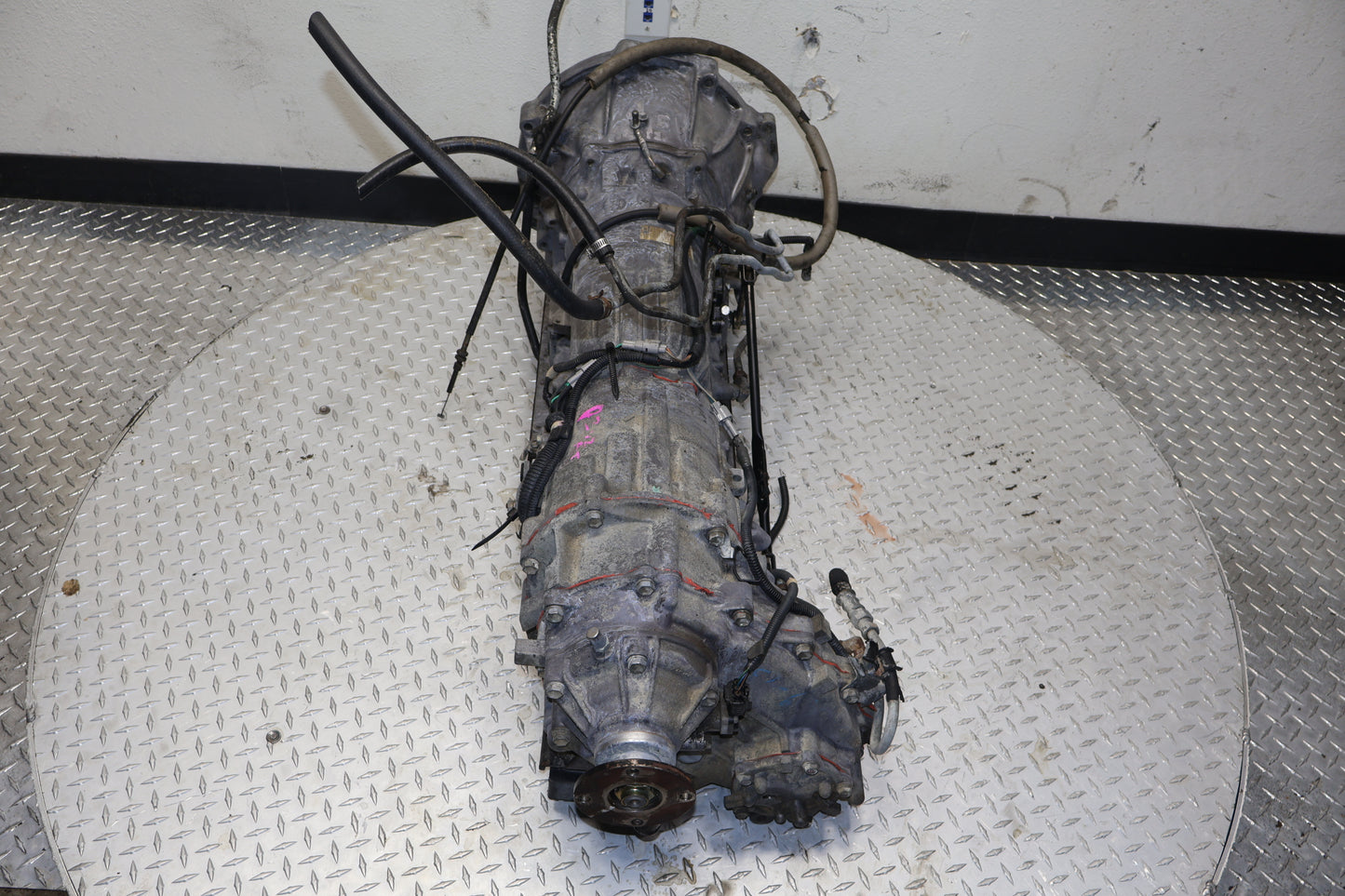

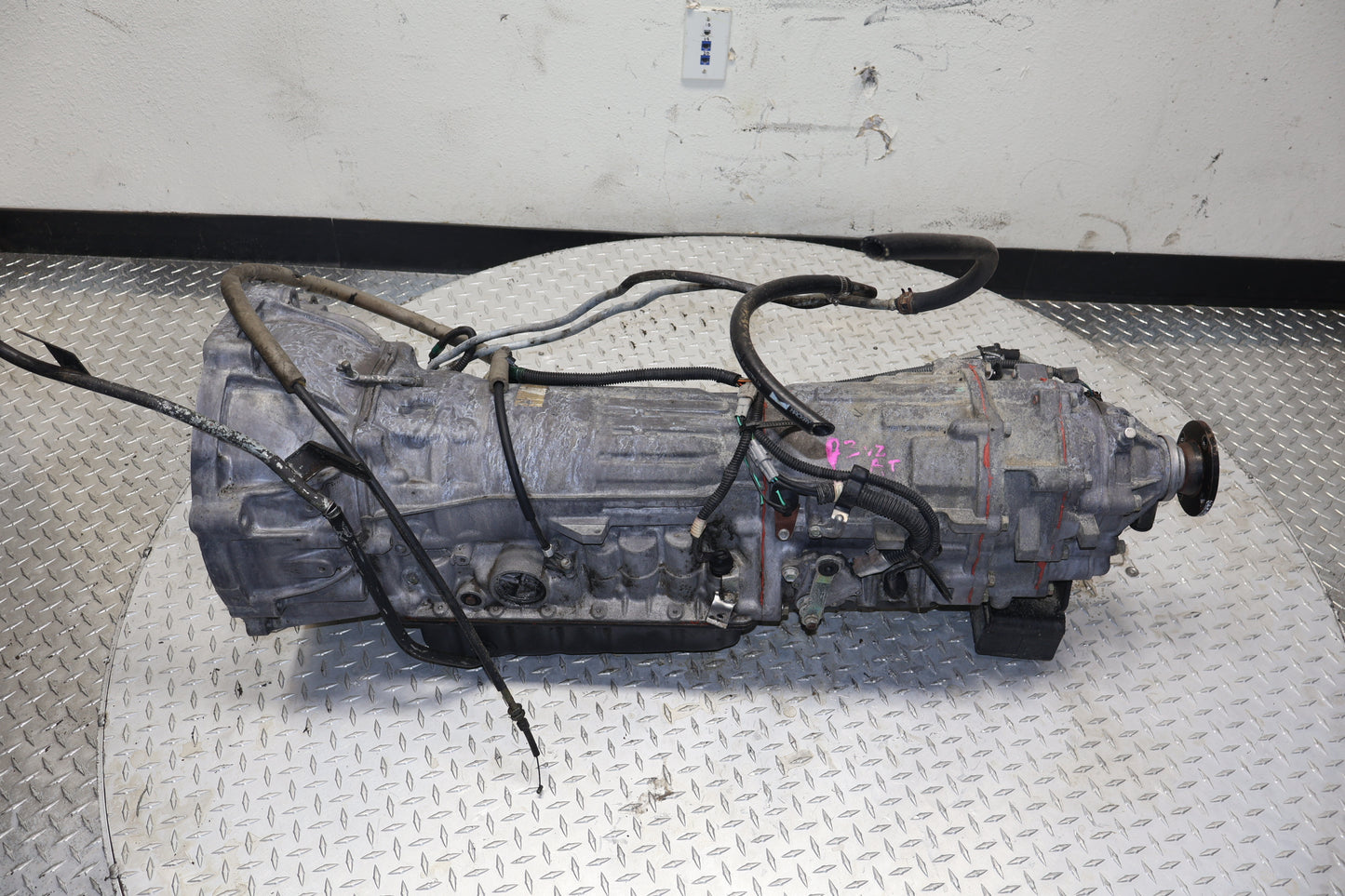

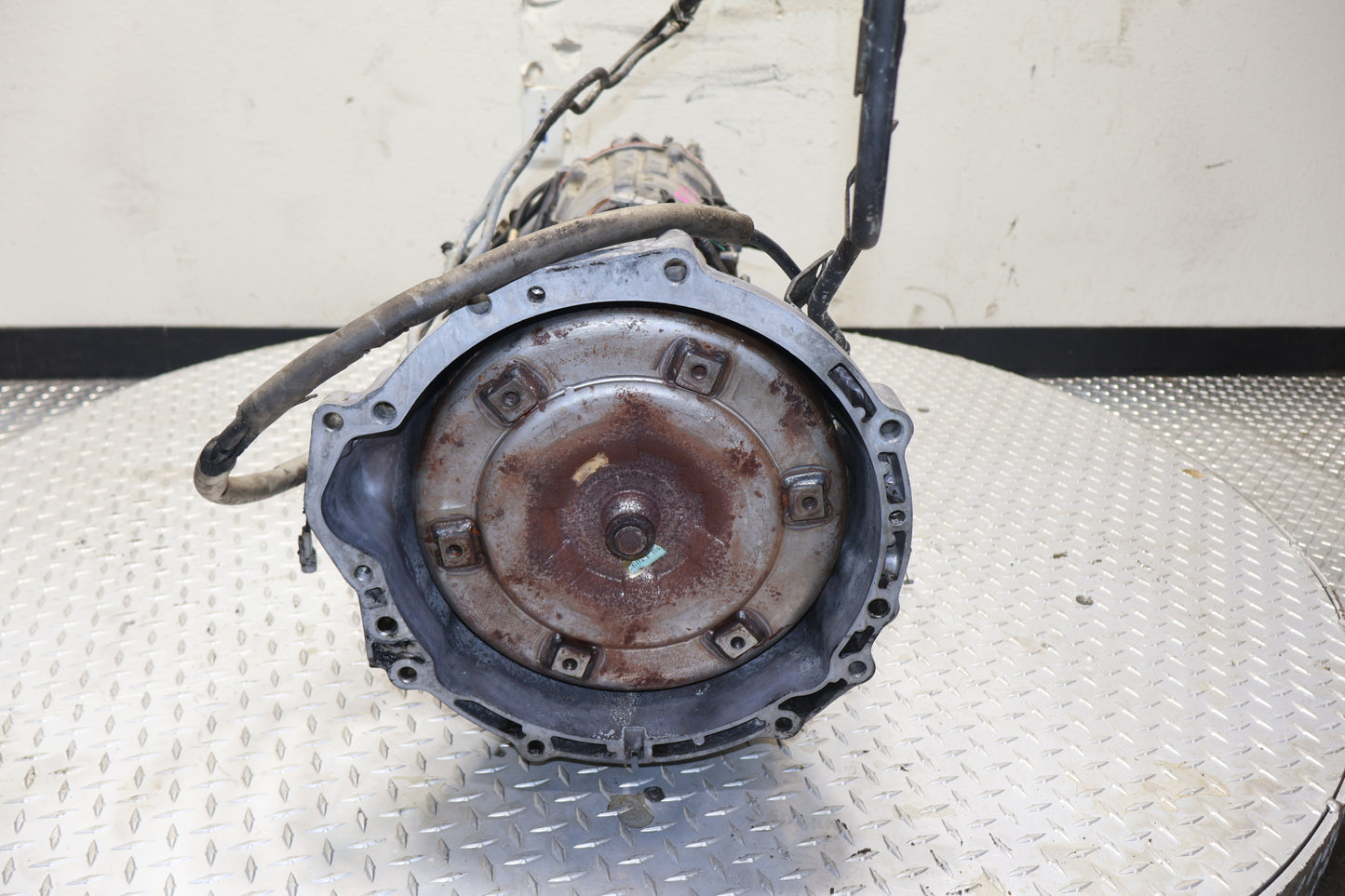

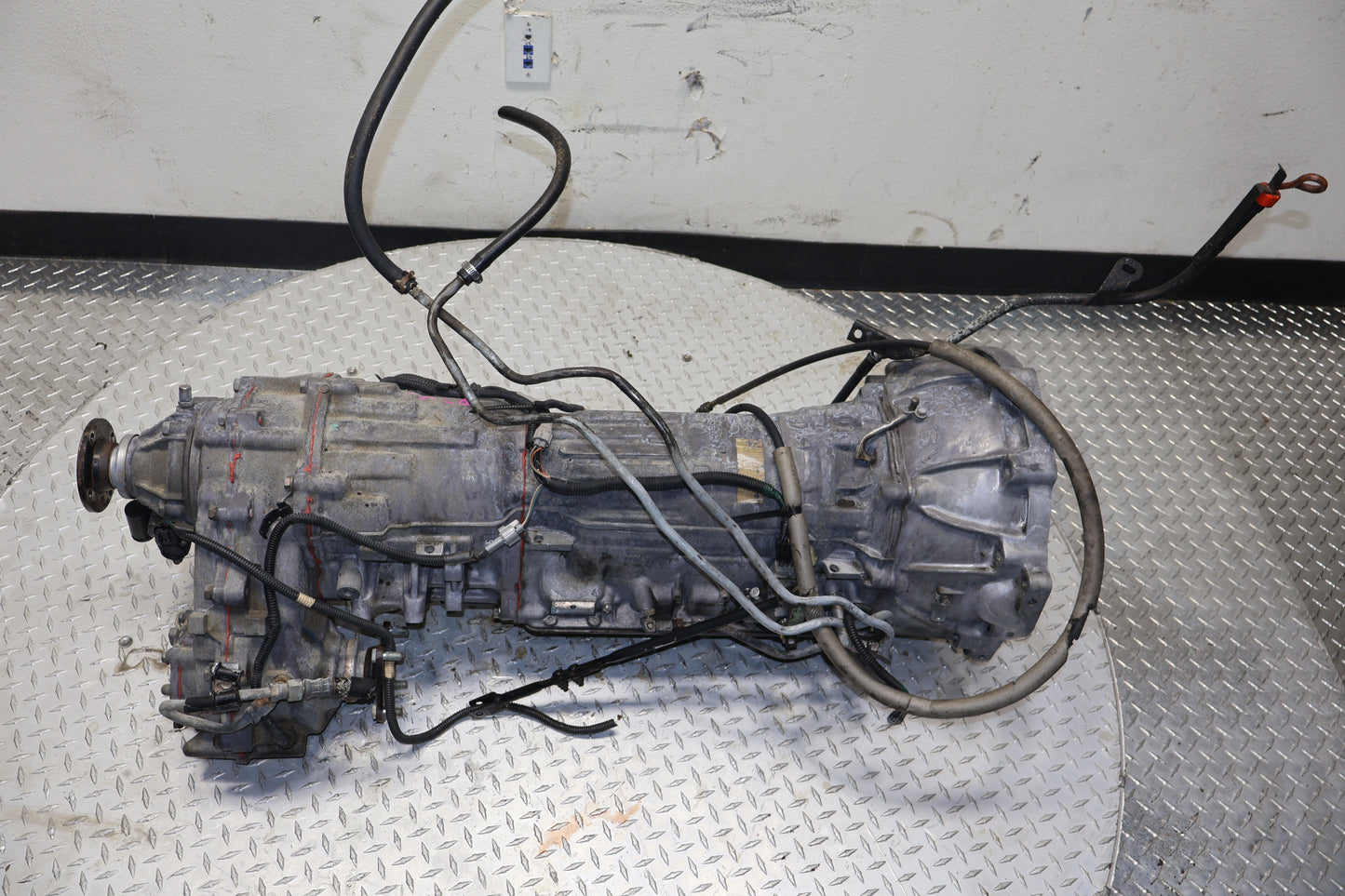

1988-1995 Toyota Pickup JDM 3VZ-E | 3.0L Automatic 4 Speed AWD Transmission A340H

In Stock 1 Left
Sale price $0
Regular price Save (0%)

Shop Now, Pay Later with Shop Pay

Shop now and pay later with Shop Pay. Split your purchase into easy monthly payments—no fees, no surprises.

Local Free Delivery

Enjoy fast and free local delivery within 30 Miles getting your parts to you quickly and securely.

Installation Available

Need help with installation? We offer expert installation services to ensure your parts are fitted correctly and efficiently.

Warranty

Warranty Purchase with confidence—our parts come with a 90-day warranty non performance & 30 day on performance to guarantee your satisfaction and peace of mind.

Product Information

1988-1995 Toyota Pickup JDM 3VZ-E | 3.0L Automatic 4 Speed AWD Transmission A340H

Technical & Fitment Specifications

  • Transmission Code: A340H (Aisin-Warner 30-43LE)

  • Engine Compatibility: Toyota 3VZ-E (3.0L SOHC 12-Valve V6)

  • Configuration: Automatic 4-Speed Overdrive with Electronically Controlled Transmission (ECT)

  • Drivetrain Layout: 4WD / AWD with integrated hydraulic transfer case

  • Applicable Years: 1988–1995 Toyota Pickup (Hilux) and 1990–1995 Toyota 4Runner (Hilux Surf)

Essential Installation Notes

  • Fluid System Notice: The A340H utilizes a shared hydraulic fluid system between the transmission assembly and the transfer case. Standard drain-and-fill procedures require checking both separate fluid reservoirs to ensure proper operating levels.

  • Wiring Requirements: For JDM-sourced replacements or conversions, ensure matching plugs for the Electronically Controlled Transmission (ECT) solenoids and speed sensors, as differences exist between early (1988–1991) and late (1992–1995) model years.
