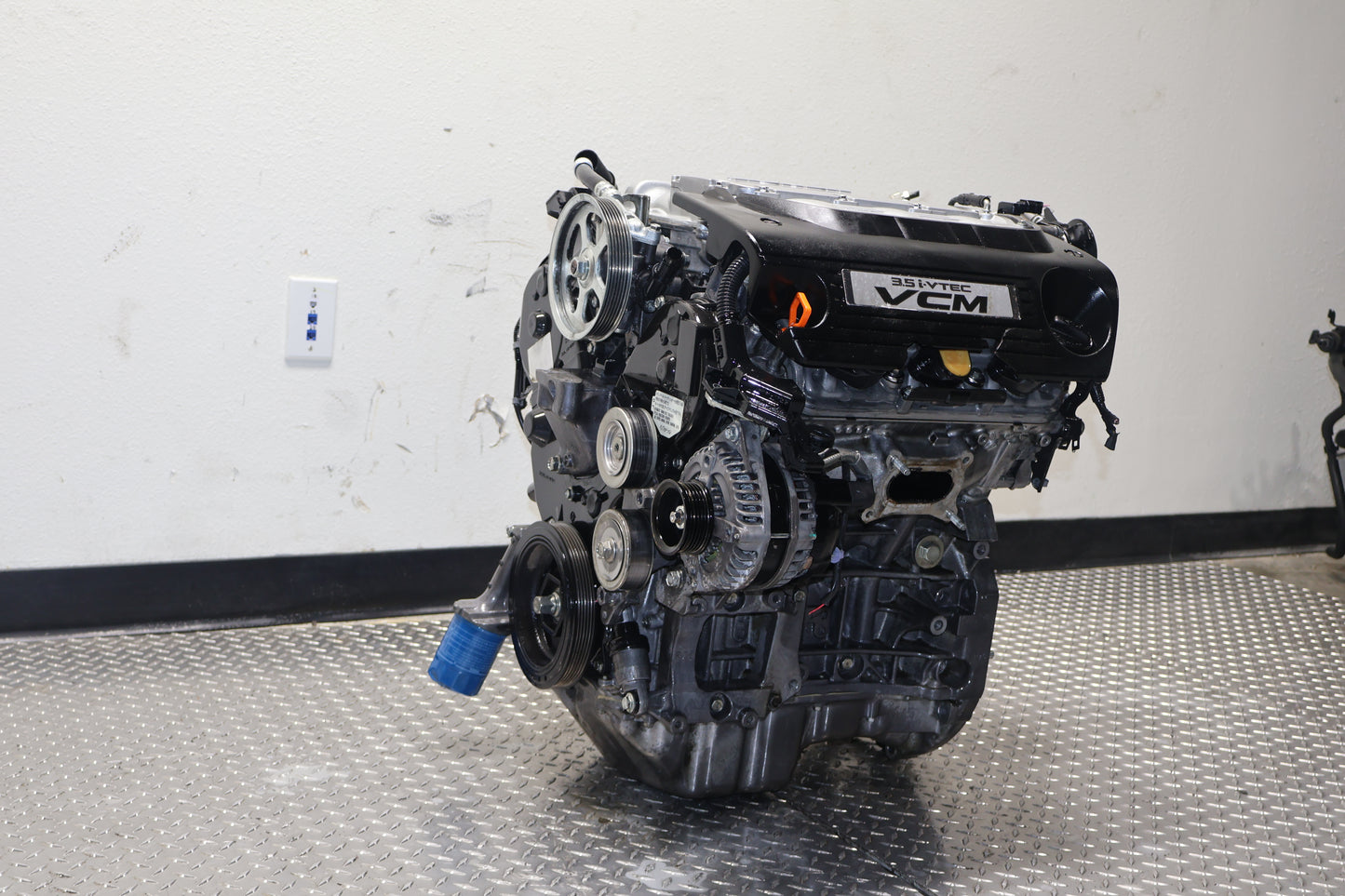

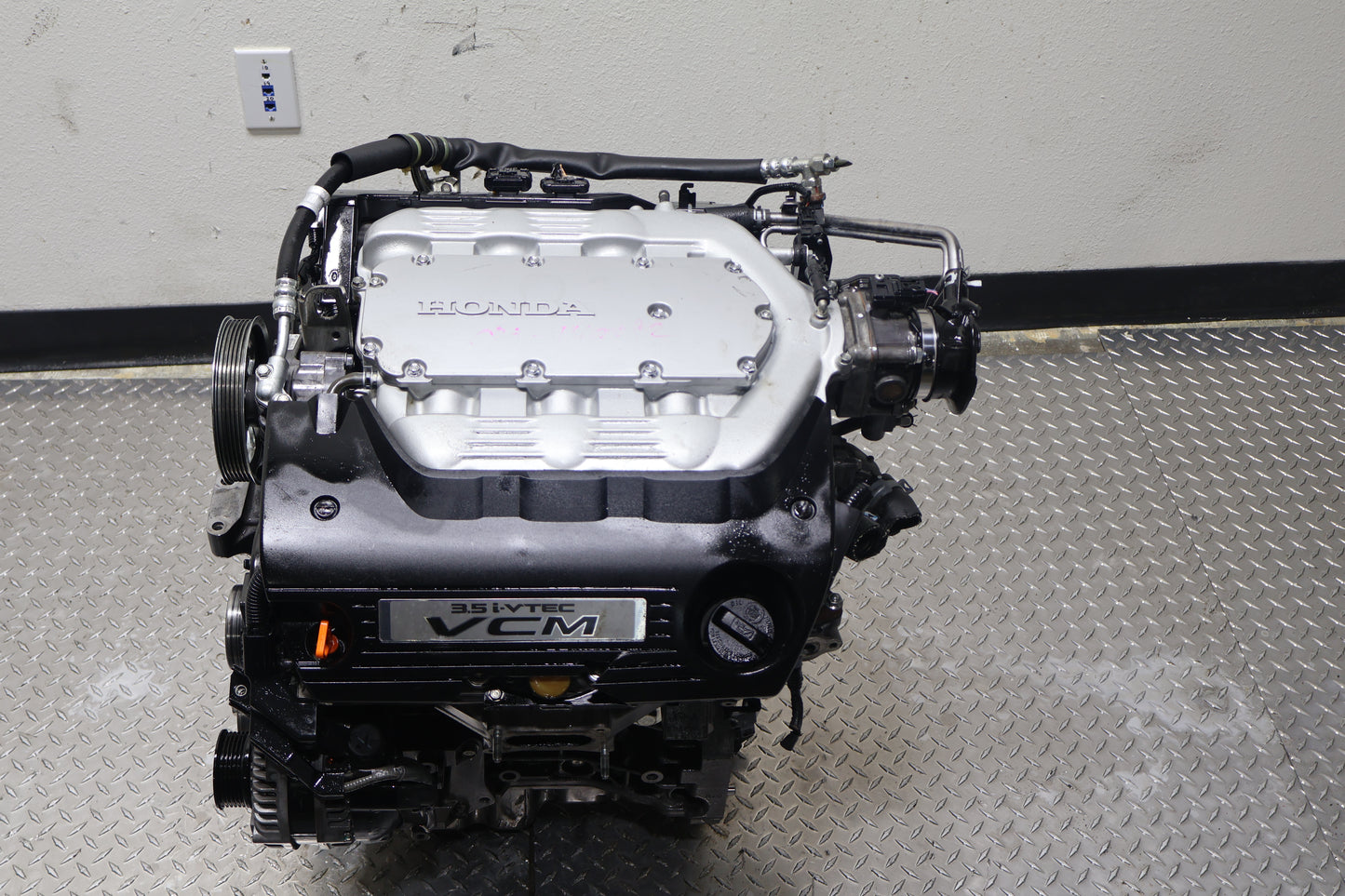

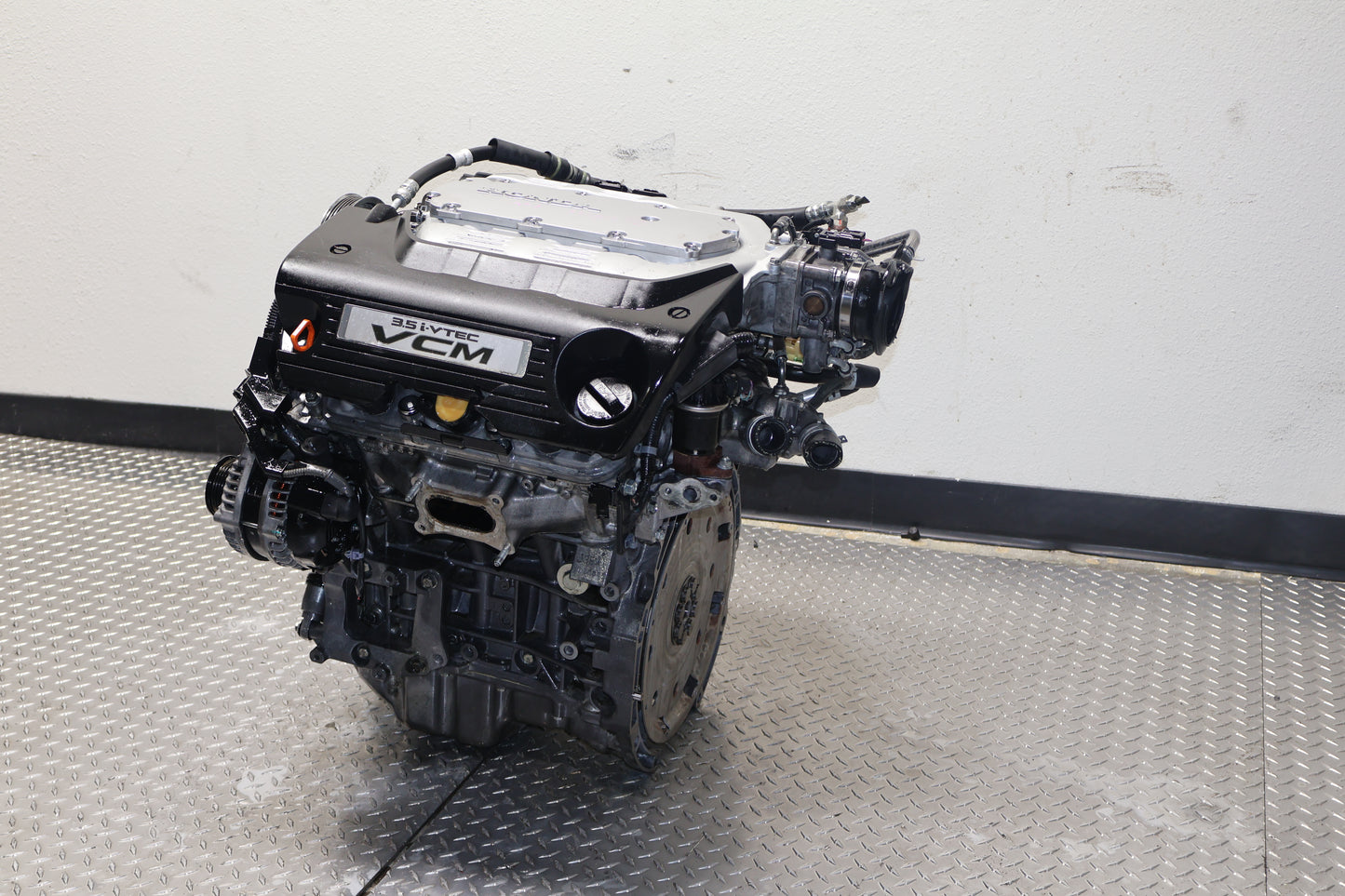

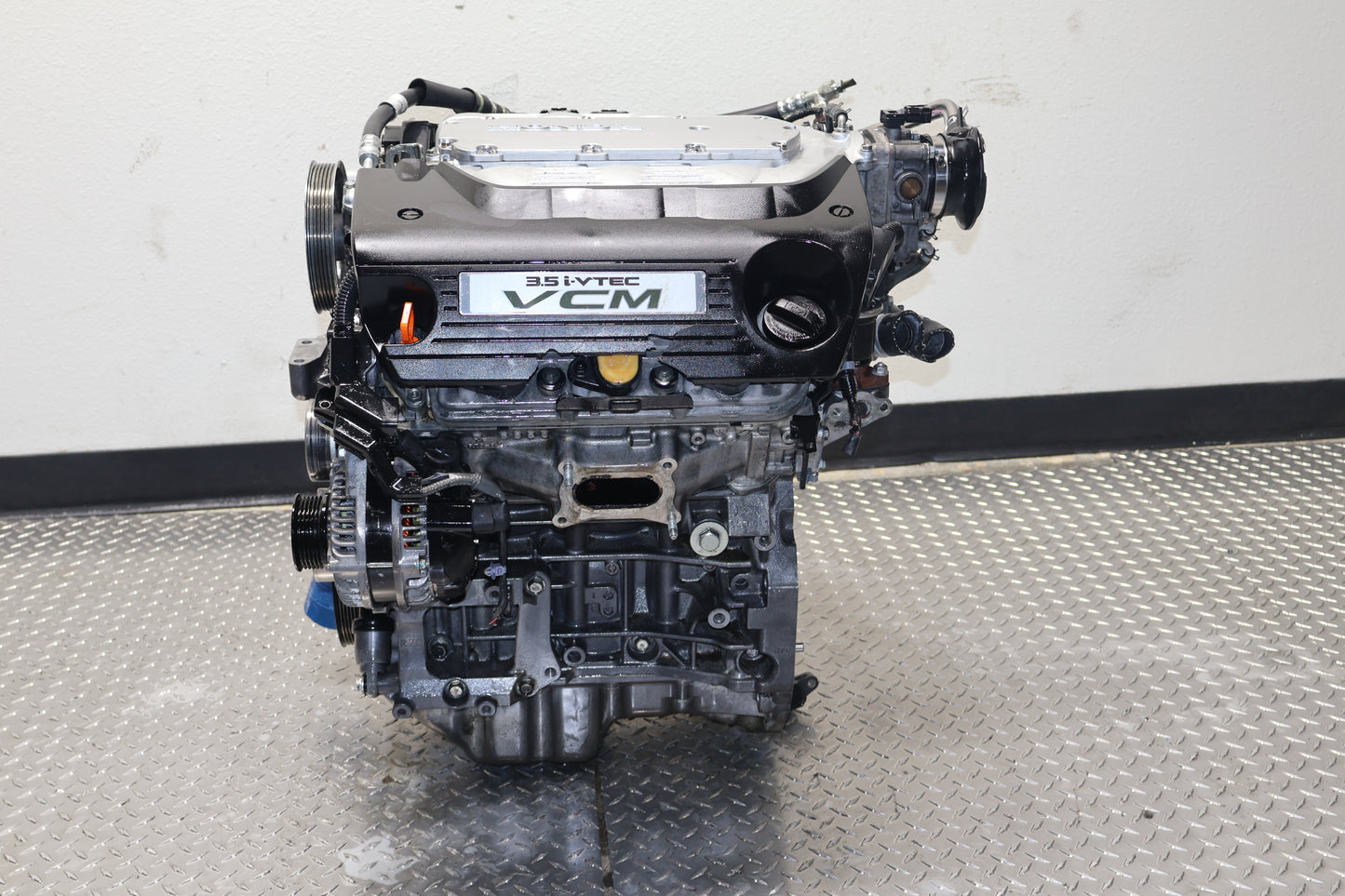

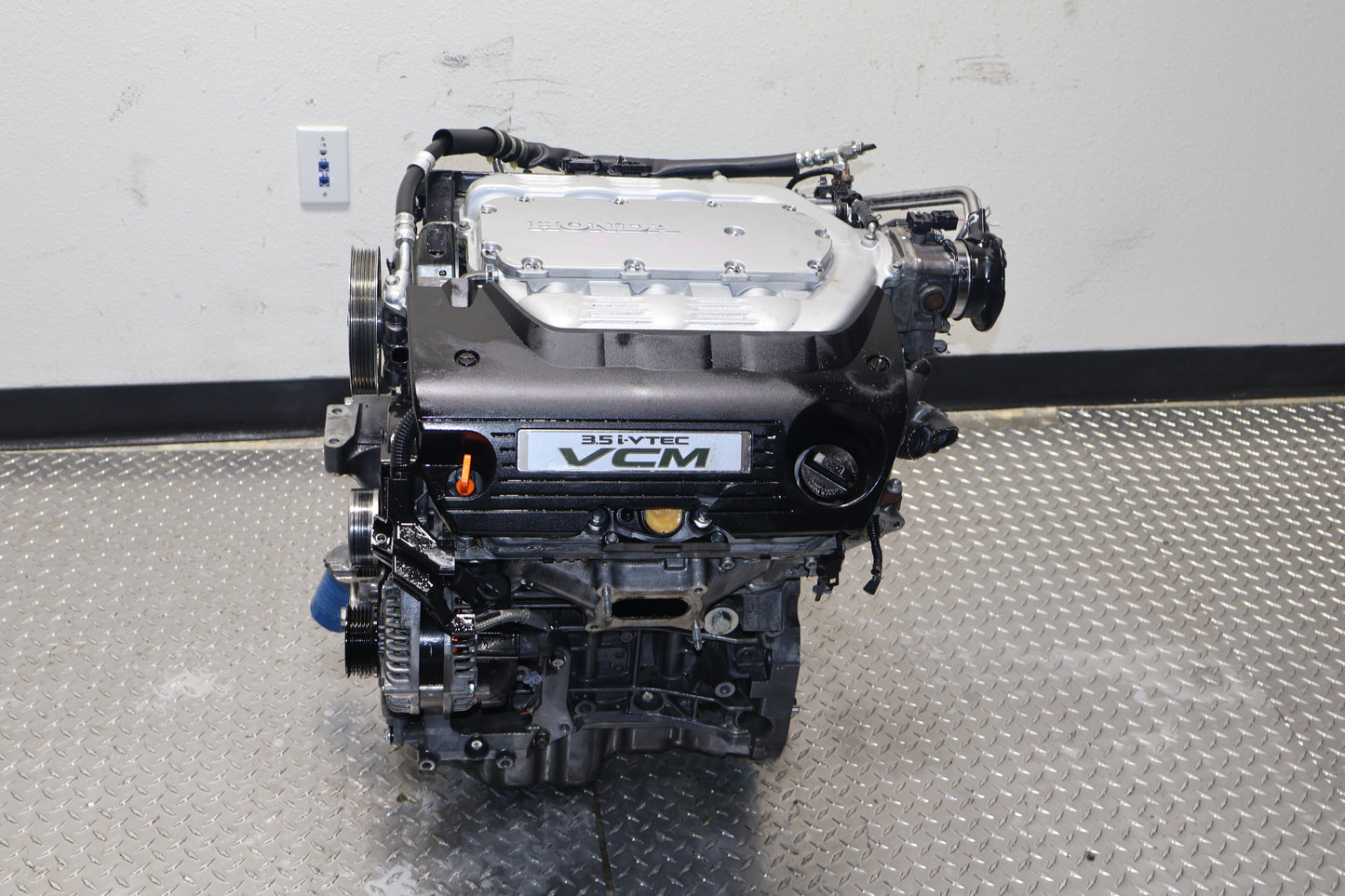

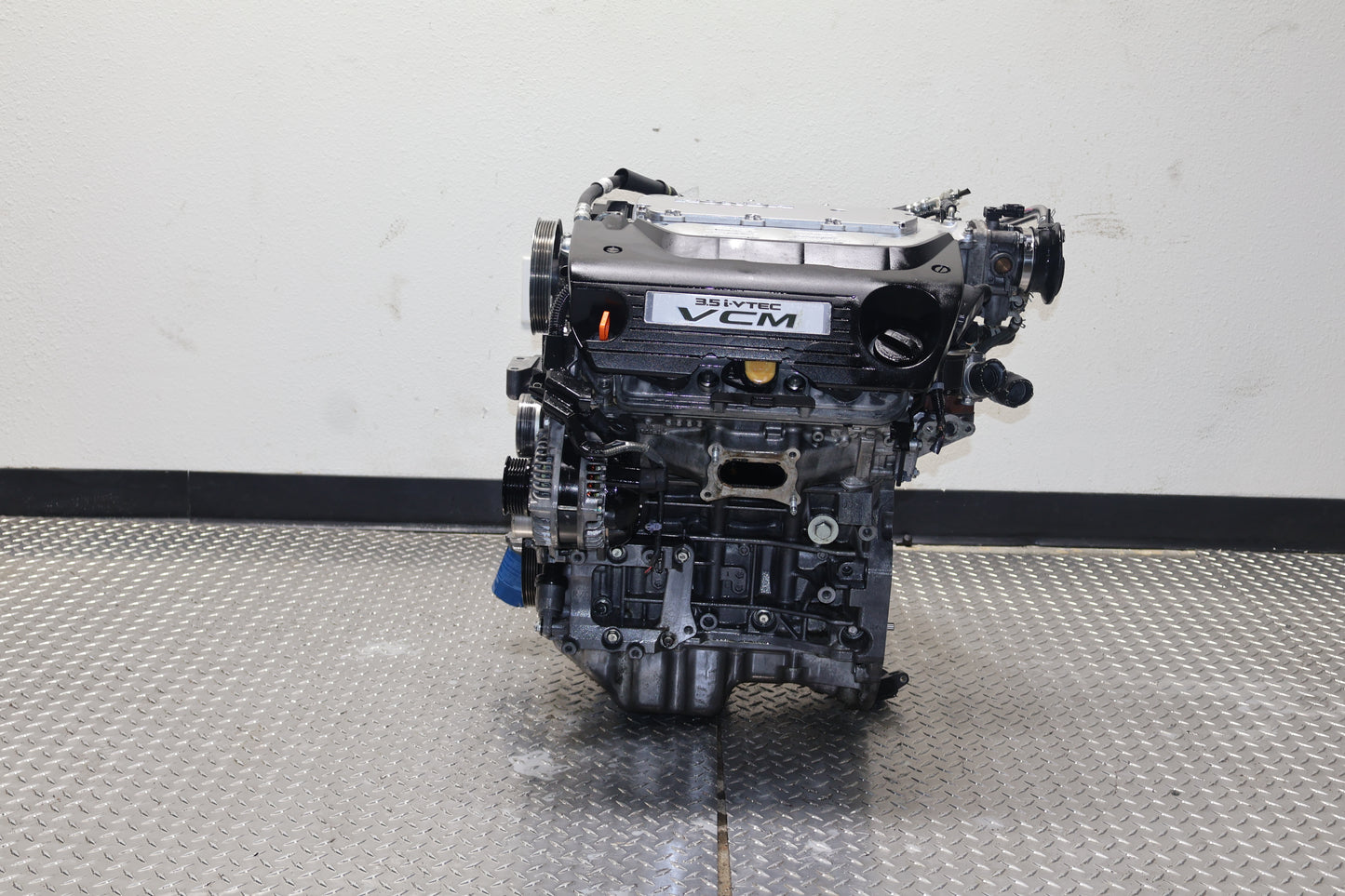

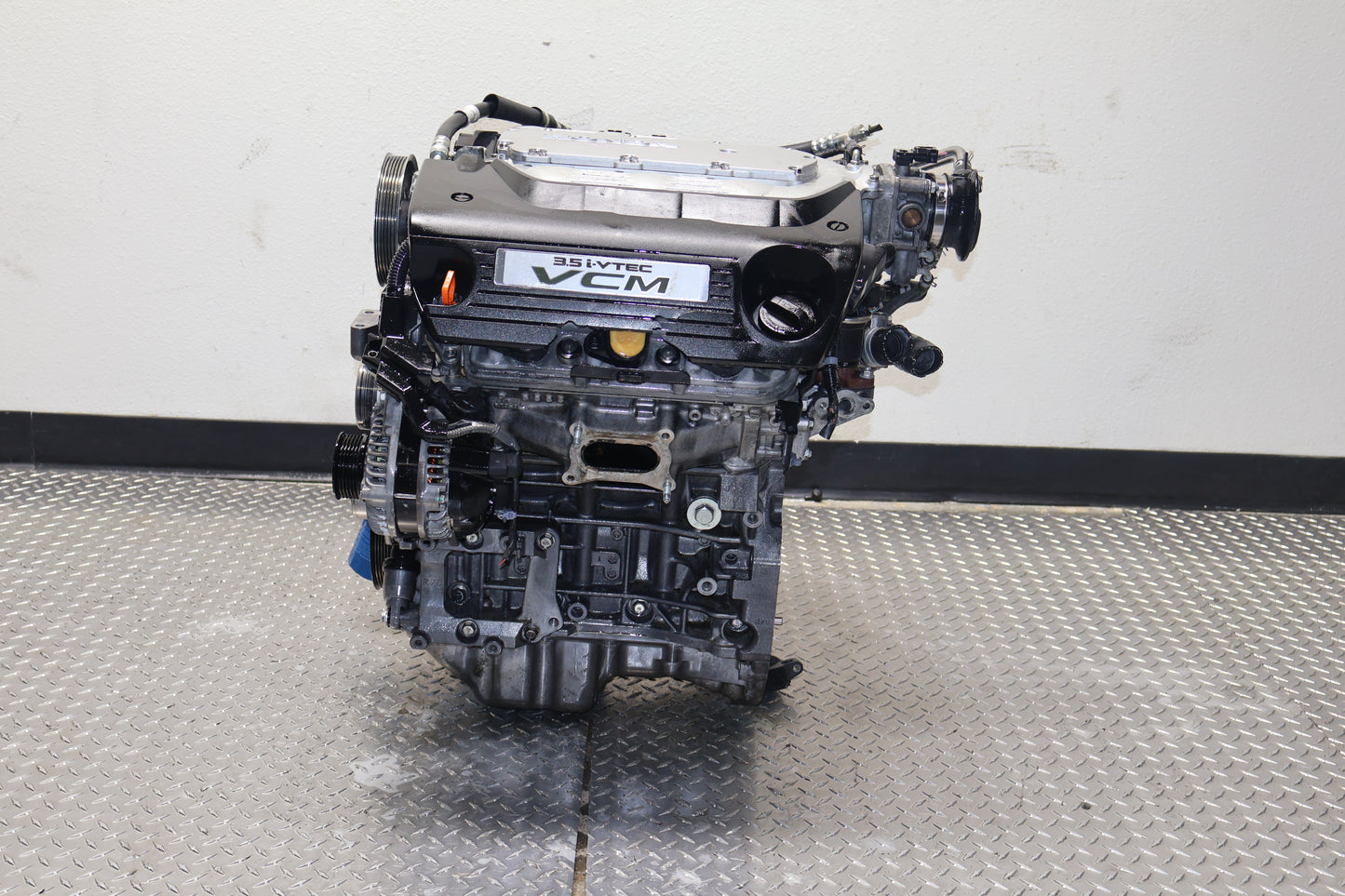

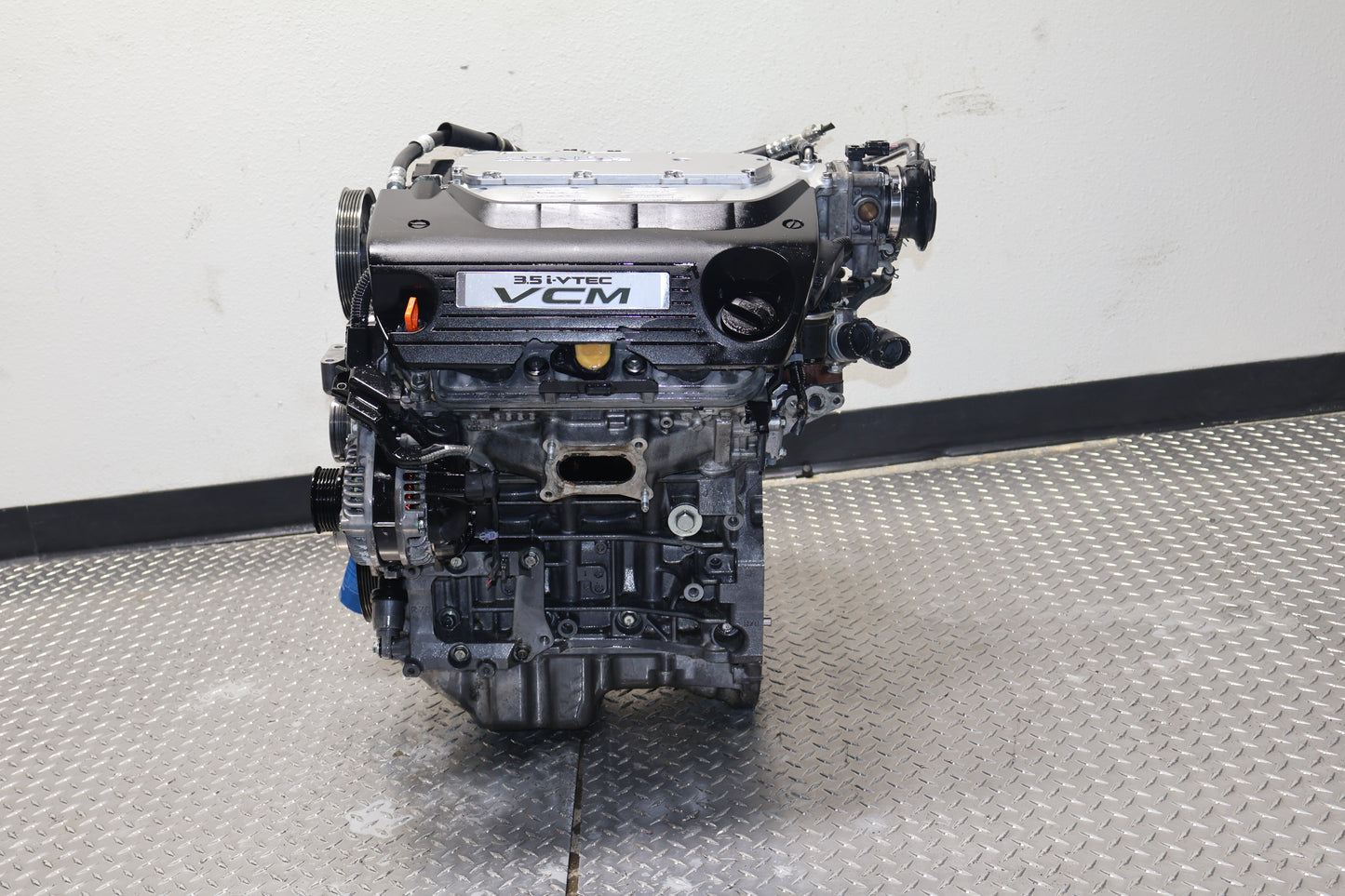

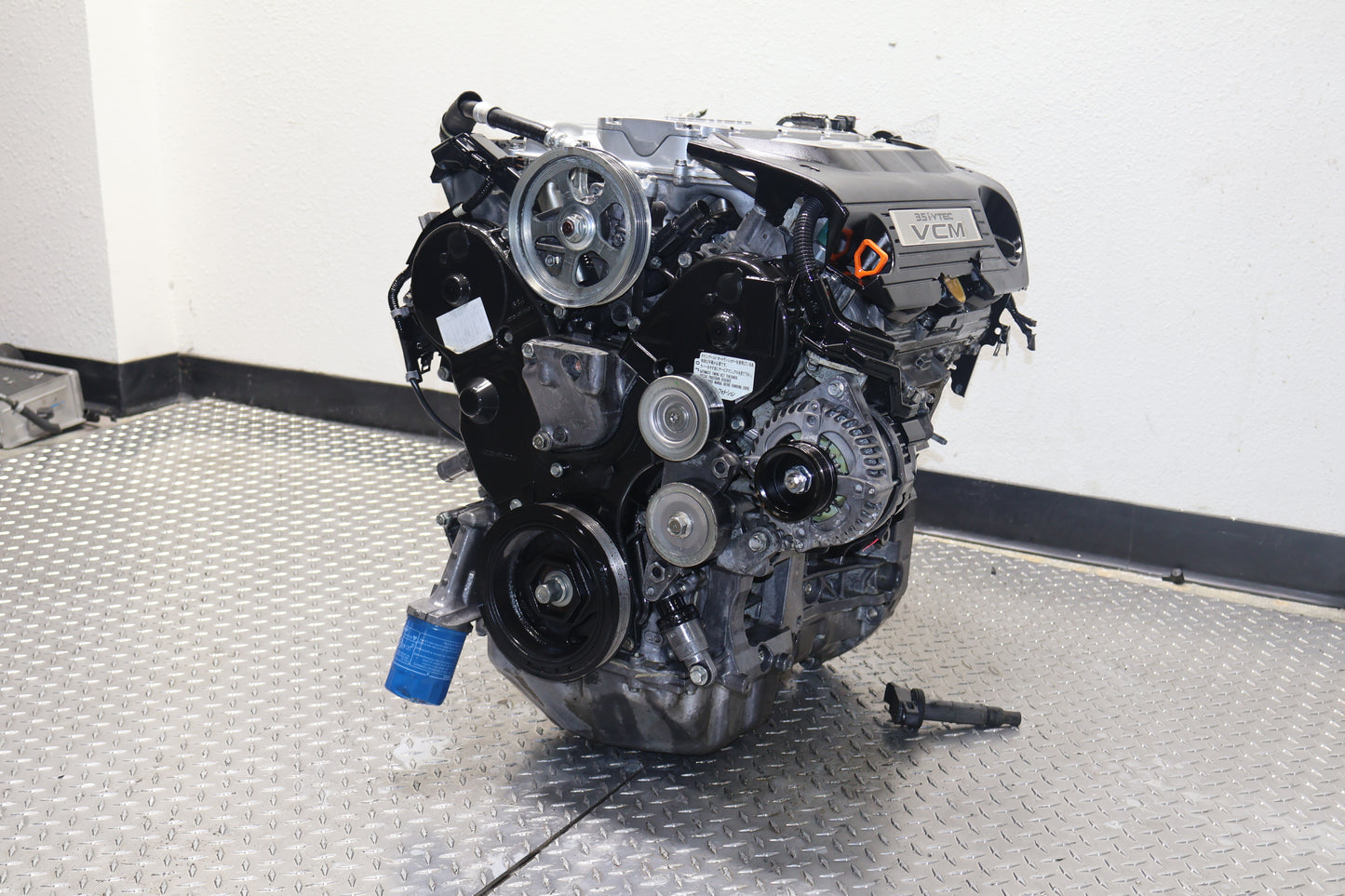

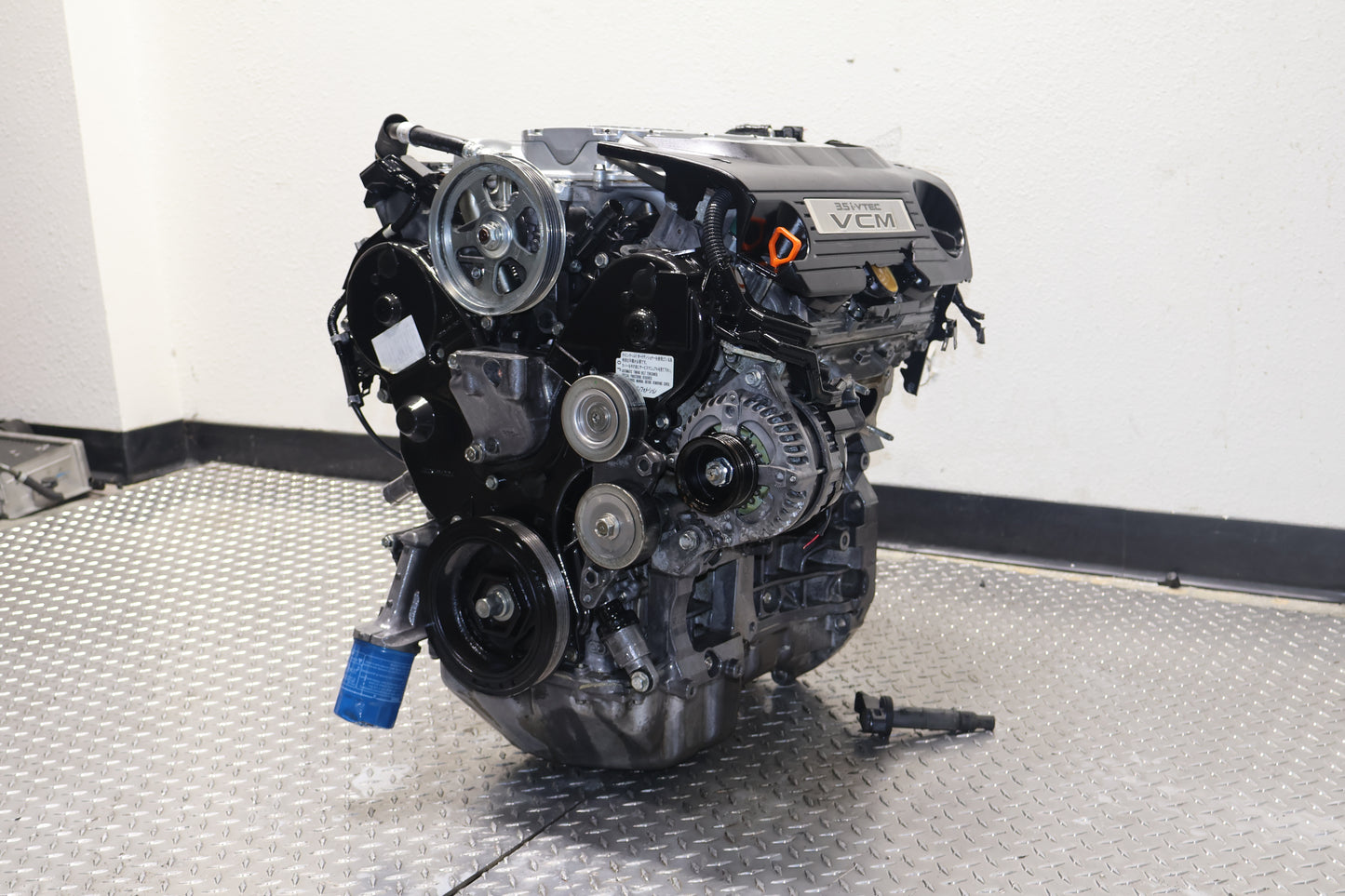

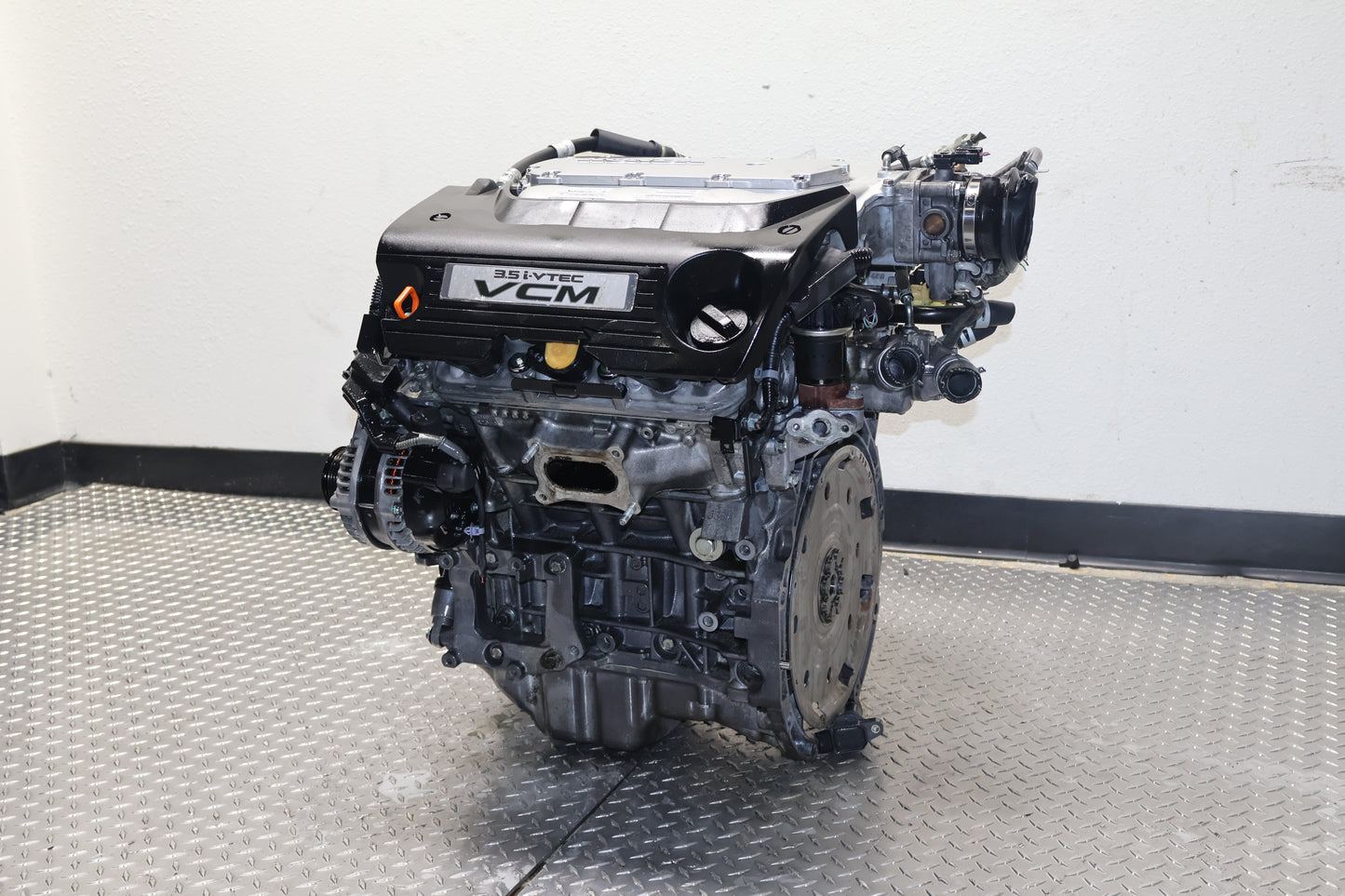

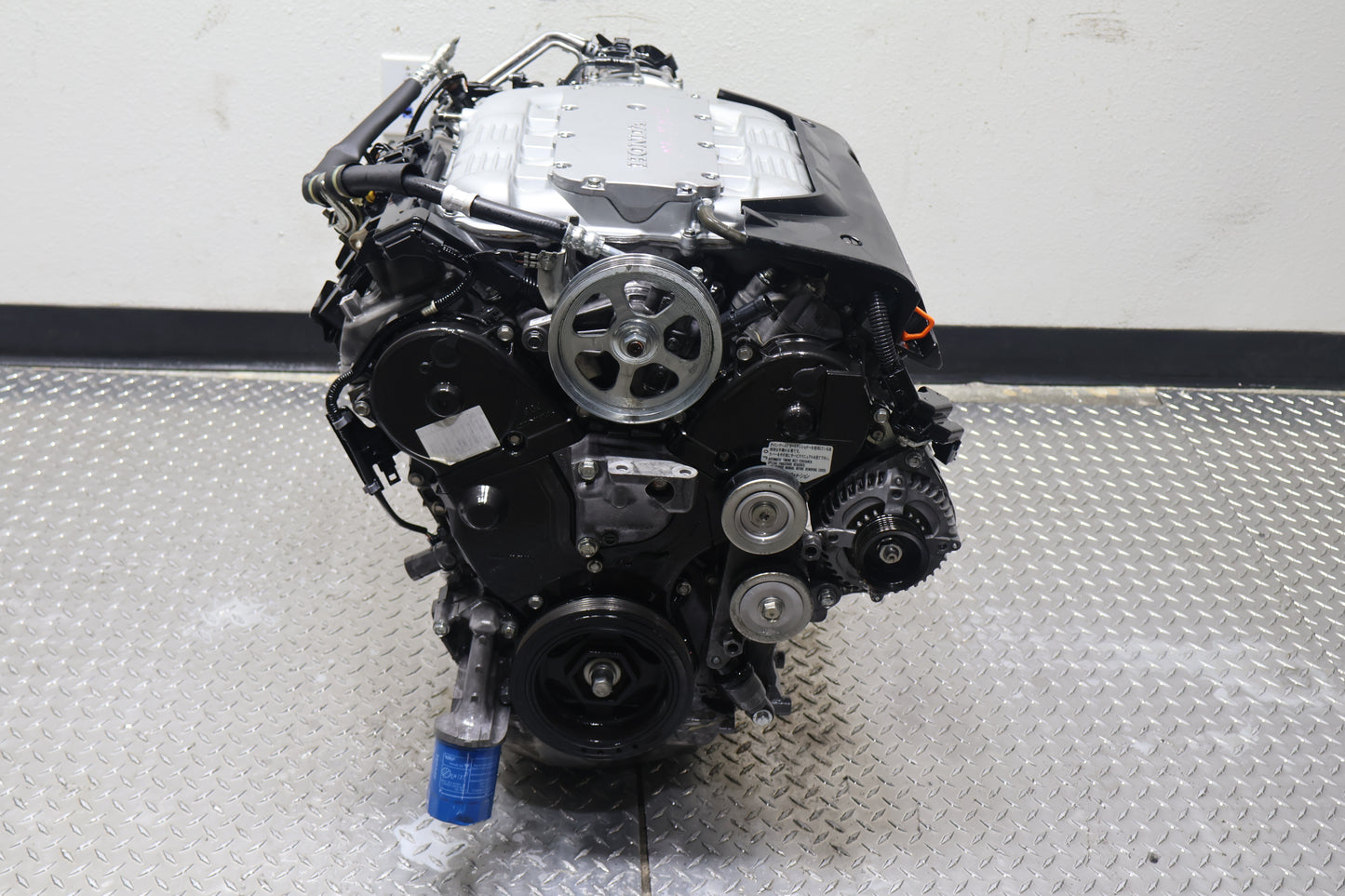

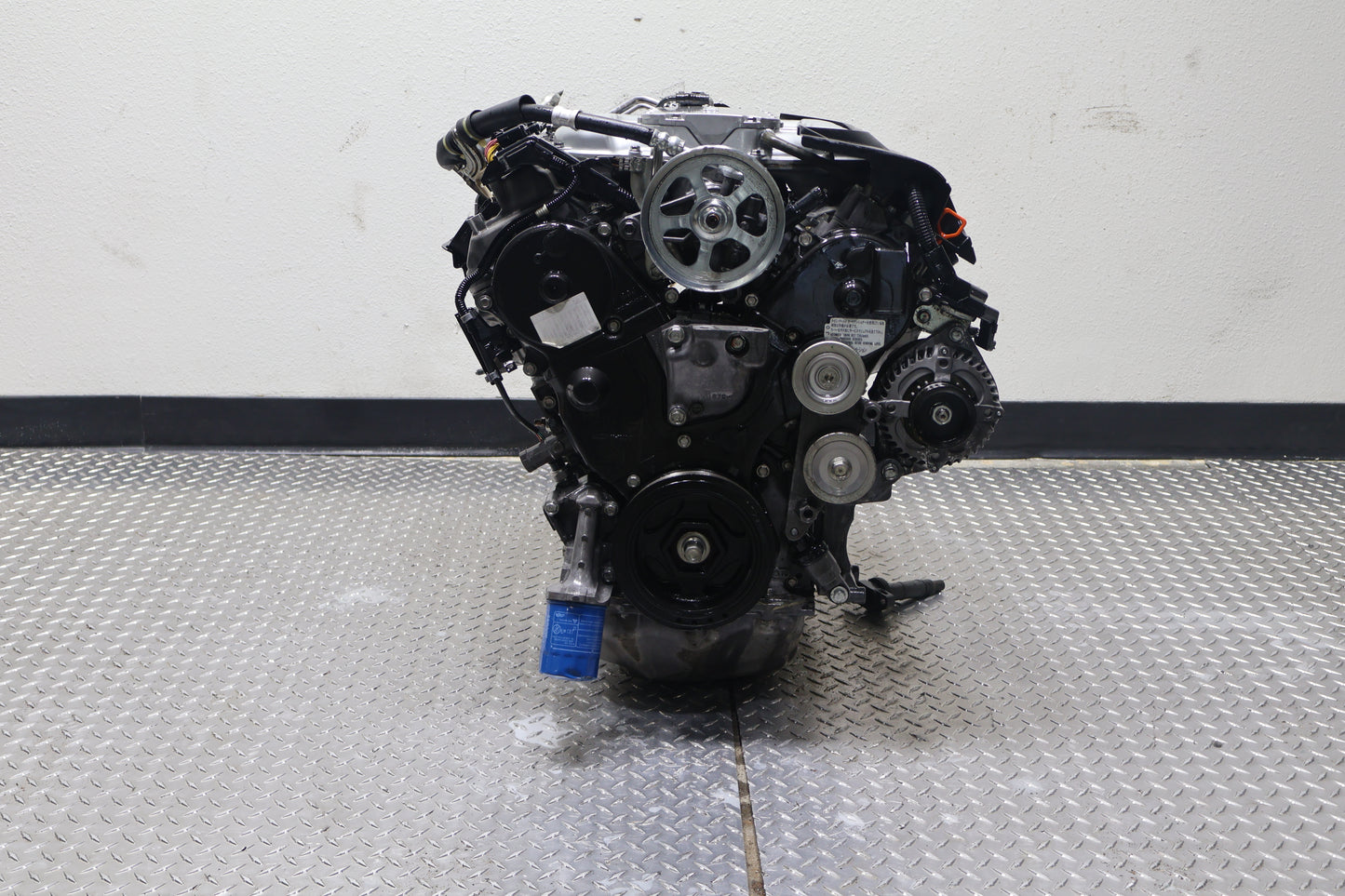

2011 2012 2013 2014 Honda Odyssey EX-L 3.5L V6 SOHC i-VTEC VCM Engine JDM J35A J35Z8

Vehicle Fitment

This engine serves as a direct long-block replacement for the following North American models:

• Honda Odyssey (EX-L, Touring, Elite): 2011, 2012, 2013, 2014 (VCM-equipped)

• Compatibility Note: This is the VCM-equipped engine. If you are replacing an engine in an Odyssey trim that does not use VCM (standard EX or LX in certain regions), verify your cylinder head configuration before purchase.

JDM to USDM Installation & Swap Guide

To ensure 100% compatibility and maintain your Odyssey’s advanced electronics and emissions status, professional technicians recommend the following "External Swap" steps:

1. Intake & Exhaust Manifolds: You must transfer your original USDM Intake Manifold and Exhaust Manifolds. JDM versions may have different vacuum port layouts and lack specific sensors required for North American OBDII and emissions compliance.

2. Wiring Harness: Always retain and use your original USDM Engine Wiring Harness. JDM harnesses are configured for right-hand drive (RHD) and will not interface with your Odyssey’s chassis bulkheads or ECU location.

3. Engine Sensors: Transfer your original USDM Camshaft, Crankshaft, and Knock Sensors. Honda electronics are highly sensitive; using your original "known-good" sensors prevents intermittent signal issues or Check Engine Light codes.
