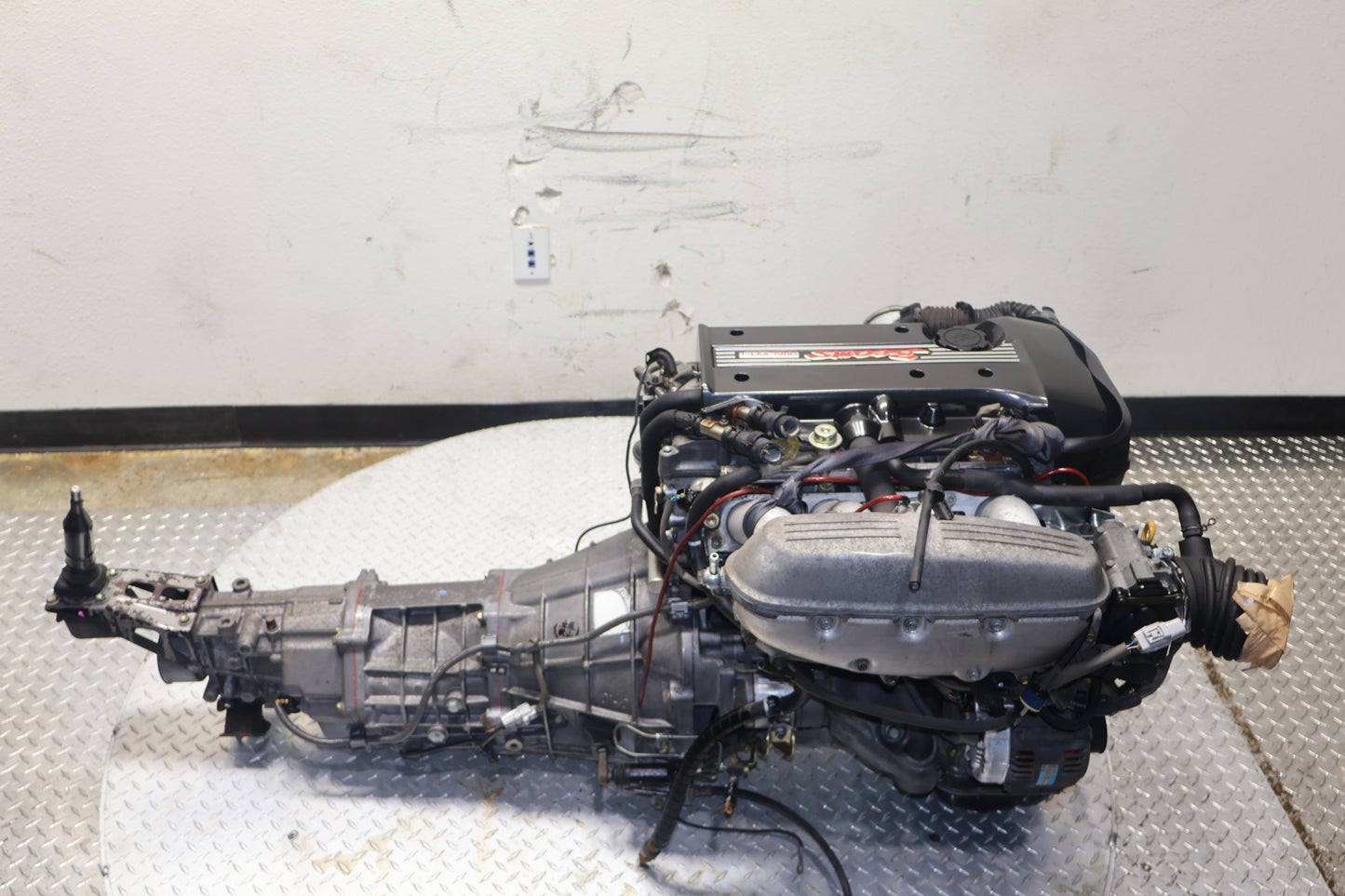

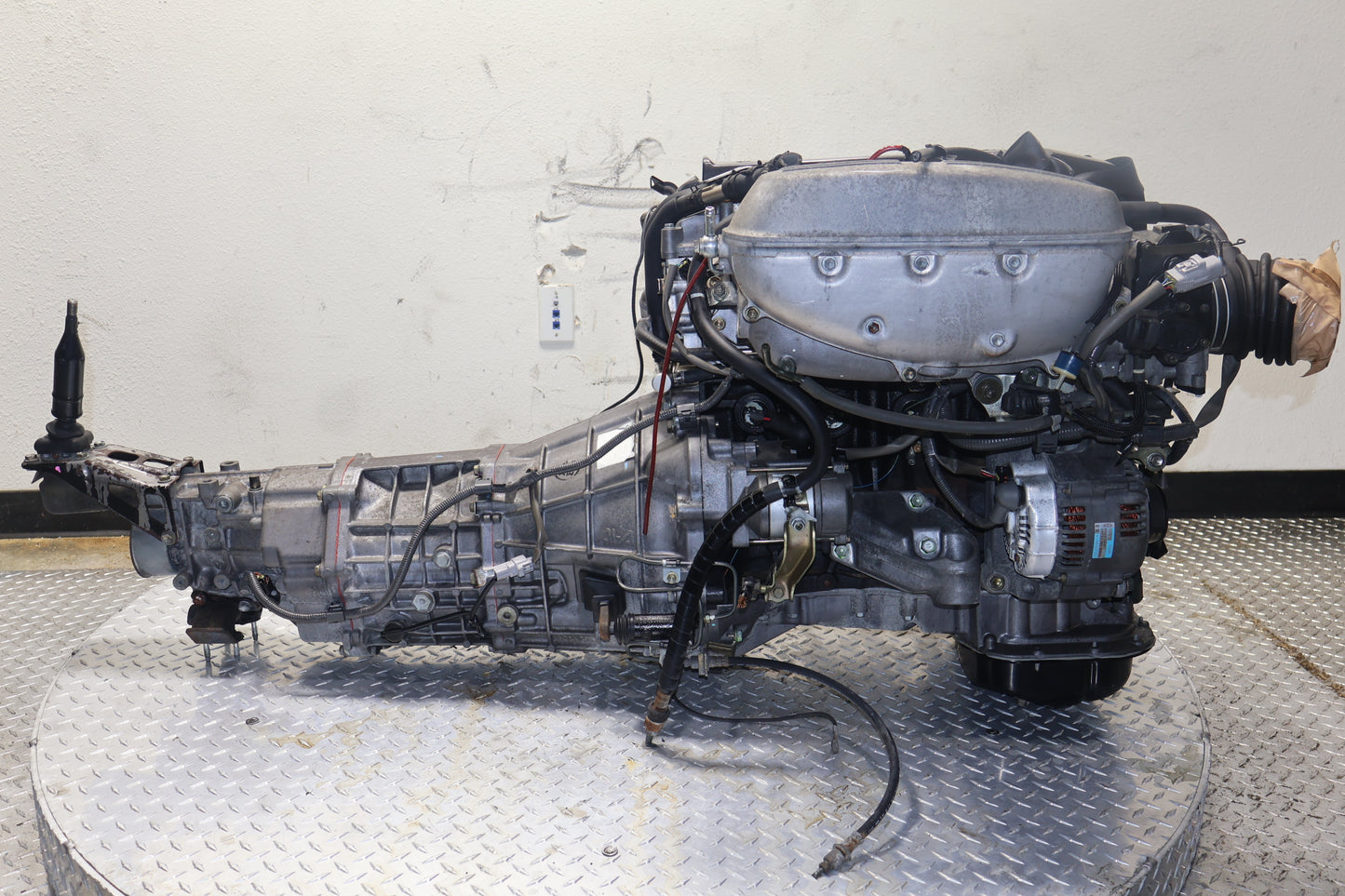

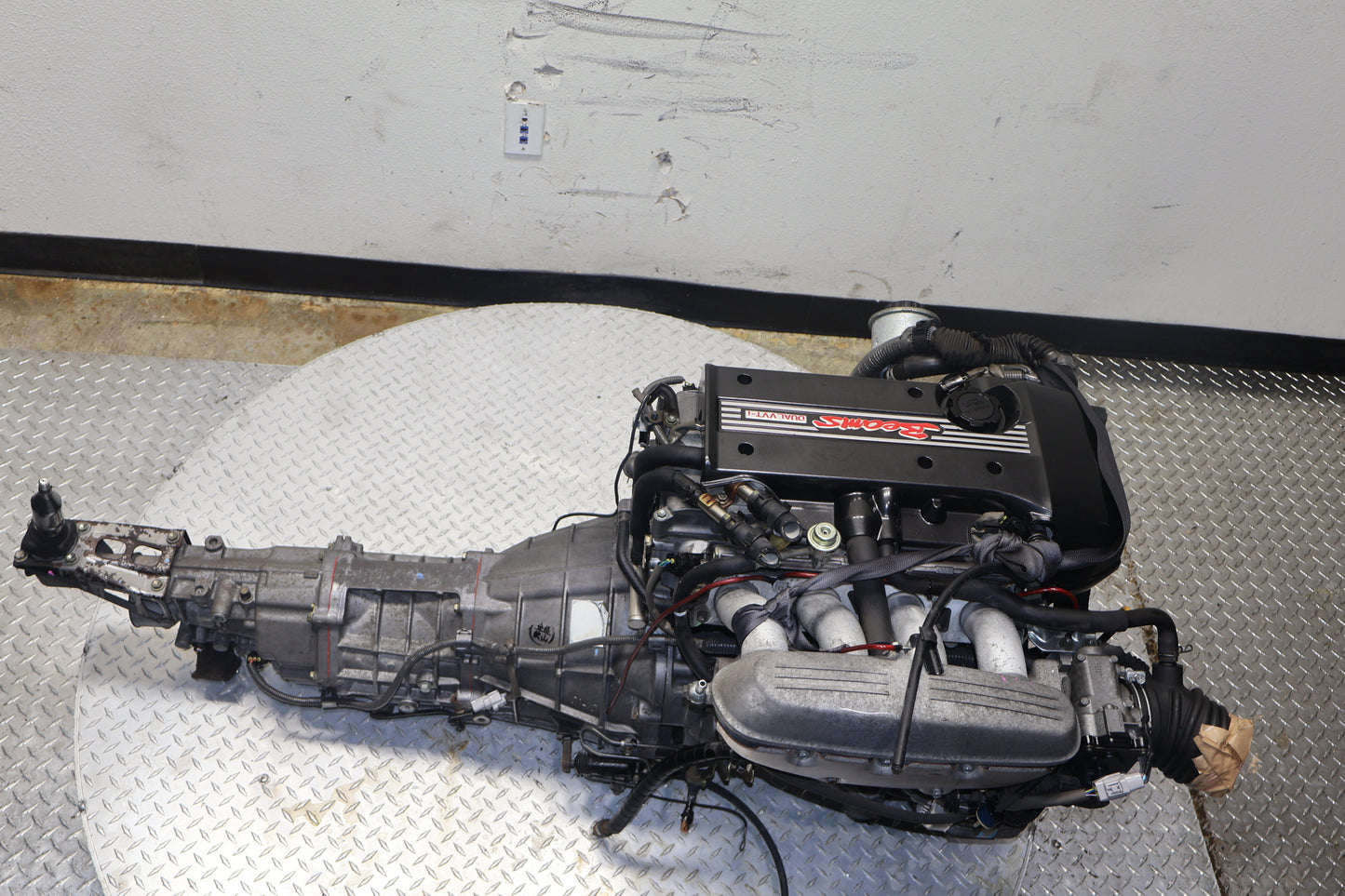

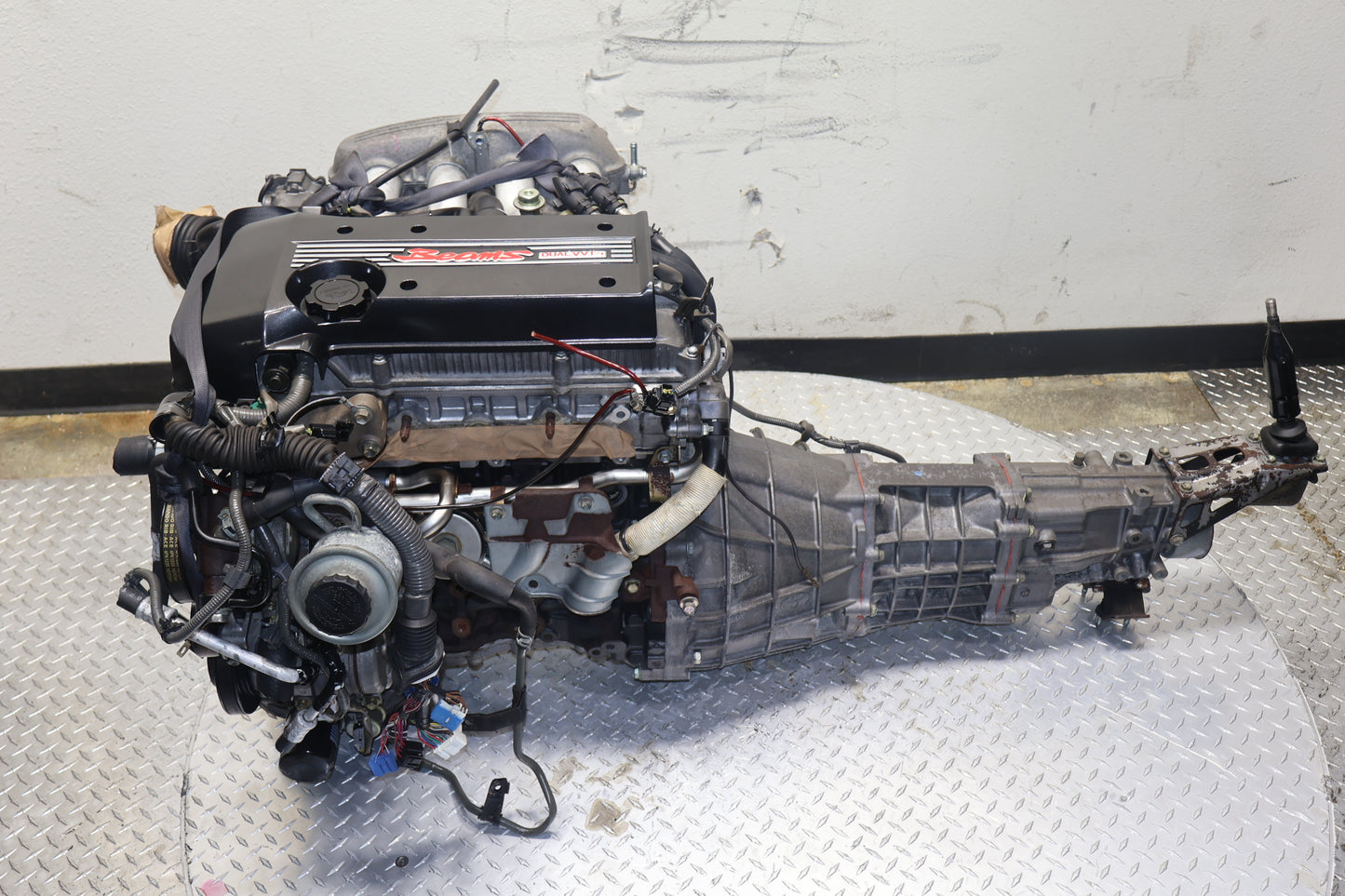

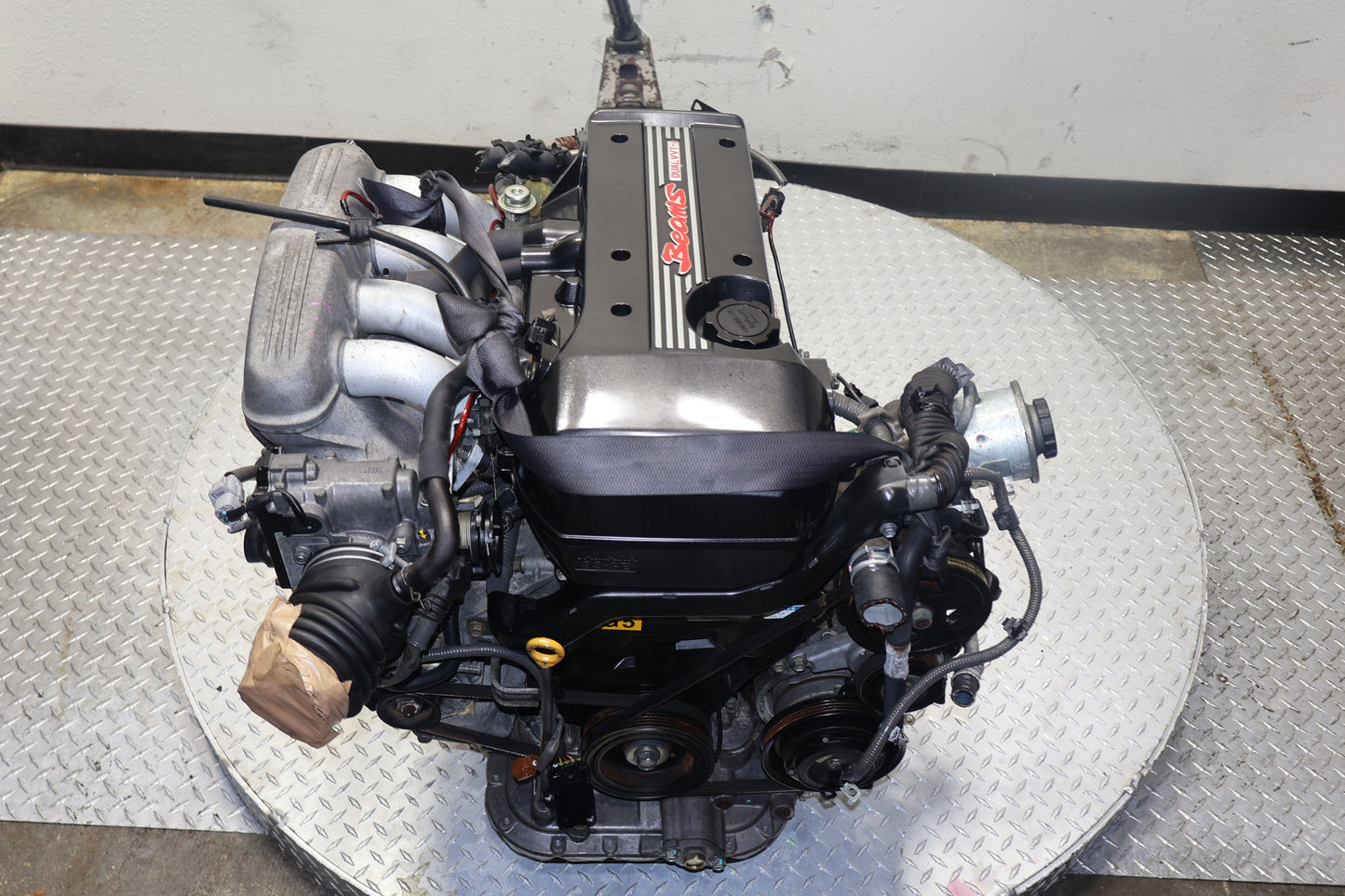

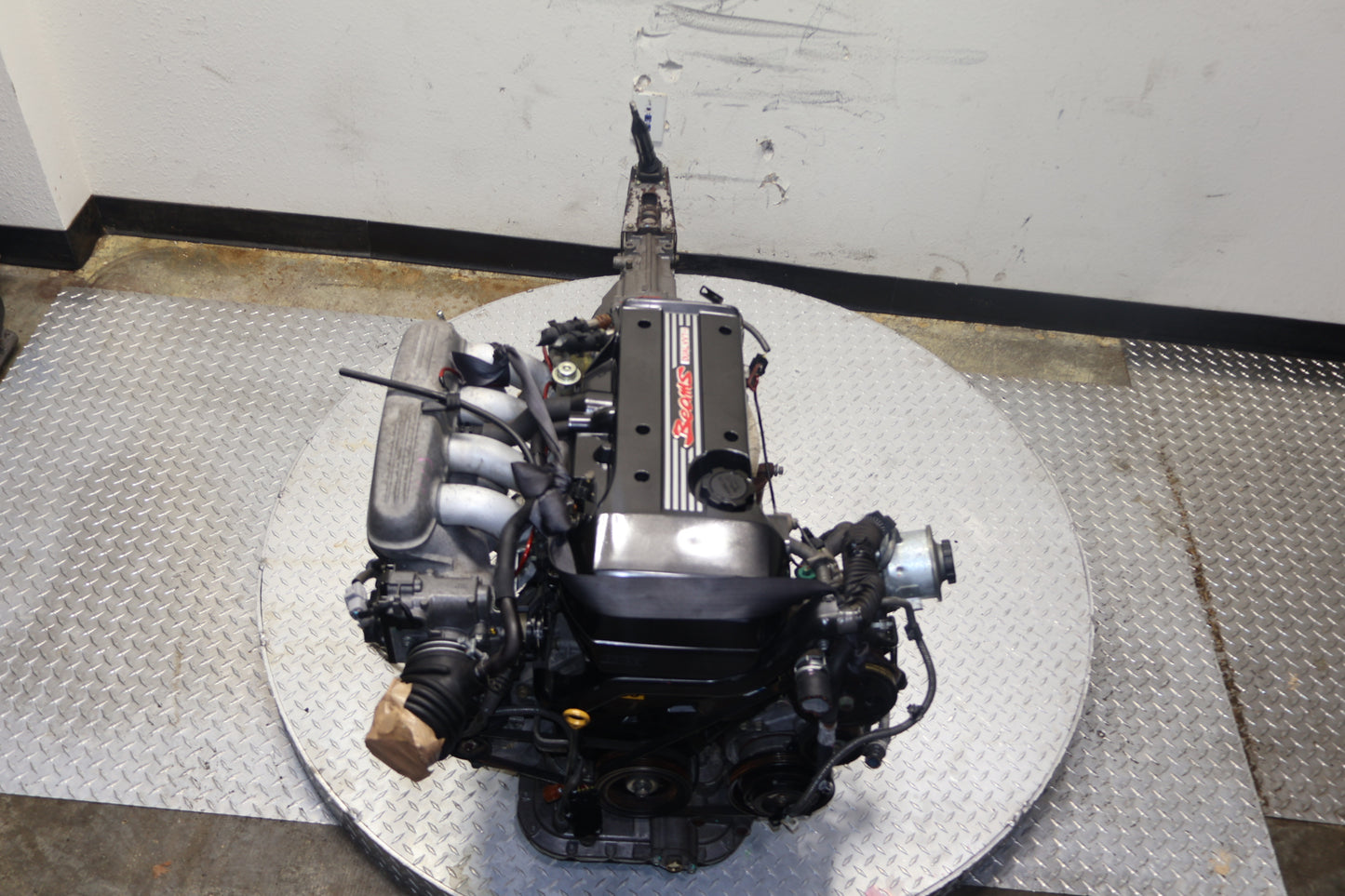

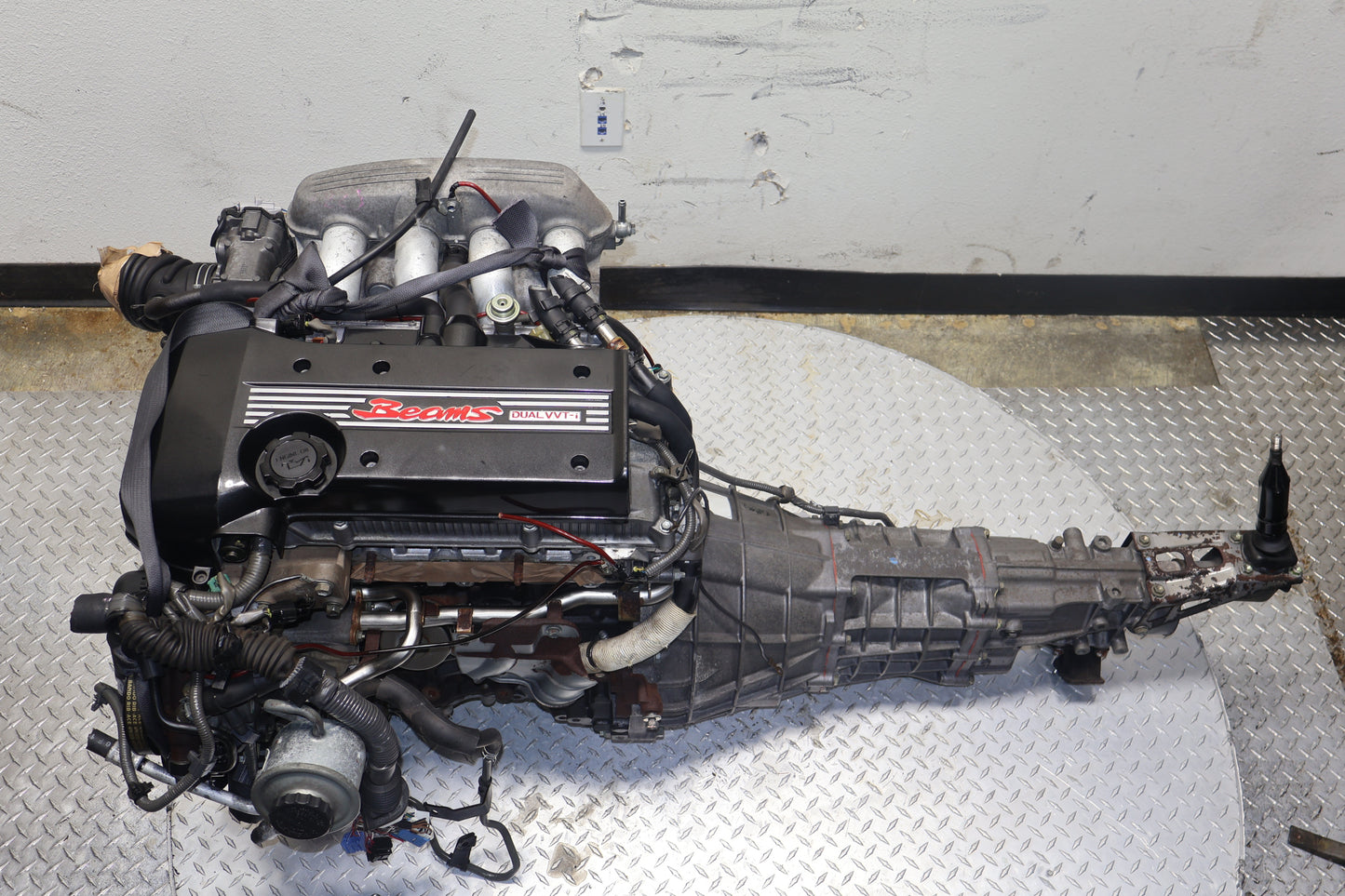

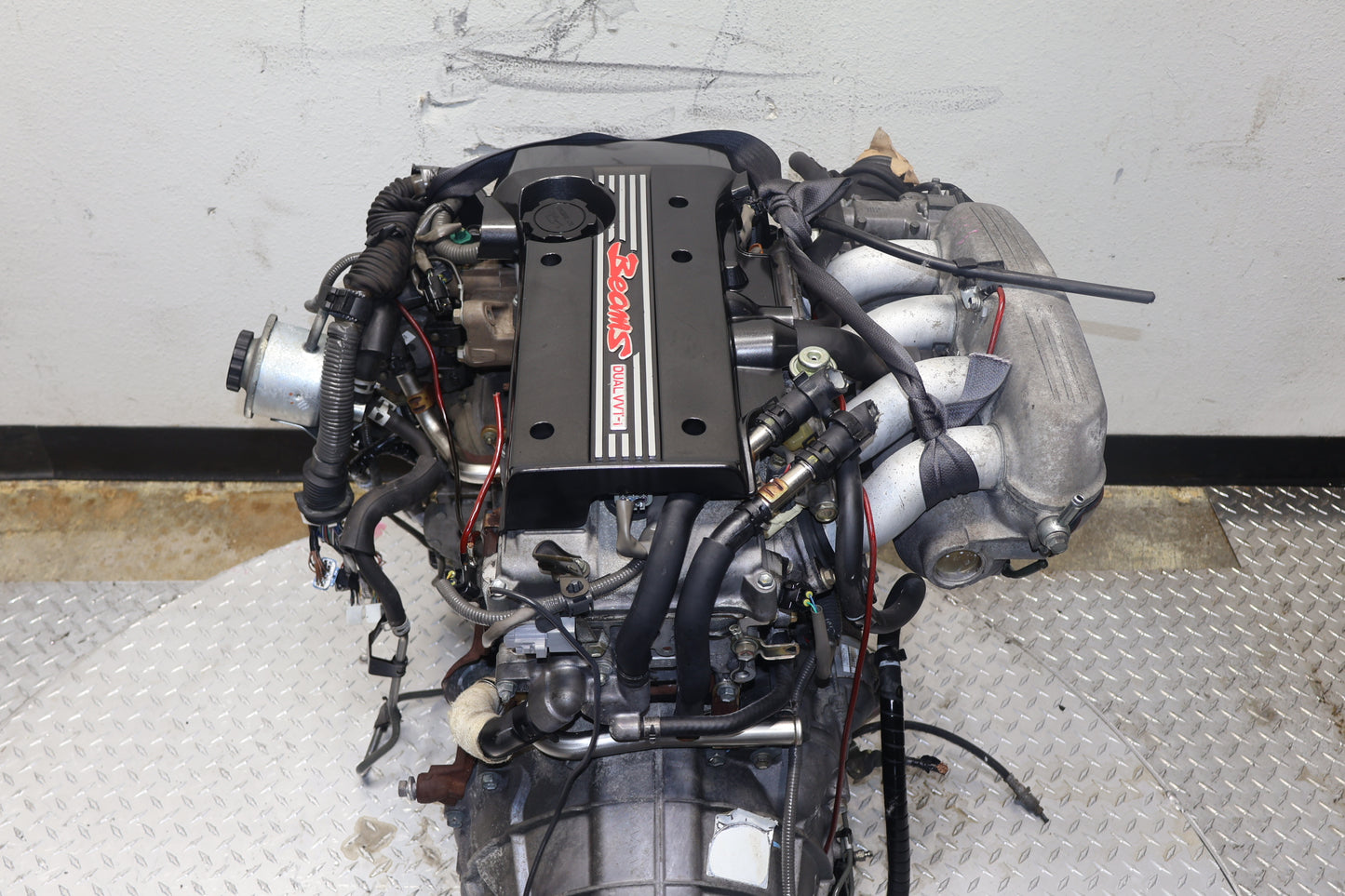

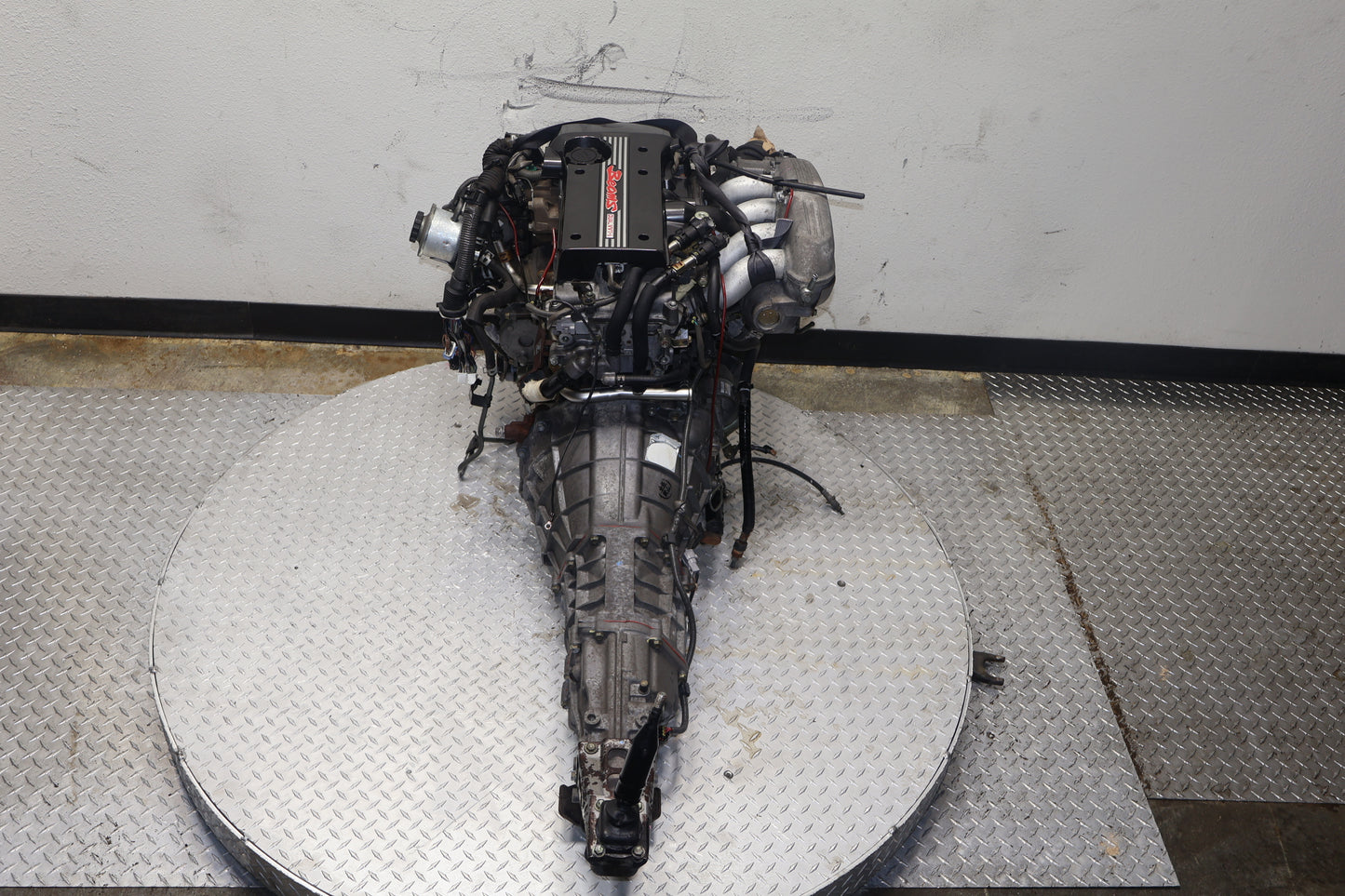

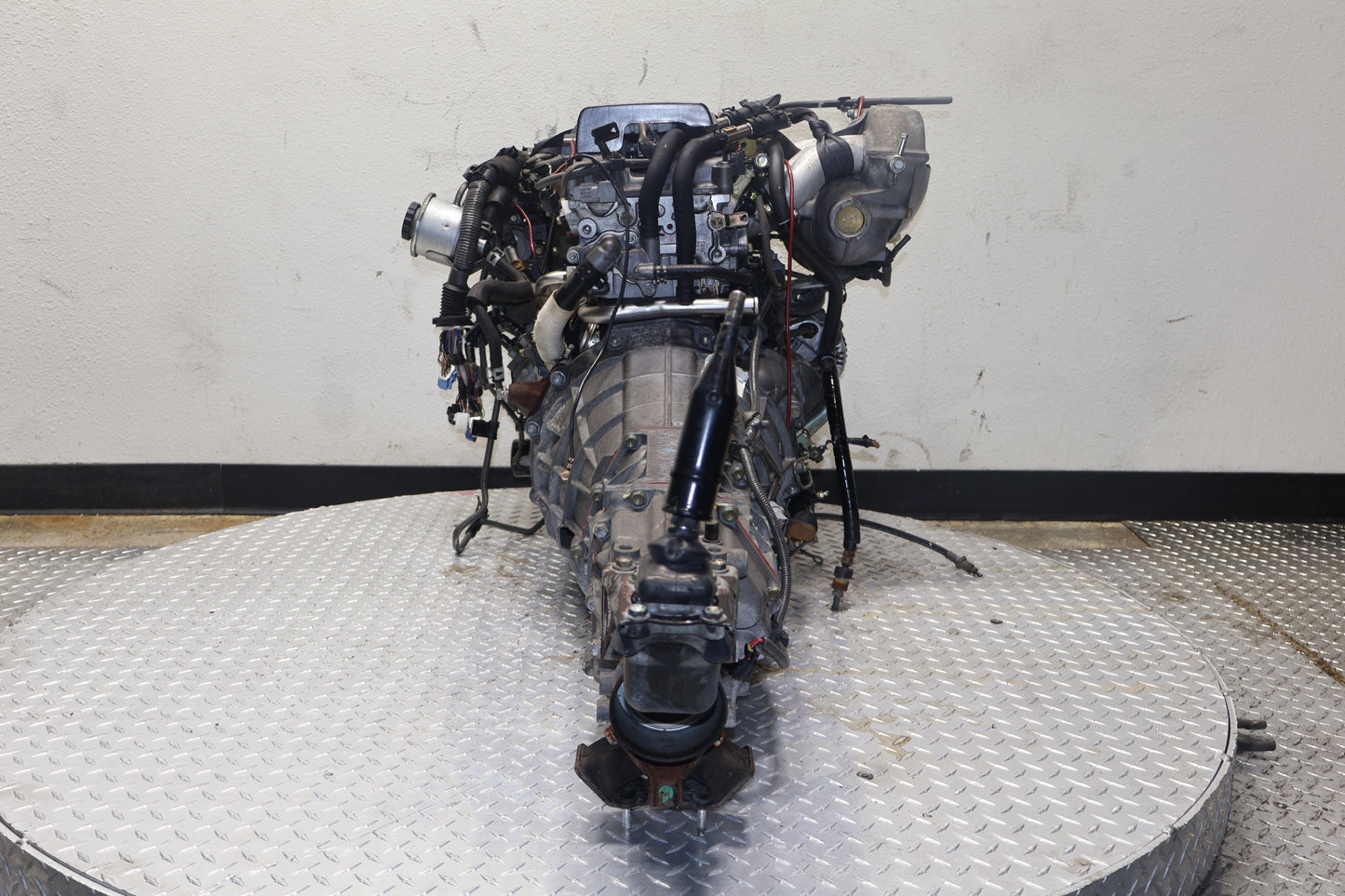

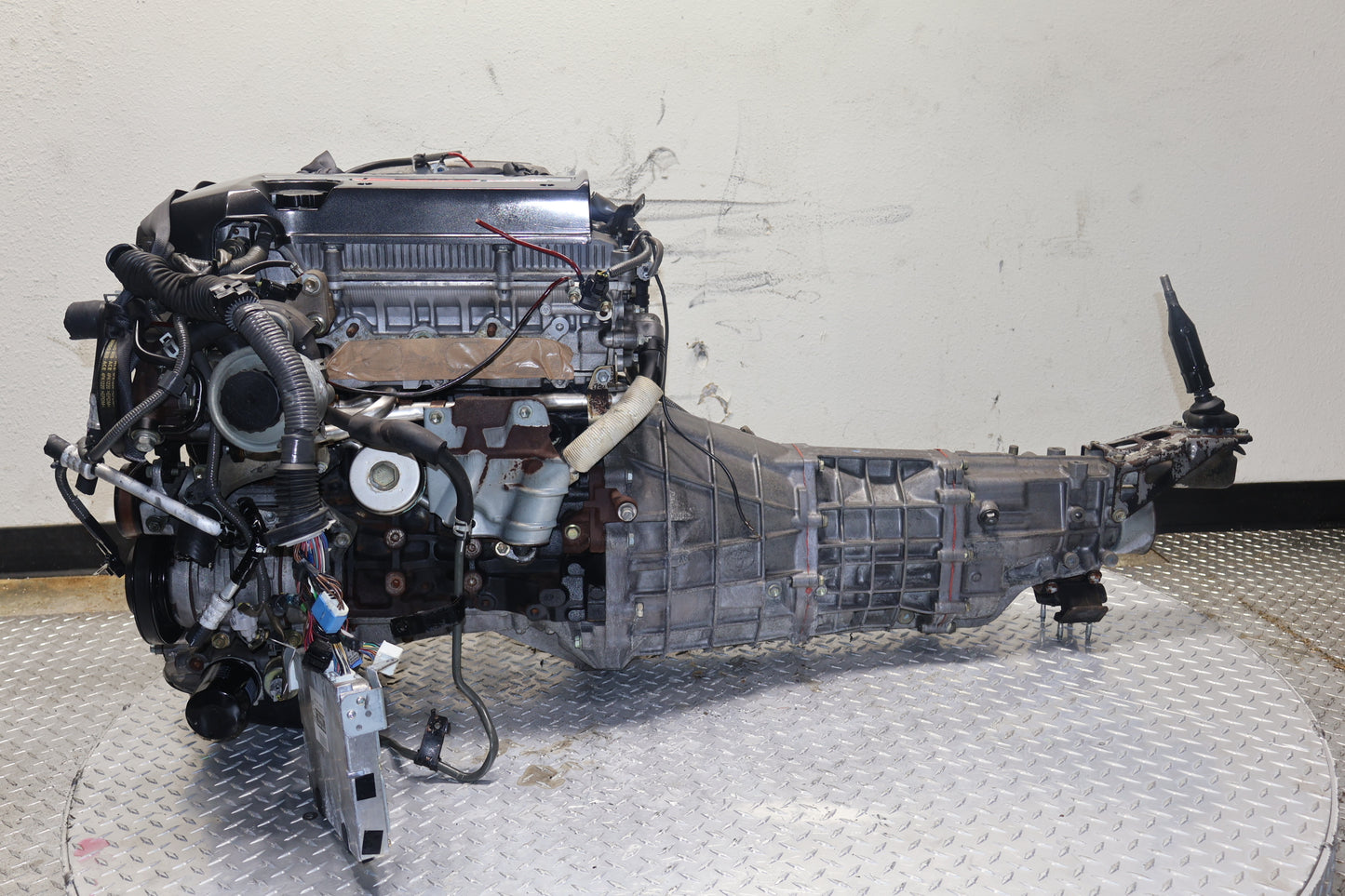

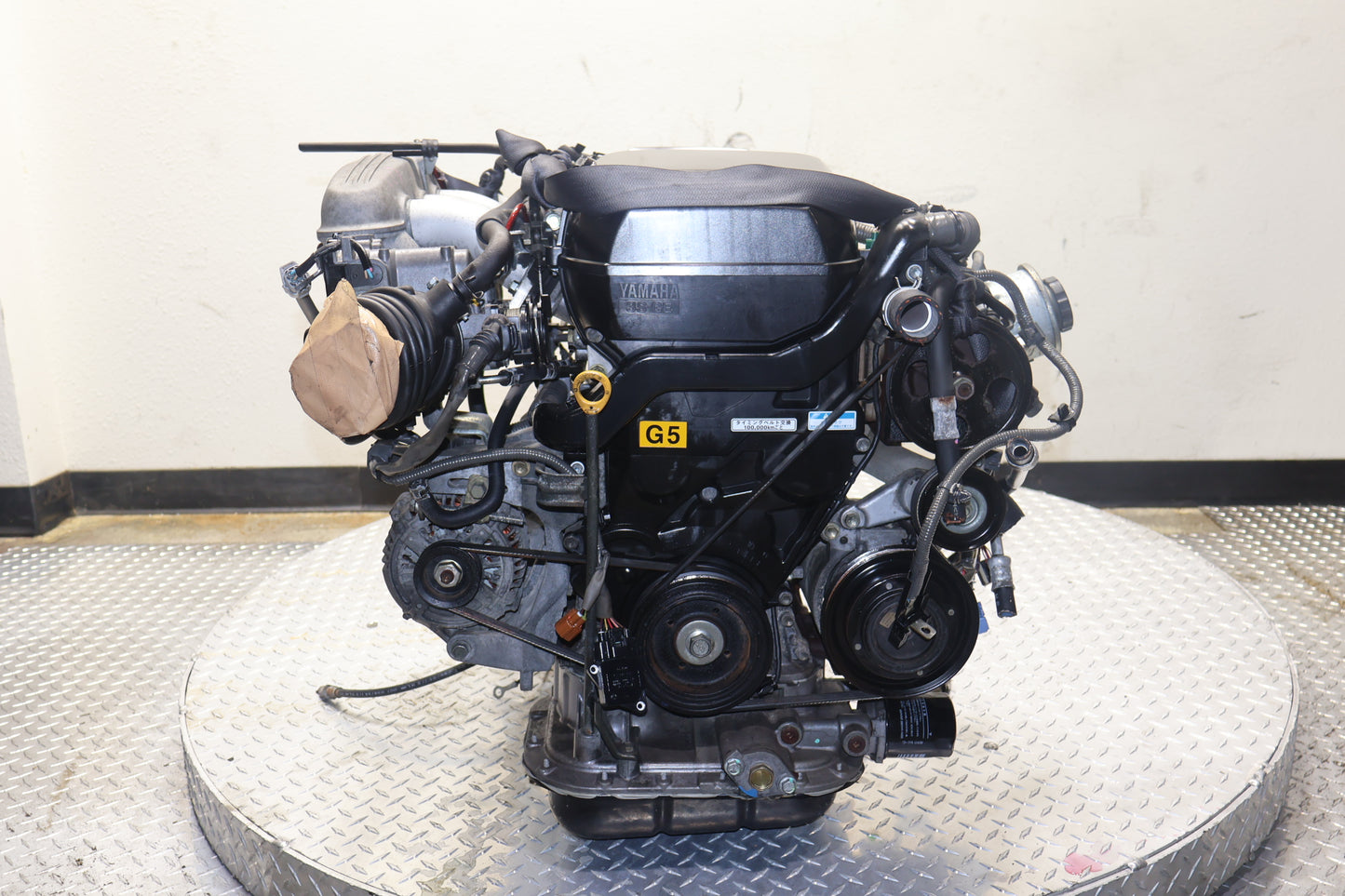

Toyota Altezza RS200 SXE10 JDM 3S-GE Beams 2.0L Inline-4 Dual VVTi Engine + J160 6 Speed Manual Transmission (G5 Spec)

JDM Toyota 3S-GE BEAMS "Black Top" Engine

• Configuration: Inline-4, Aluminum Block and Heads

• Valvetrain: DOHC, 4-Valve per cylinder with Dual VVT-i (Variable Valve Timing with intelligence on both Intake and Exhaust camshafts) Larger Titanium Intake & Exhaust Valves

• Displacement: 1,998 cc (2.0 Liters)

• Compression Ratio: 11.5:1 (High-compression sports spec)

• Factory Output: Approximately 207–210 HP @ 7,600 RPM / 156 lb-ft Torque @ 6,400 RPM

• Redline: 8,000 RPM

J160 6-Speed Manual Transmission (G5 Spec)

• Design: Heavy-duty rear-wheel drive, triple-cone synchronizers on lower gears for fast, precise shifting.

• Case Material: Lightweight, durable aluminum casing built specifically for the Altezza RS200 platform.

• Clutch Actuation: Hydraulic pull/push slave cylinder configuration.

Vehicle Fitment Guide

This complete powertrain package is designed for Rear-Wheel Drive (RWD) applications:

• Toyota Altezza RS200 (SXE10): 1998–2005 (Direct factory replacement for both Z Edition and L Edition trims).

• Custom Engine Swaps: Commonly adapted into older rear-wheel-drive Toyota platforms (such as the AE86 Corolla, Starlet, or older Coronas) utilizing custom crossmember mounts and standalone engine management.

Important Compatibility Note: This is the RS200 (SXE10) BEAMS engine, which is structurally different from the AS200 (GXE10) inline-6 (1G-FE) engine bay. Dropping this into an AS200 chassis requires custom engine mounts, wiring modifications, and a compatible manual transmission tunnel setup.

USDM to JDM / Swap Guide (3S-GE BEAMS & J160)

Because the Toyota Altezza RS200 was never officially sold in the US market (though its platform twin, the Lexus IS300, was), importing a BEAMS 3S-GE and J160 transmission requires attention to wiring and plumbing details.

1. Harness & Electrical Integration

• ECU and Igniter: The 3S-GE BEAMS Dual VVT-i relies heavily on its factory ECU, immobilizer system, and integrated igniter pack. Ensure your imported package includes the uncut engine harness and matching ECU.

• Dashboard Integration: If installing into a JDM Altezza shell, it is mostly plug-and-play. For custom swaps into US-spec Lexus IS300 bodies, a custom standalone ECU (such as Link, Haltech, or Adaptronic) is typically required to control the Dual VVT-i system and map the electronic throttle body (ETCS-i).

2. Drivetrain & Clutch Assembly

• Transmission Mount: The J160 transmission utilizes a specific crossmember layout. Ensure you retain or source the Altezza-specific transmission mount insulator and bracket.

• Driveshaft: The output yoke of the J160 requires a matching Altezza manual driveshaft flange. If doing a custom swap, a custom-length driveshaft with the correct transmission slip yoke will need to be fabricated.

• Fluid: Fill the J160 transmission with high-quality 75W-90 GL-4 gear oil to ensure smooth high-RPM shifting and to protect the internal brass synchronizers.

3. Cooling & Ancillaries

• Radiator Clearance: The 3S-GE sits further back in the engine bay compared to the IS300's inline-6, leaving ample room up front. Use a high-capacity aluminum radiator with dual electric fans.

• Exhaust Header: The factory 3S-GE BEAMS stainless steel exhaust manifold ("banana style" header) is a work of art but ensure your custom exhaust system or downpipe matches the JDM collector flange geometry.
