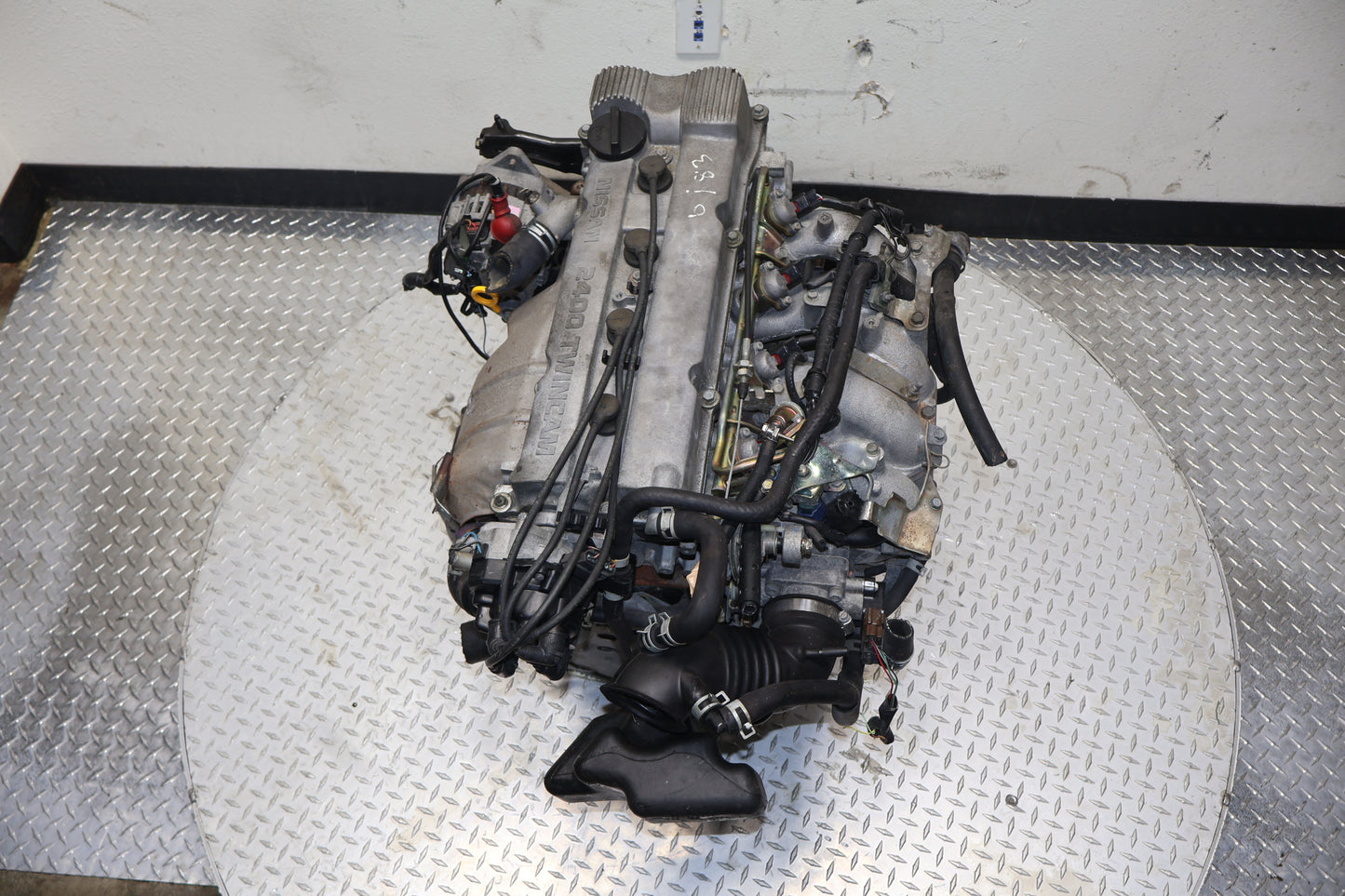

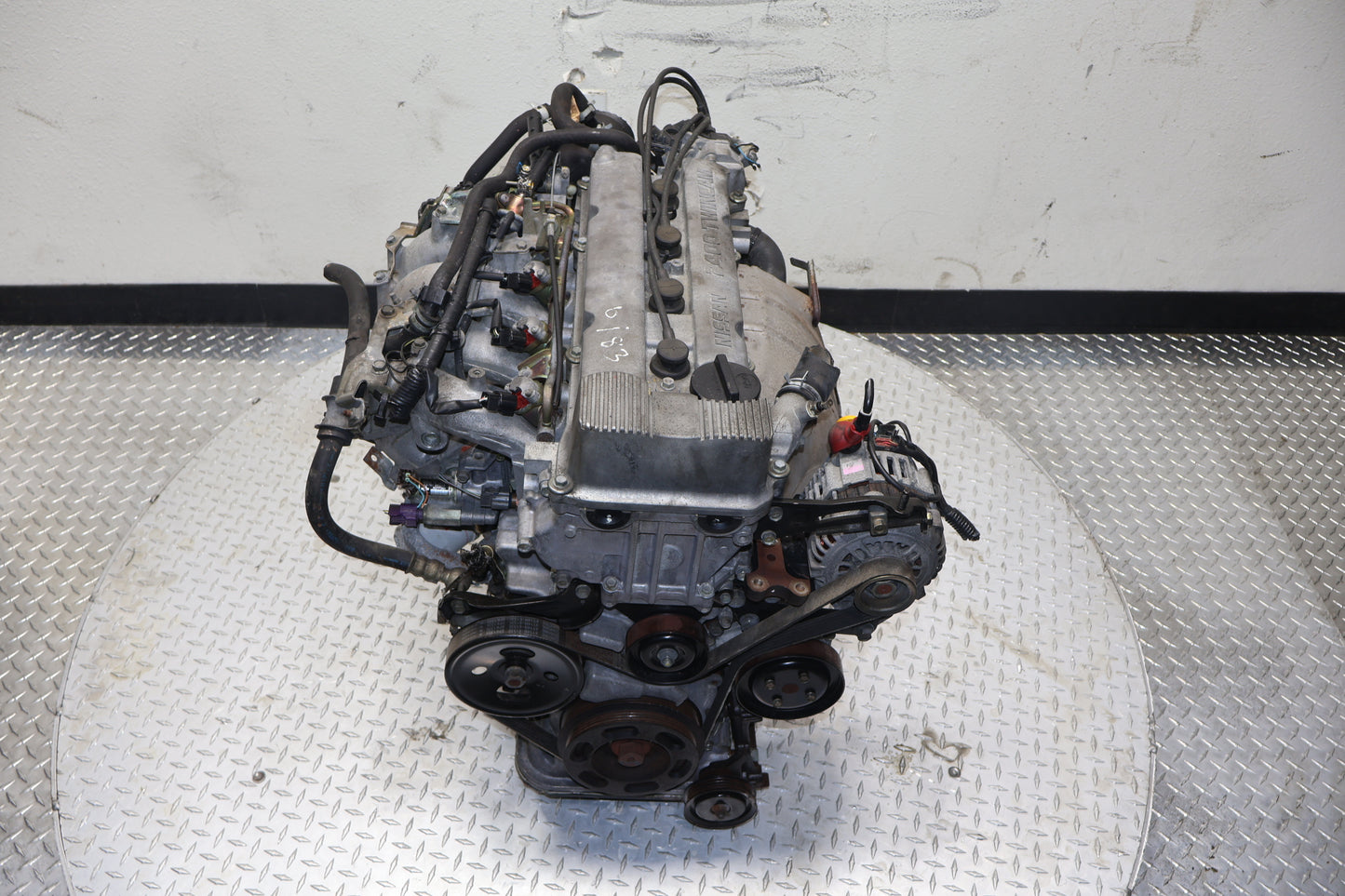

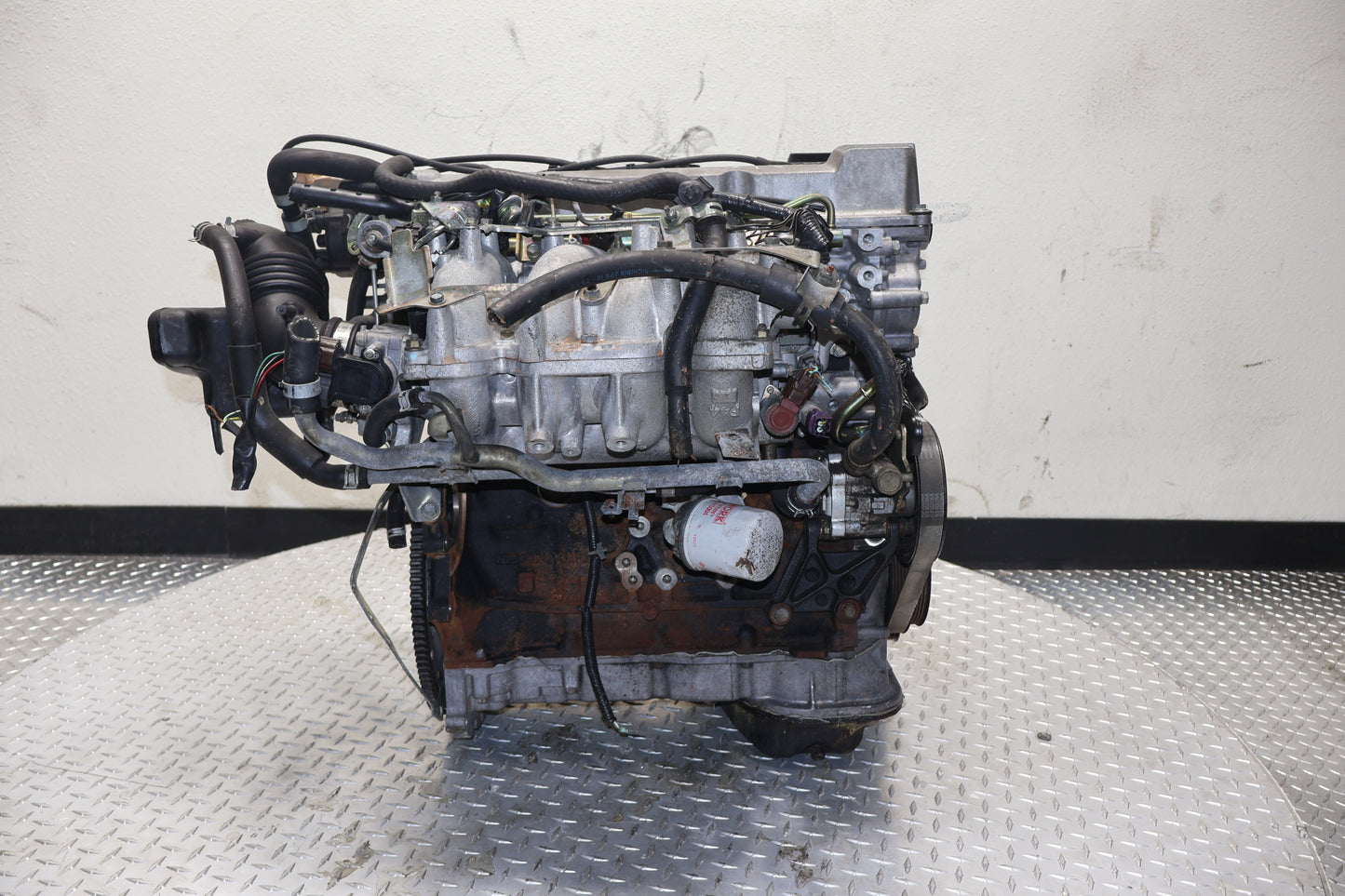

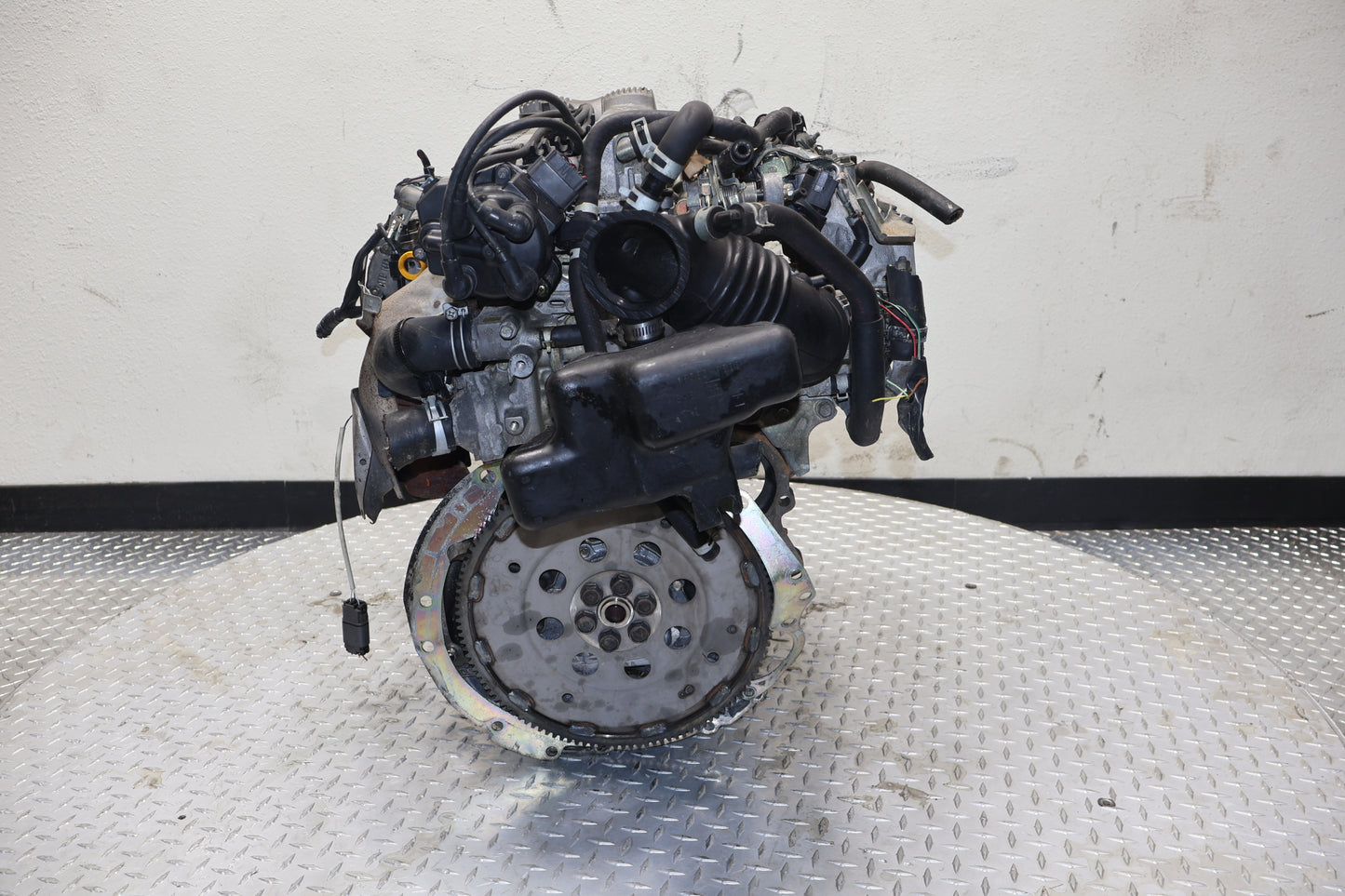

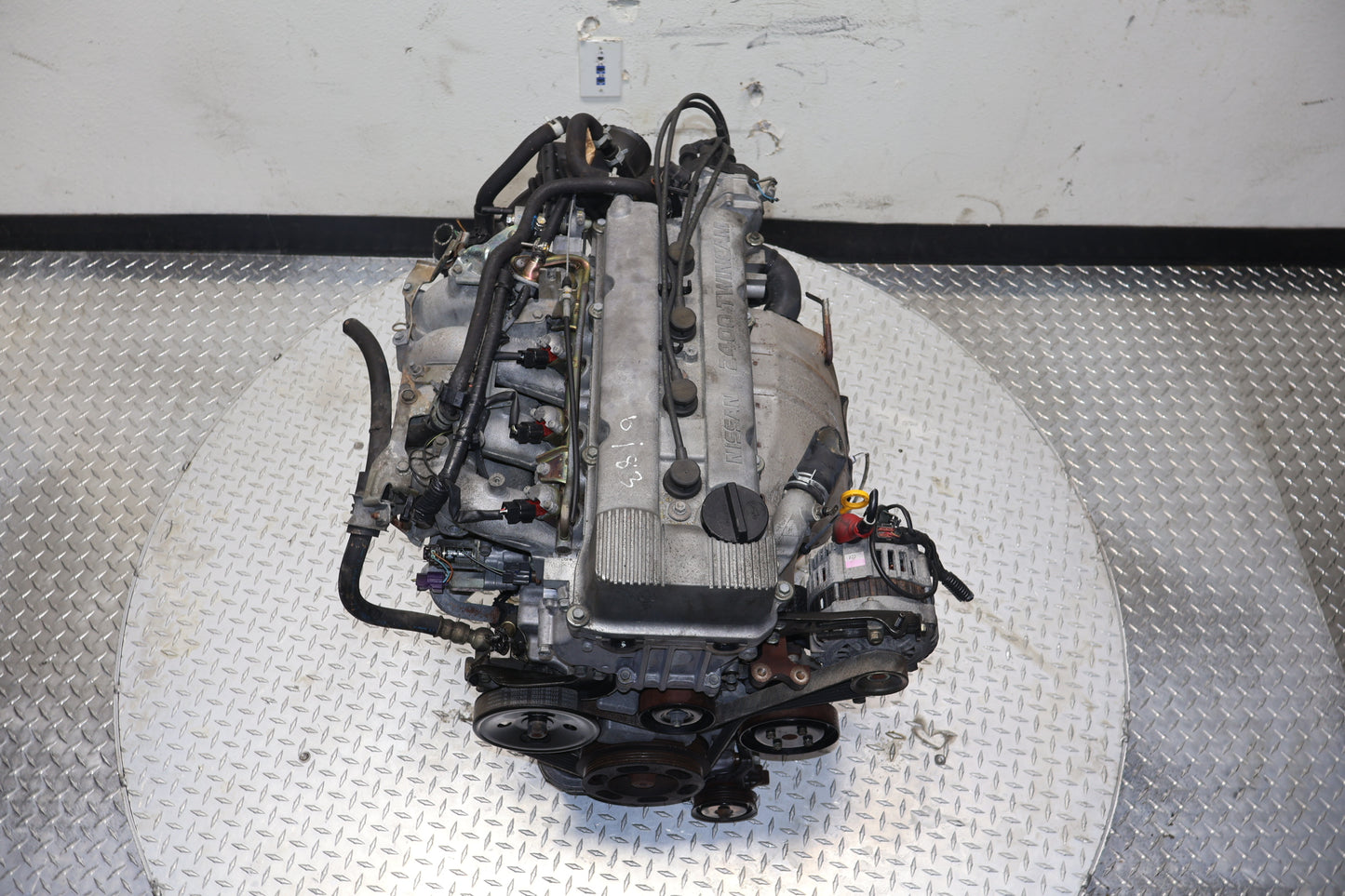

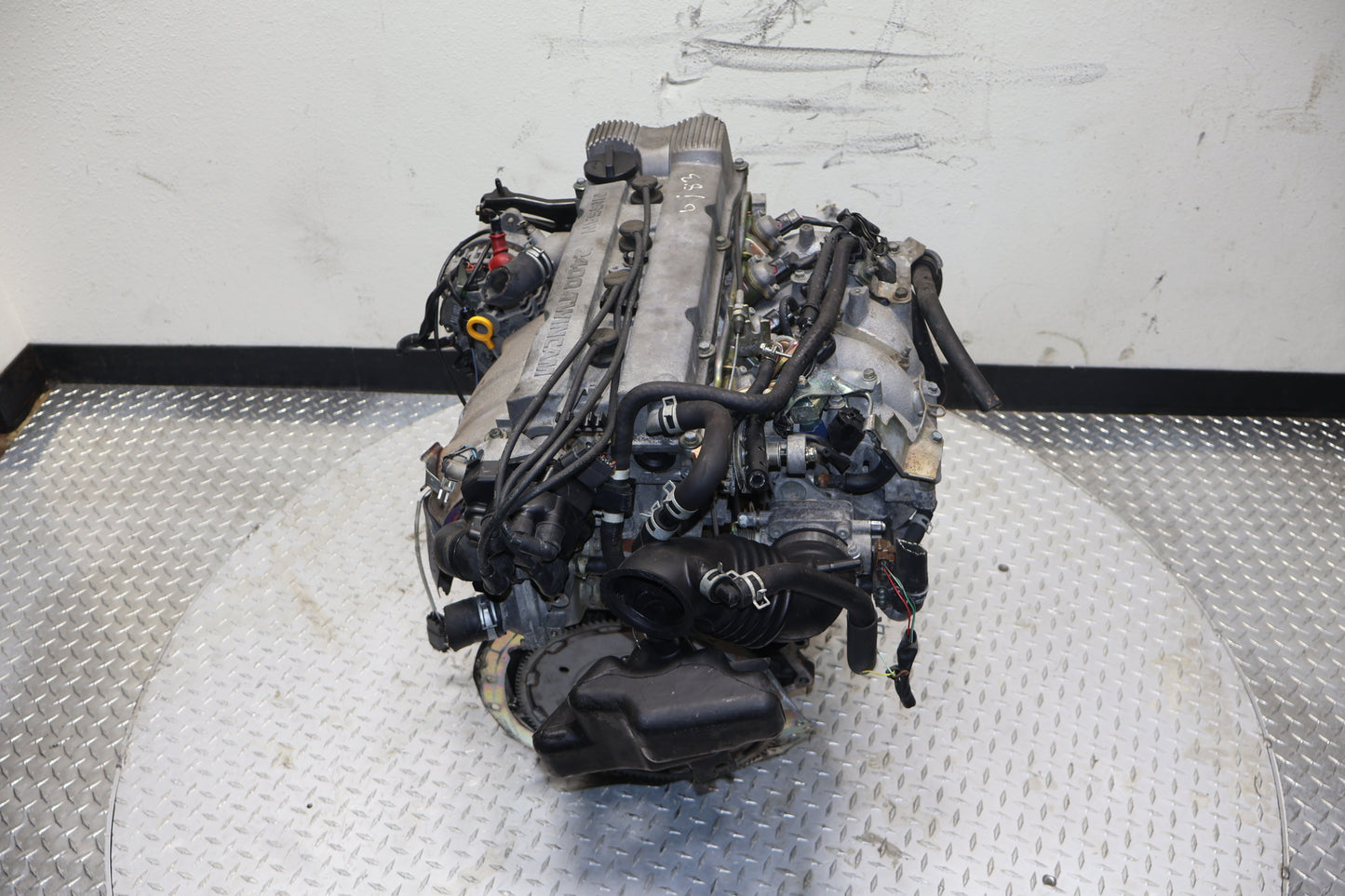

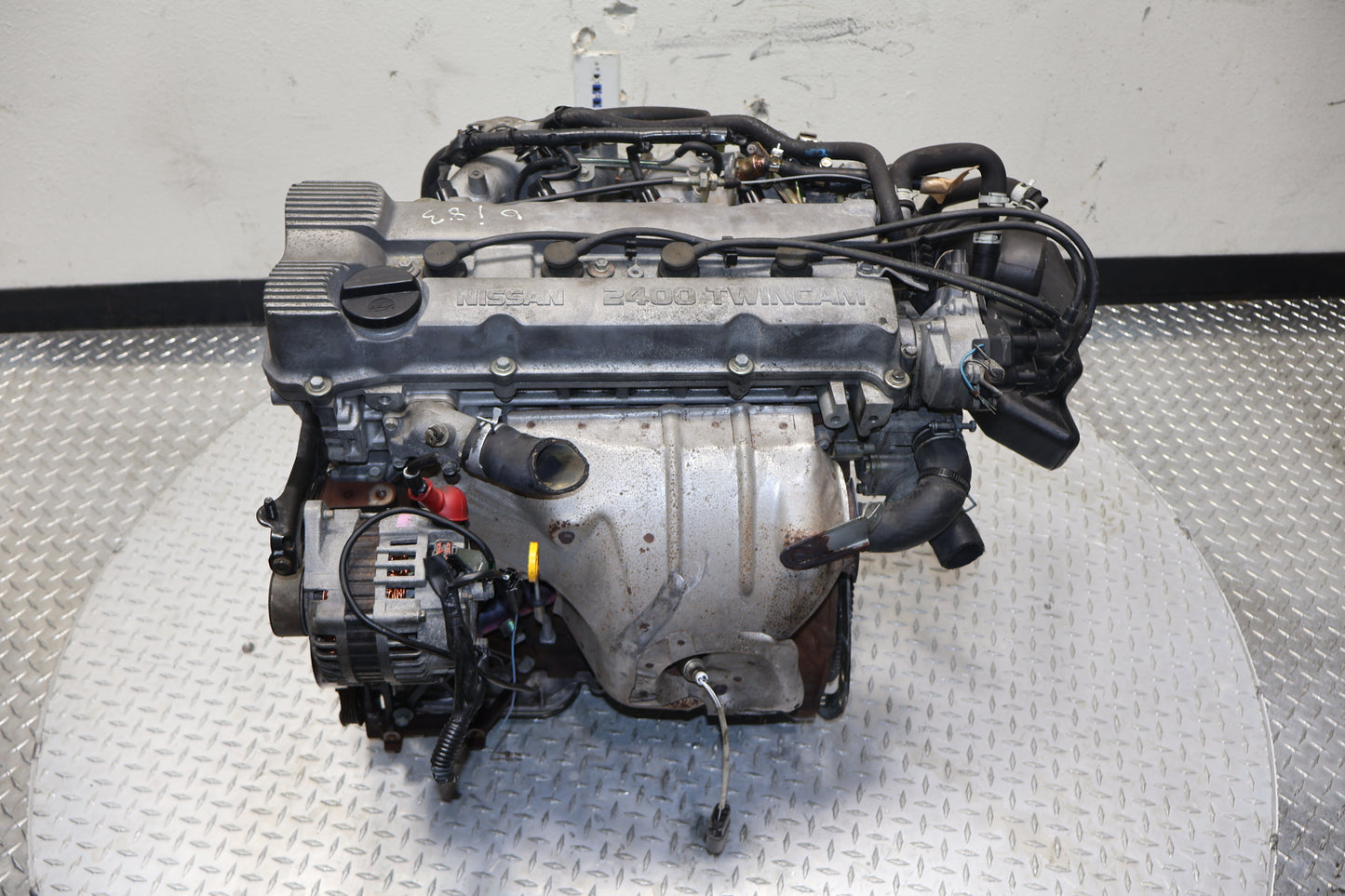

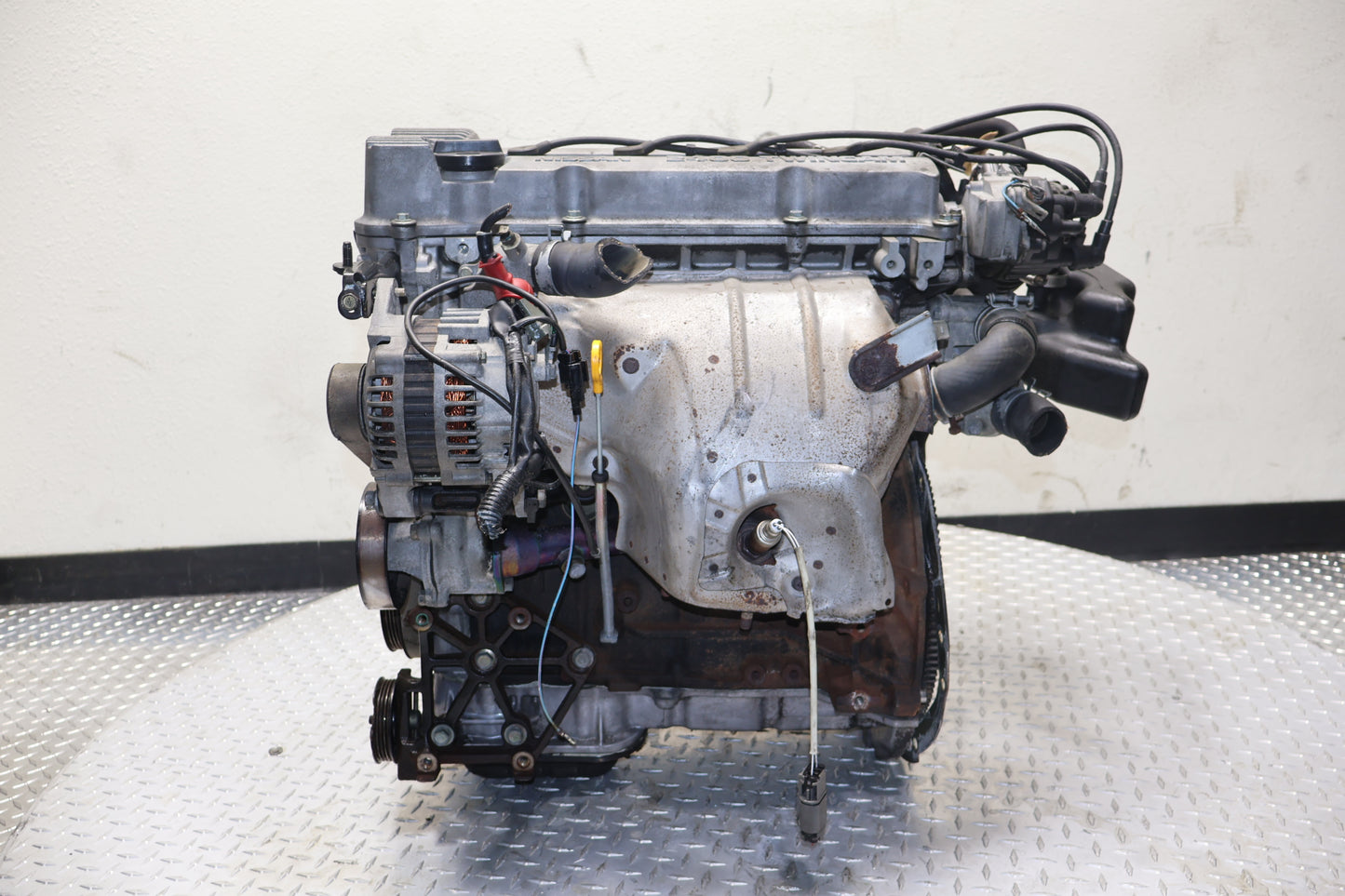

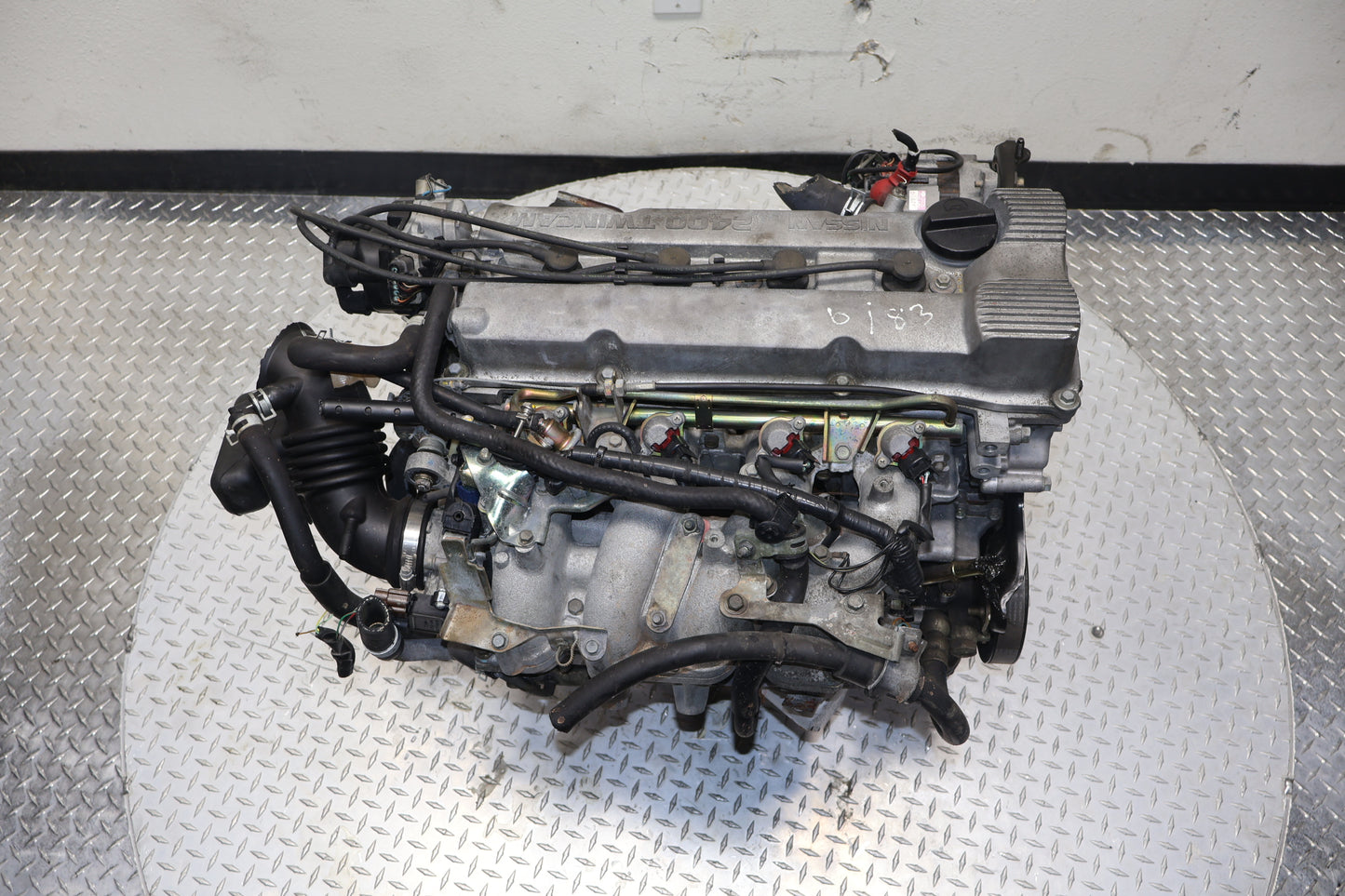

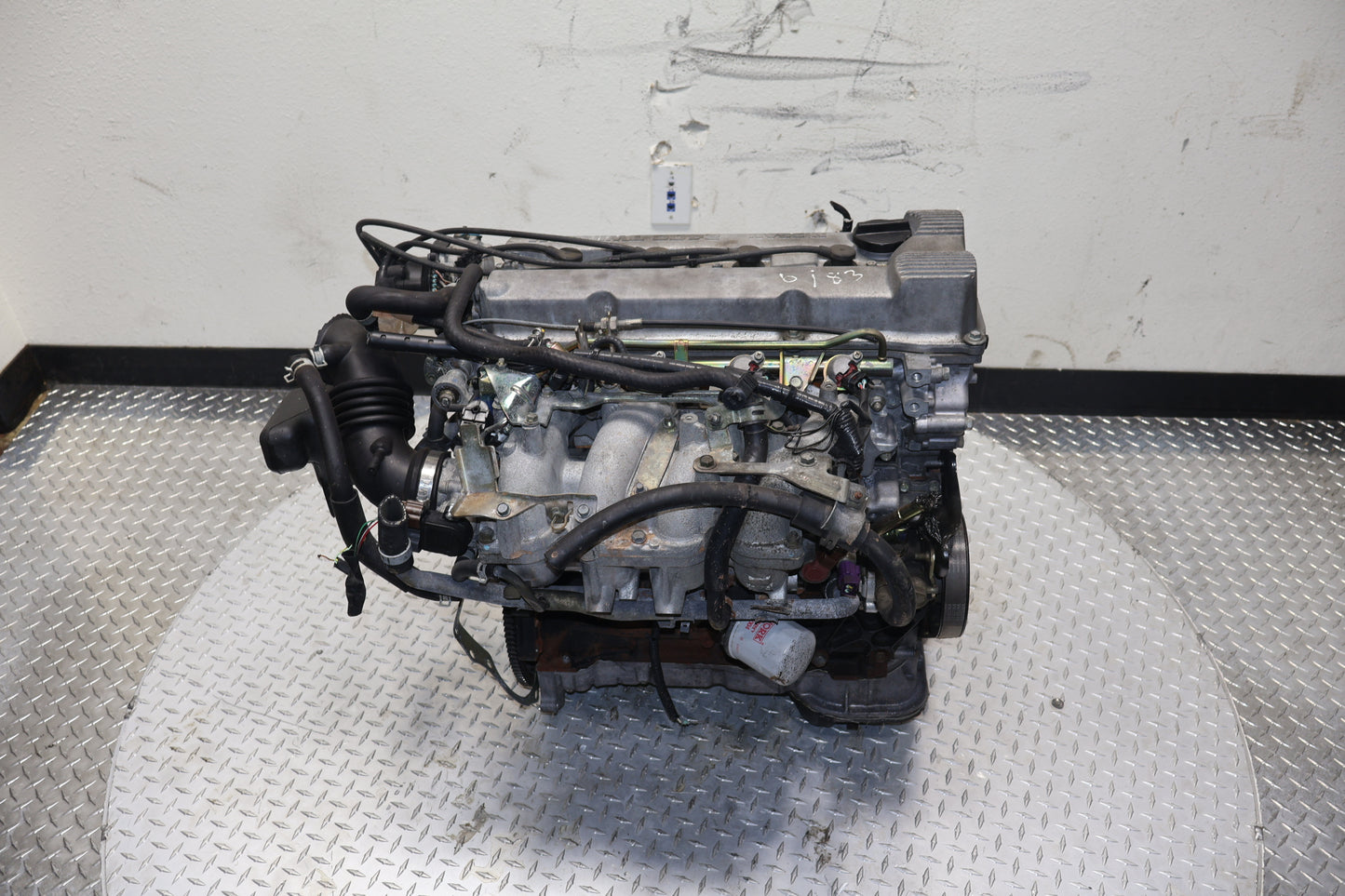

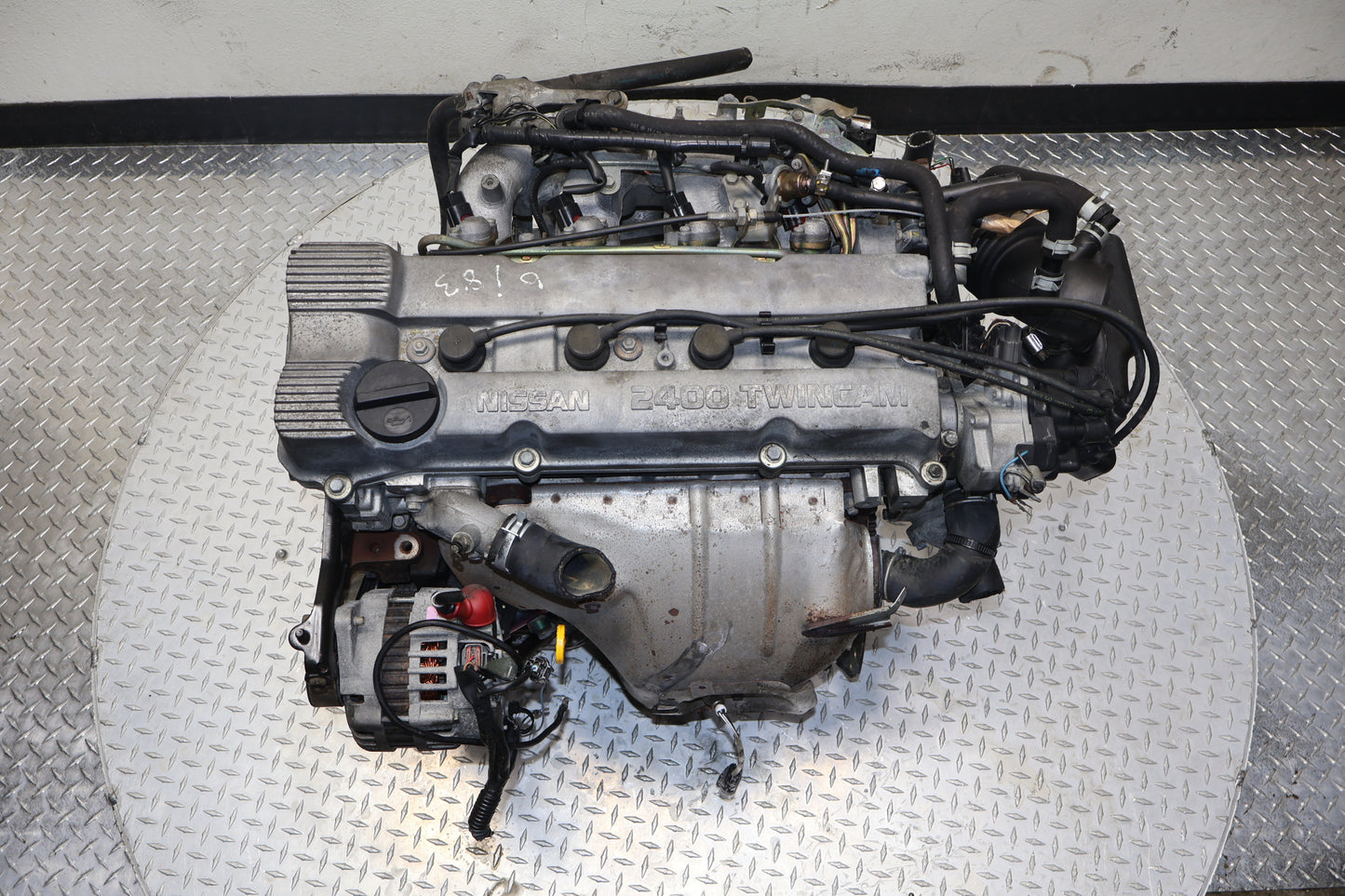

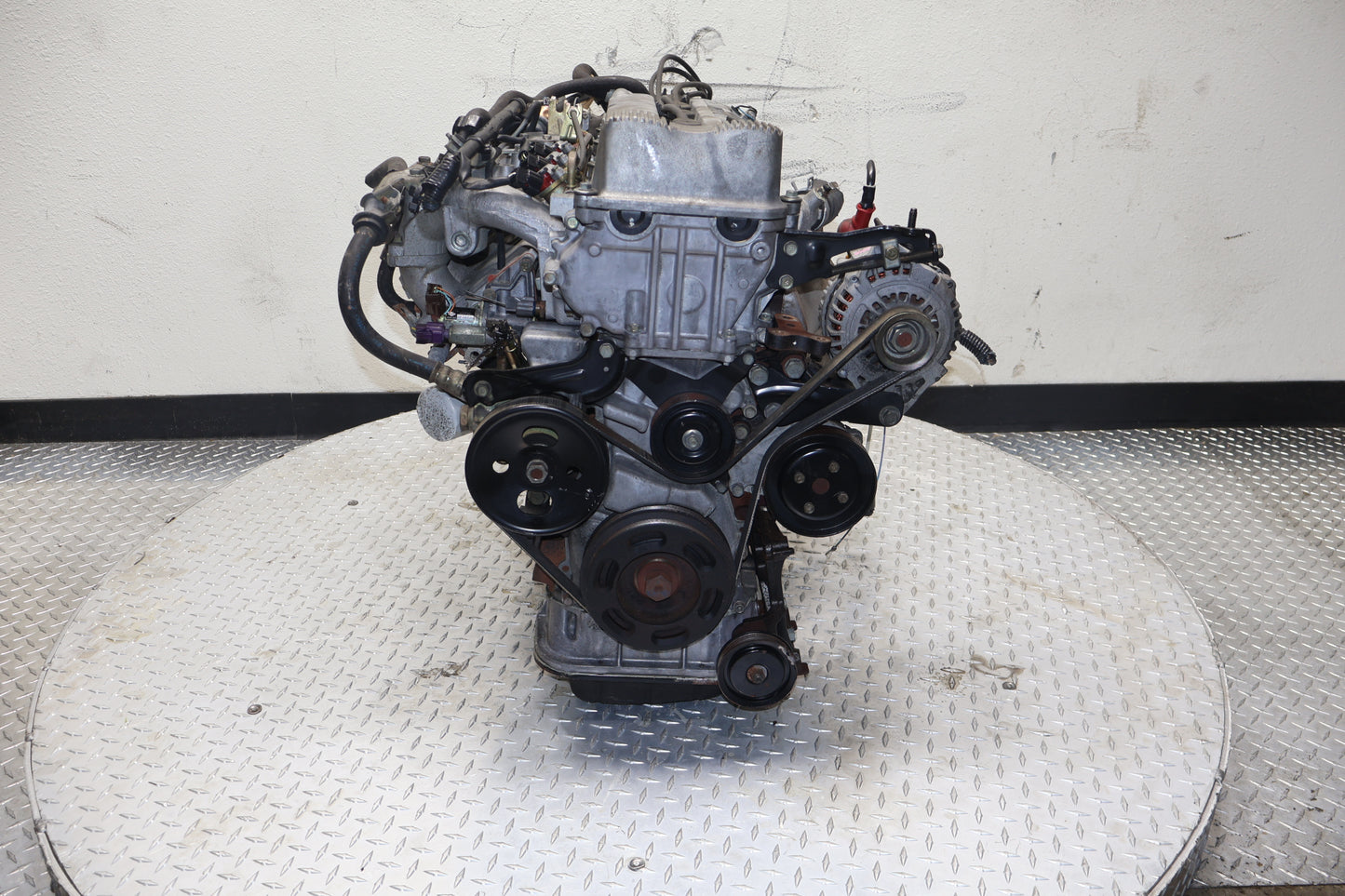

1993 1994 1995 1996 1997 1998 1999 2000 2001 Nissan Altima 2.4L DOHC Engine JDM KA24DE

Engine Specifications

• Engine Code: KA24DE (Altima / FWD Configuration)

• Displacement: 2.4 Liters (2,389 cc)

• Configuration: Inline 4-Cylinder

• Valvetrain: DOHC 16-Valve (Chain-Driven Timing)

• Block/Head Material: Cast Iron Block / Aluminum Cylinder Head

• Horsepower Output: Approx. 150 hp @ 5,600 RPM

• Torque Output: Approx. 154 lb-ft @ 4,400 RPM

Vehicle Fitment

This long block is configured as a direct replacement for North American front-wheel-drive configurations:

• Nissan Altima: 1993, 1994, 1995, 1996, 1997 (1st Generation - U13 Chassis)

• Nissan Altima: 1998, 1999, 2000, 2001 (2nd Generation - L30 Chassis)

• CRITICAL RWD COMPATIBILITY NOTE: This engine is specifically pulled from a Front-Wheel Drive (FWD) vehicle platform. While the core block shares the KA24DE architecture with the rear-wheel-drive Nissan 240SX (S13/S14) and Nissan Frontier, the engine block casting, engine mounts, intake manifold layout, and accessory bolt holes are entirely different. This unit will NOT drop into a Nissan 240SX or truck without extensive, advanced modifications. It is sold primarily as an Altima replacement.

Long Block Installation Notes

PROFESSIONAL INSTALLATION WARNING: This assembly is provided strictly as a Long Block (assembled cylinder head, engine block, oil pan, and internal moving components). To avoid check engine codes or immediate performance issues, ensure your mechanic follows these guidelines:

1. Transfer USDM External Accessories: You MUST swap over your vehicle's original intake manifold plenum, fuel rail, injectors, exhaust manifold, alternator, power steering pumps, and A/C compressor brackets.

2. Reuse Your Original Wiring & Sensors: JDM wiring harnesses are cut or configured for right-hand drive architectures. Discard the JDM harness and utilize your original USDM engine wiring loom. Additionally, transfer your original distributor, Crankshaft Position Sensor, and water temperature sensors to ensure plug-and-play compatibility with your factory ECU.

3. Inspect/Replace the Water Pump: Take advantage of the engine block being on an engine stand and install a brand-new water pump, a fresh thermostat, and a high-quality oil filter.

4. Address Front and Rear Seals: While the motor is accessible, replace the front crankshaft seal and rear main seal to protect your garage floor from future leaks.

5. Fluid & Timing Protocols: Refill the system with a premium 5W-30 or 10W-30 motor oil and a fresh filter. The KA24DE utilizes a highly durable timing chain; ensure the tensioners are visually inspected for appropriate tension prior to completing the drop-in process.
