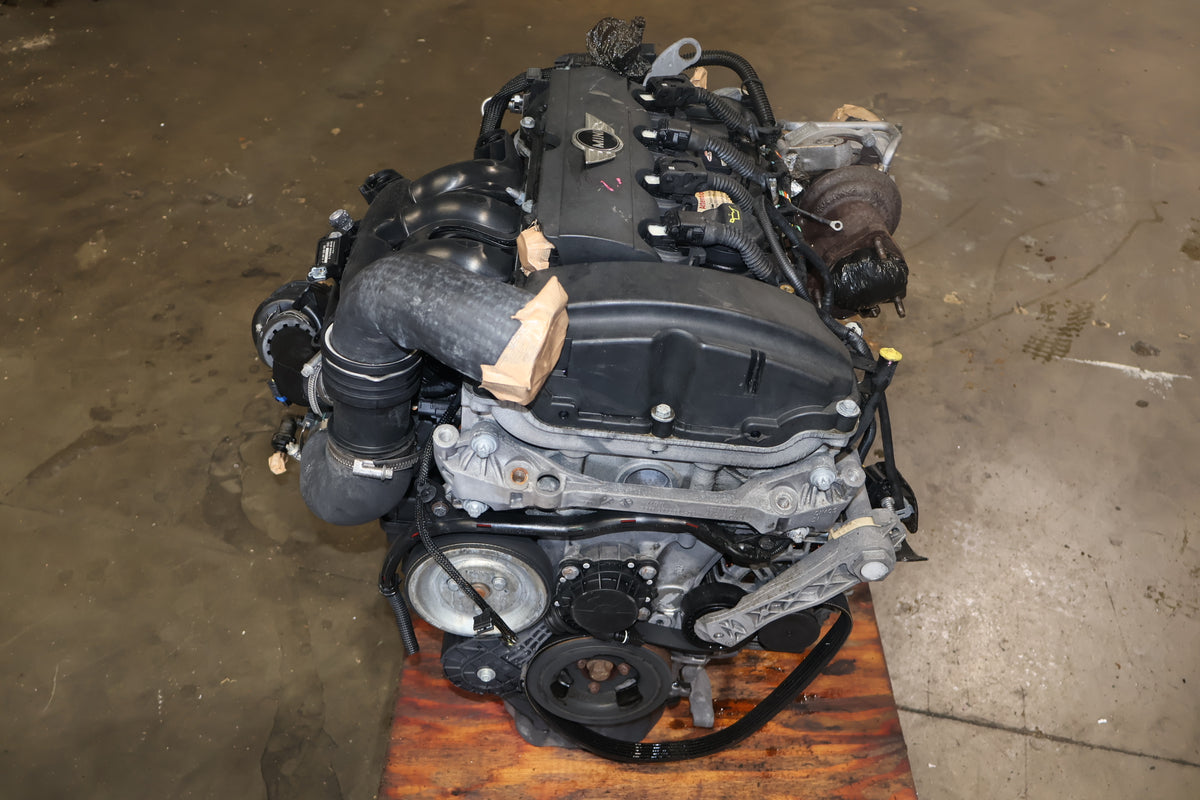

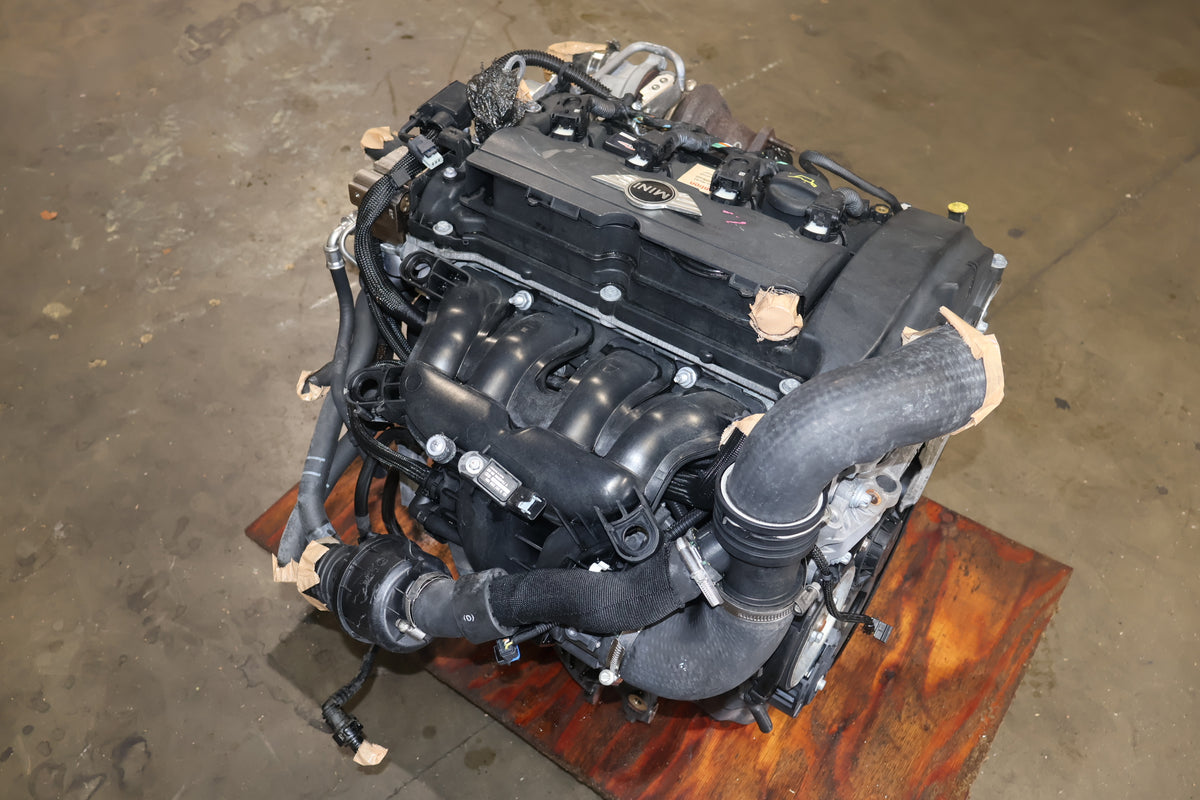

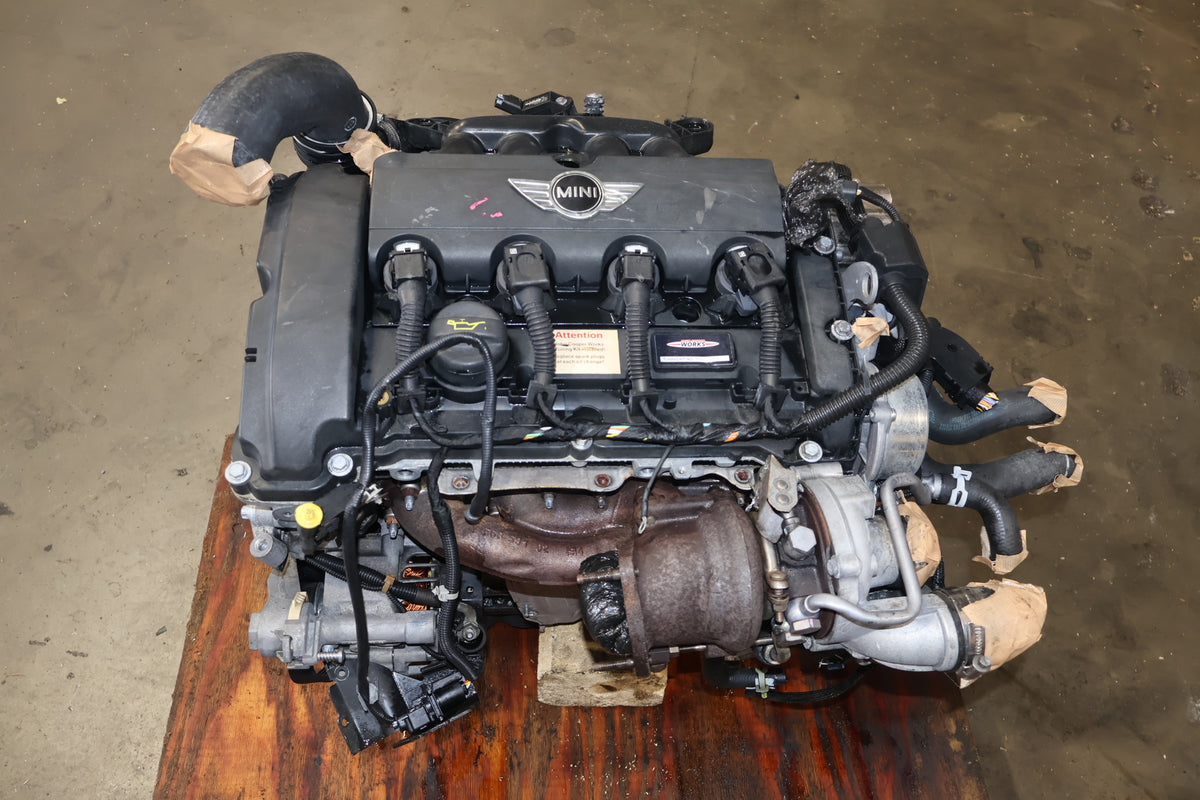

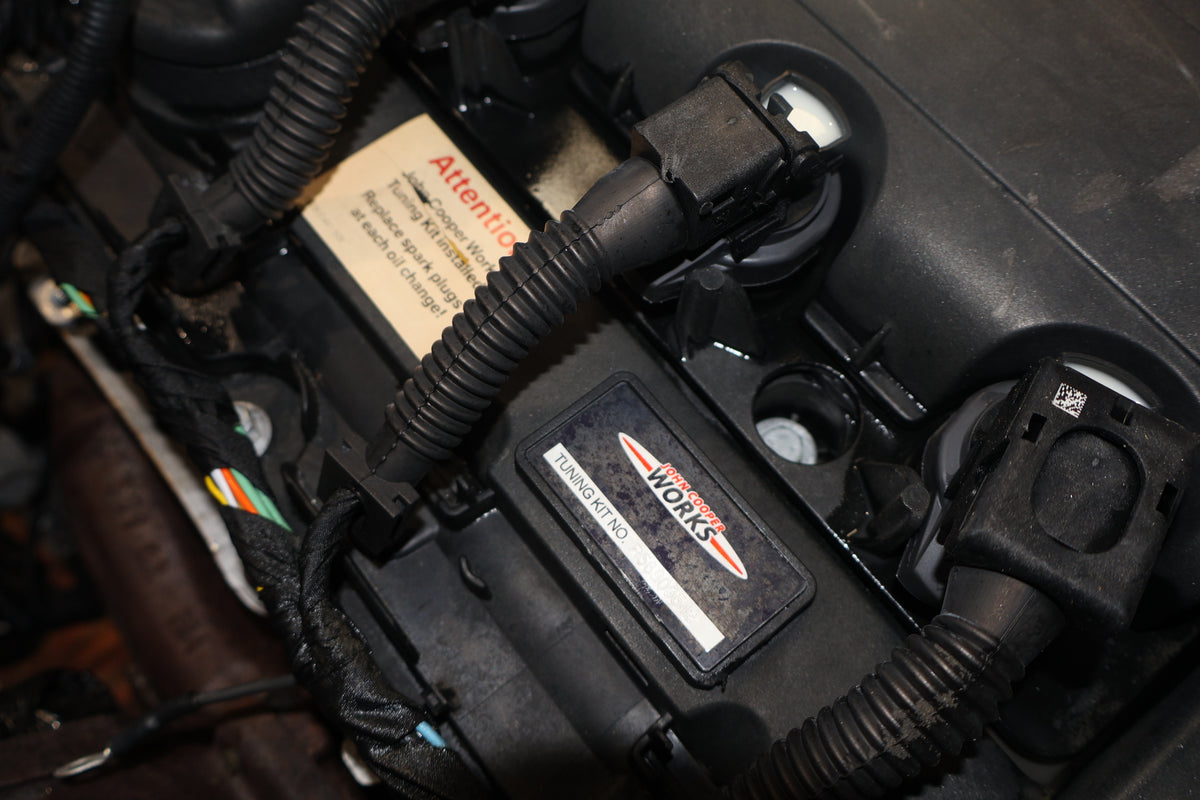

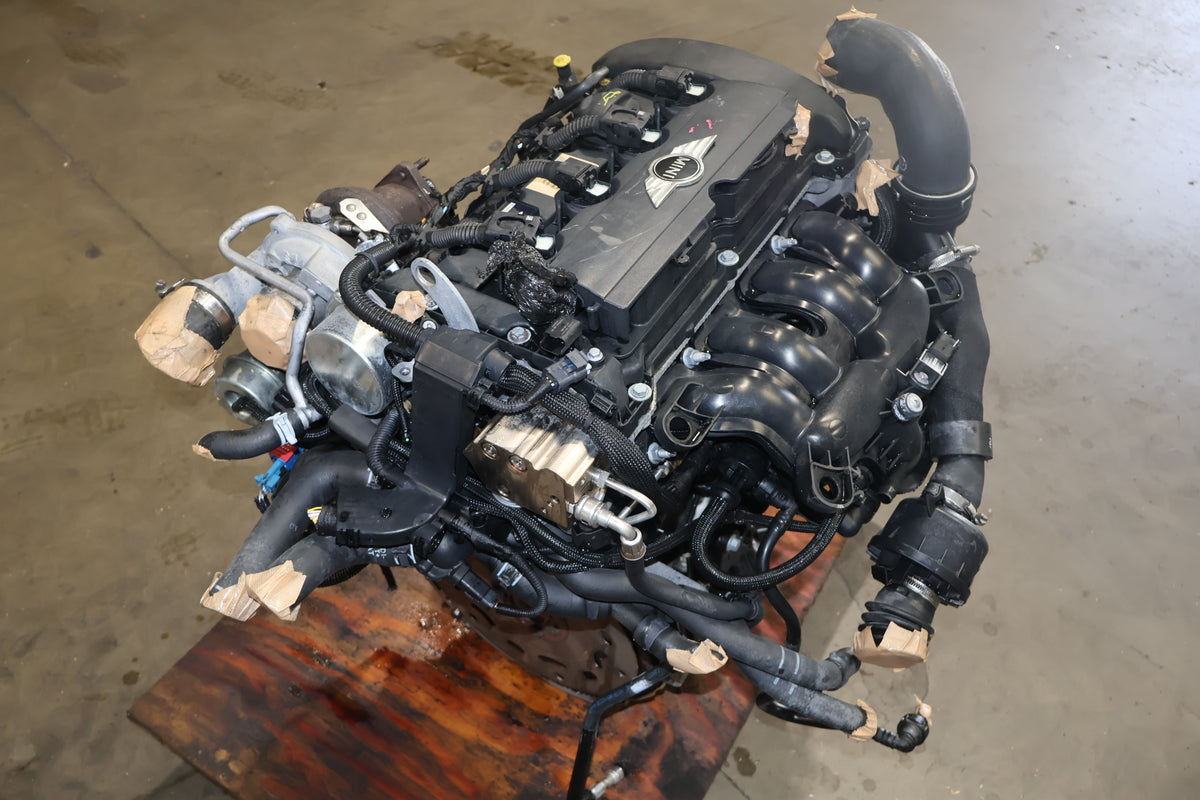

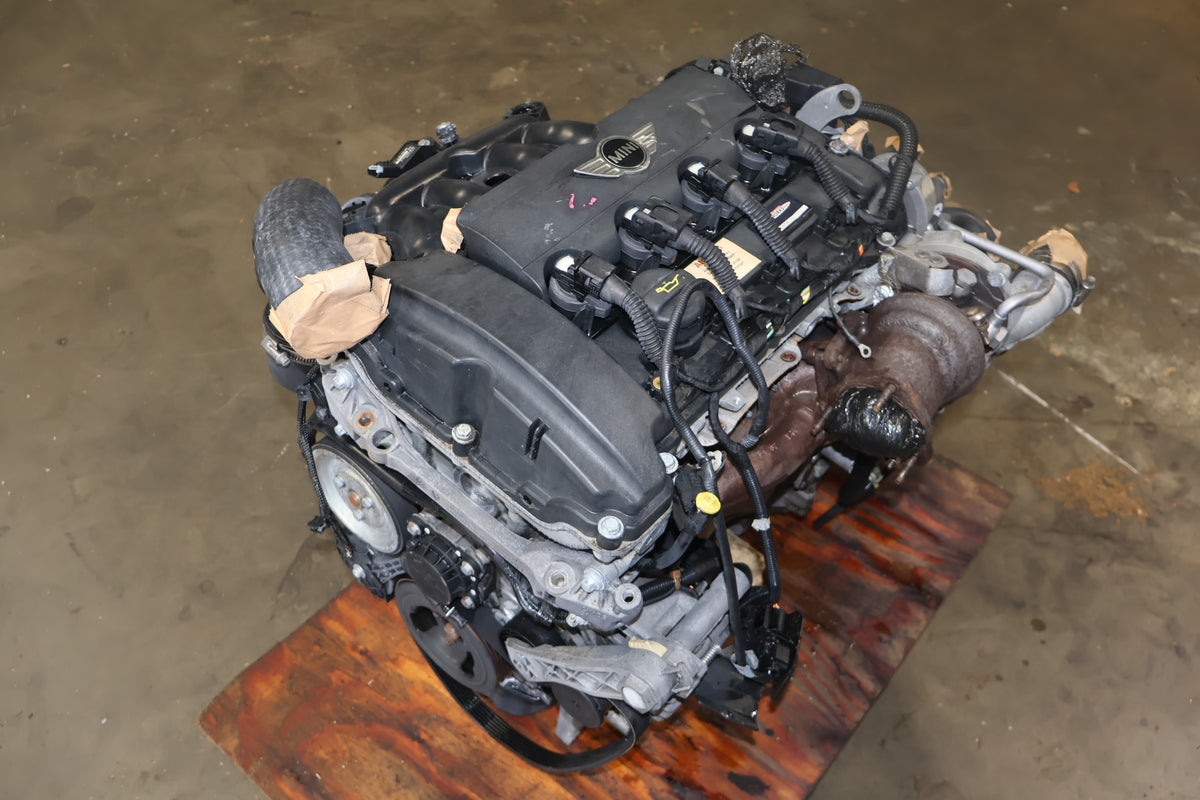

2009 2010 Mini Cooper JDM Imported 1.6L Turbocharged Engine w/ JCW Tuning Kit

Sale price $2,799.99

Shop Now, Pay Later

Make

Mini

Fitment

2009 - 2010 Mini Cooper JCW

Mileage

48K

Engine Design

1.6L, DOHC

Engine Type

Inline-4, Turbocharged

Warranty

30 Days

Calculate Shipping

Estimate freight to your door

Not sure it fits?

Call or email us your VIN – we’ll confirm before you buy

Feature Specification
Engine Code N14B16A / N14B16C (JCW)
Displacement 1.6 Liters (1,598 cc)
Configuration Inline-4 Cylinder Turbocharged
Valvetrain DOHC, 16-Valve with Variable Valve Timing (Vanos)
Induction Twin-Scroll Turbocharger (JCW Spec)
Fuel Injection Gasoline Direct Injection (GDI)
Bore x Stroke 77.0 mm × 85.8 mm
Compression Ratio 10.0:1 (Cooper S) / 10.0:1 (JCW)
Horsepower Output ~192–208 hp @ 6,000 RPM (JCW Tuning Kit Spec)
Torque Output ~192–207 lb-ft @ 1,850–5,600 RPM

Vehicle Fitment

This JDM N14 turbocharged long block fits the following USDM second-generation Mini Cooper models:

  • 2009–2010 Mini John Cooper Works (JCW) (R55, R56, R57)

USDM to JDM Swap Guide (Mini Cooper N14 Turbo)

Installing a JDM N14 engine into a USDM Mini Cooper requires using the imported engine as a bare long block. Retaining your original USDM vehicle harness, ECU, and specific emissions plumbing guarantees plug-and-play electrical operation without Check Engine Lights (CEL).

Safety Warning

Direct injection fuel systems operate under extremely high pressure (up to 120+ bar). Relieve fuel system pressure safely before unbolting high-pressure fuel lines or rail components.

1.Strip JDM Engine Down to Long Block:Preparation.

Unbolt all external accessories, Japanese wiring harness, ECU connectors, and external brackets from the imported JDM engine. Clean all mounting faces thoroughly.

How to verify: Confirm the engine is stripped to the cylinder head, block, and valve cover assembly before transferring USDM parts.

2.Transfer USDM Engine Harness & Key Electronics:Sensor & Harness Transfer.

Remove your vehicle's original USDM engine wiring harness and sensors. Install them directly onto the JDM engine block:

  • High-Pressure Fuel Pump (HPFP) & fuel rail assembly

  • Camshaft and Crankshaft Position Sensors

  • Vanos Solenoid Valve & MAP/MAF sensors

  • Alternator, Starter, and A/C Compressor

How to verify: Plug in each connector from your USDM wiring harness to verify a 1:1 match without taut or stretched wires.

3.Mount JCW Turbocharger & Cooling Lines:Turbo & Cooling Setup.

Transfer your original USDM intercooler piping, turbo coolant line heat shields, and exhaust downpipe/catalytic converter to match USDM emissions compliance and chassis clearances.

How to verify: Inspect all turbo oil supply/return lines and coolant hoses for tight clamp retention and zero kinks.

4.Install USDM Flywheel / Flexplate & Engine Mounts:Drivetrain Prep.

Unbolt the JDM driveplate/flywheel. Inspect the rear main seal for any sign of oil seepage (replace with a new seal if needed). Transfer your USDM flywheel (6-speed manual) or flexplate (automatic) using fresh threadlocker on the bolts.

How to verify: Torque flywheel/flexplate bolts to factory specifications in a crisscross pattern and rotate the crank 360 degrees by hand.

5.Fluid Fill, Priming & Initial Startup:Final Assembly.
  1. Install the engine into the engine bay and bolt it securely to the transmission and subframe mounts.

  2. Fill with fully synthetic 5W-30 motor oil and fresh BMW/Mini approved coolant.

  3. Prime the oil system by cranking the engine with fuel pump fuse pulled prior to full start.

How to verify: Start the engine, verify oil pressure light extinguishes immediately, bleed the cooling system thoroughly, and scan for active diagnostic fault codes.

1.Strip JDM Engine Down to Long Block: Preparation.

Unbolt all external accessories, Japanese wiring harness, ECU connectors, and external brackets from the imported JDM engine. Clean all mounting faces thoroughly.

How to verify: Confirm the engine is stripped to the cylinder head, block, and valve cover assembly before transferring USDM parts.

2.Transfer USDM Engine Harness & Key Electronics: Sensor & Harness Transfer.

Remove your vehicle's original USDM engine wiring harness and sensors. Install them directly onto the JDM engine block:

  • High-Pressure Fuel Pump (HPFP) & fuel rail assembly

  • Camshaft and Crankshaft Position Sensors

  • Vanos Solenoid Valve & MAP/MAF sensors

  • Alternator, Starter, and A/C Compressor

How to verify: Plug in each connector from your USDM wiring harness to verify a 1:1 match without taut or stretched wires.

3.Mount JCW Turbocharger & Cooling Lines: Turbo & Cooling Setup.

Transfer your original USDM intercooler piping, turbo coolant line heat shields, and exhaust downpipe/catalytic converter to match USDM emissions compliance and chassis clearances.

How to verify: Inspect all turbo oil supply/return lines and coolant hoses for tight clamp retention and zero kinks.

4.Install USDM Flywheel / Flexplate & Engine Mounts: Drivetrain Prep.

Unbolt the JDM drive plate/flywheel. Inspect the rear main seal for any sign of oil seepage (replace with a new seal if needed). Transfer your USDM flywheel (6-speed manual) or flexplate (automatic) using fresh threadlocker on the bolts.

How to verify: Torque flywheel/flexplate bolts to factory specifications in a crisscross pattern and rotate the crank 360 degrees by hand.

5.Fluid Fill, Priming & Initial Startup: Final Assembly.
  1. Install the engine into the engine bay and bolt it securely to the transmission and subframe mounts.

  2. Fill with fully synthetic 5W-30 motor oil and fresh BMW/Mini approved coolant.

  3. Prime the oil system by cranking the engine with fuel pump fuse pulled prior to full start.

How to verify: Start the engine, verify oil pressure light extinguishes immediately, bleed the cooling system thoroughly, and scan for active diagnostic fault codes.
