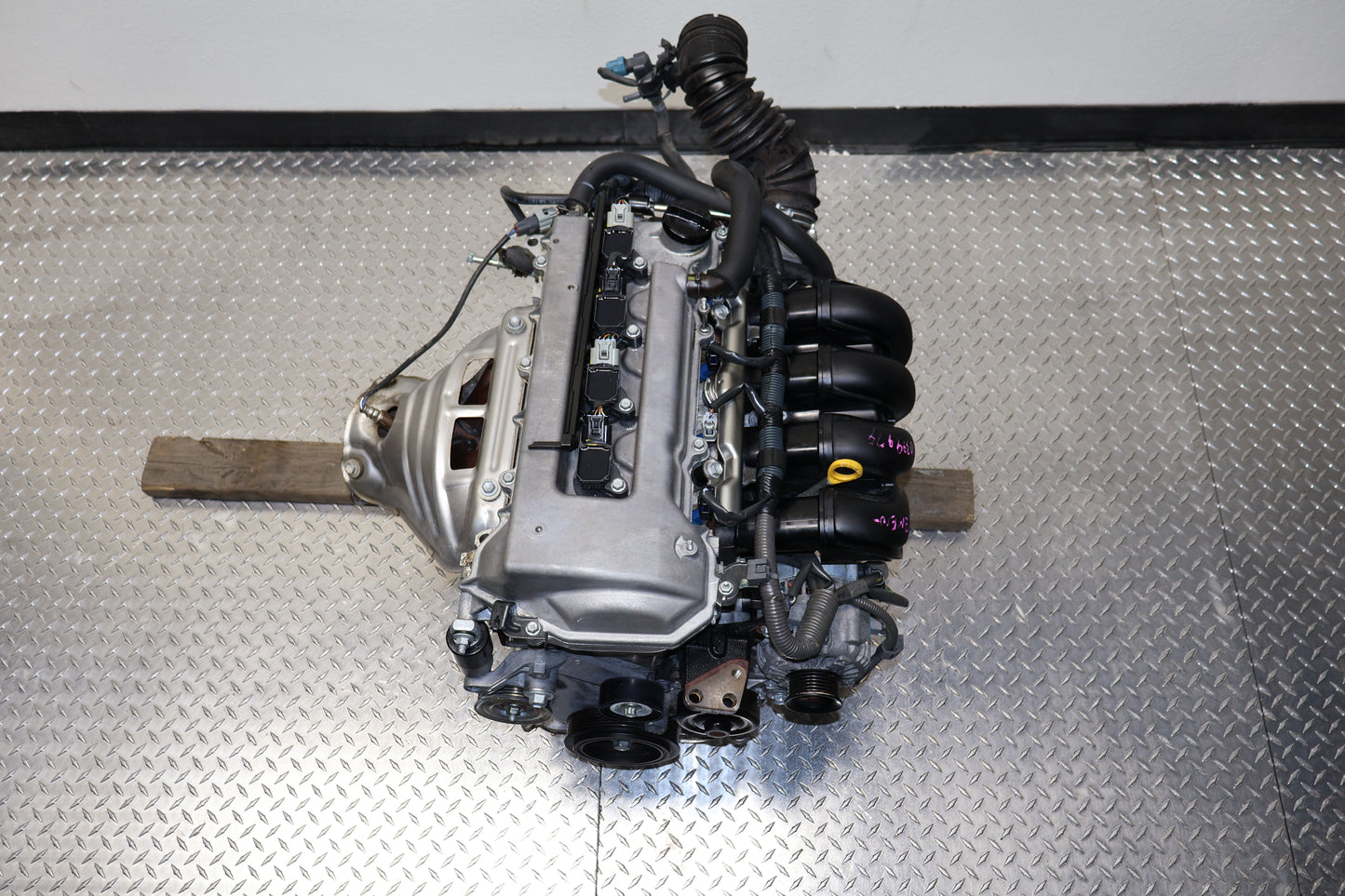

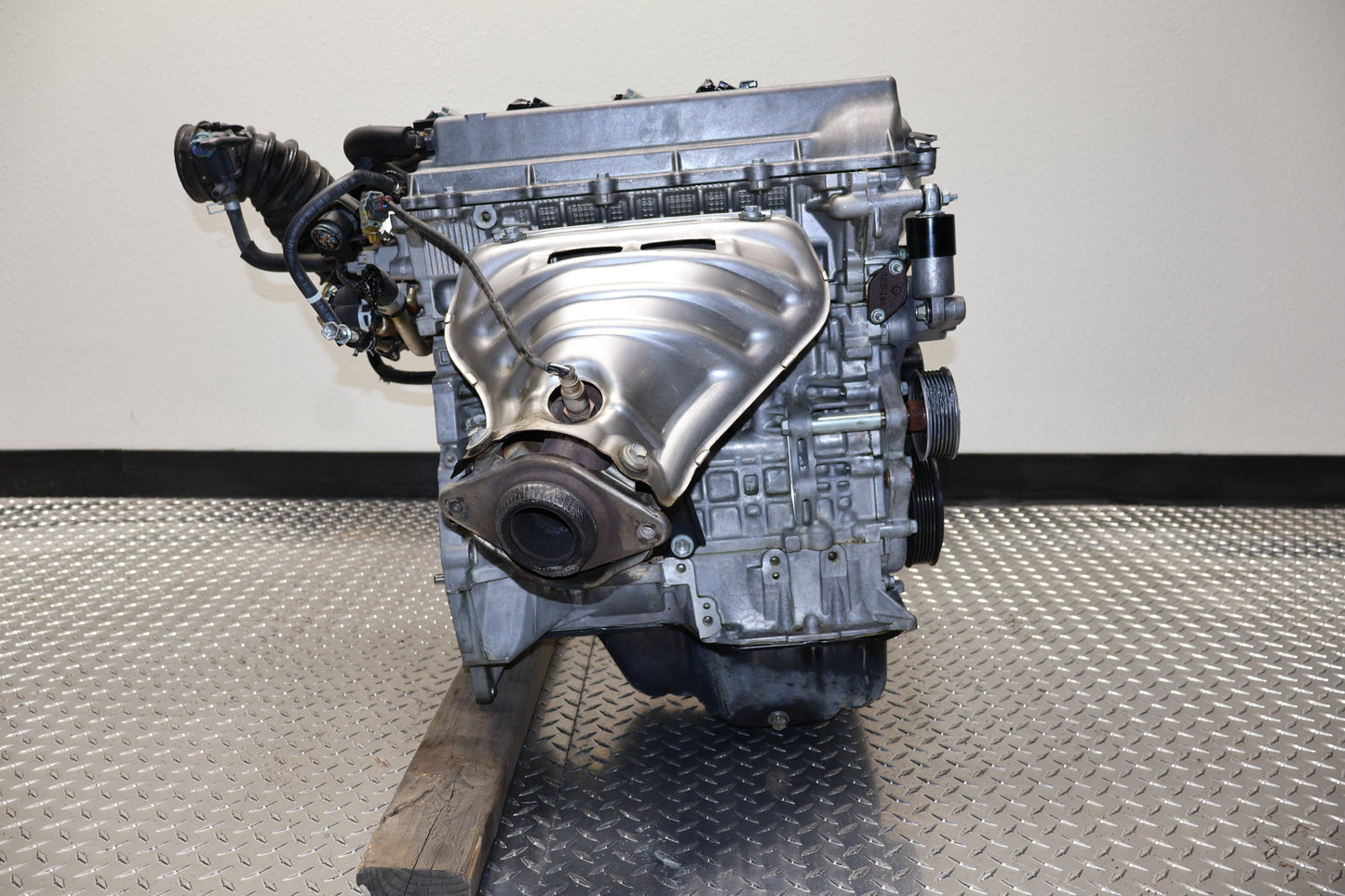

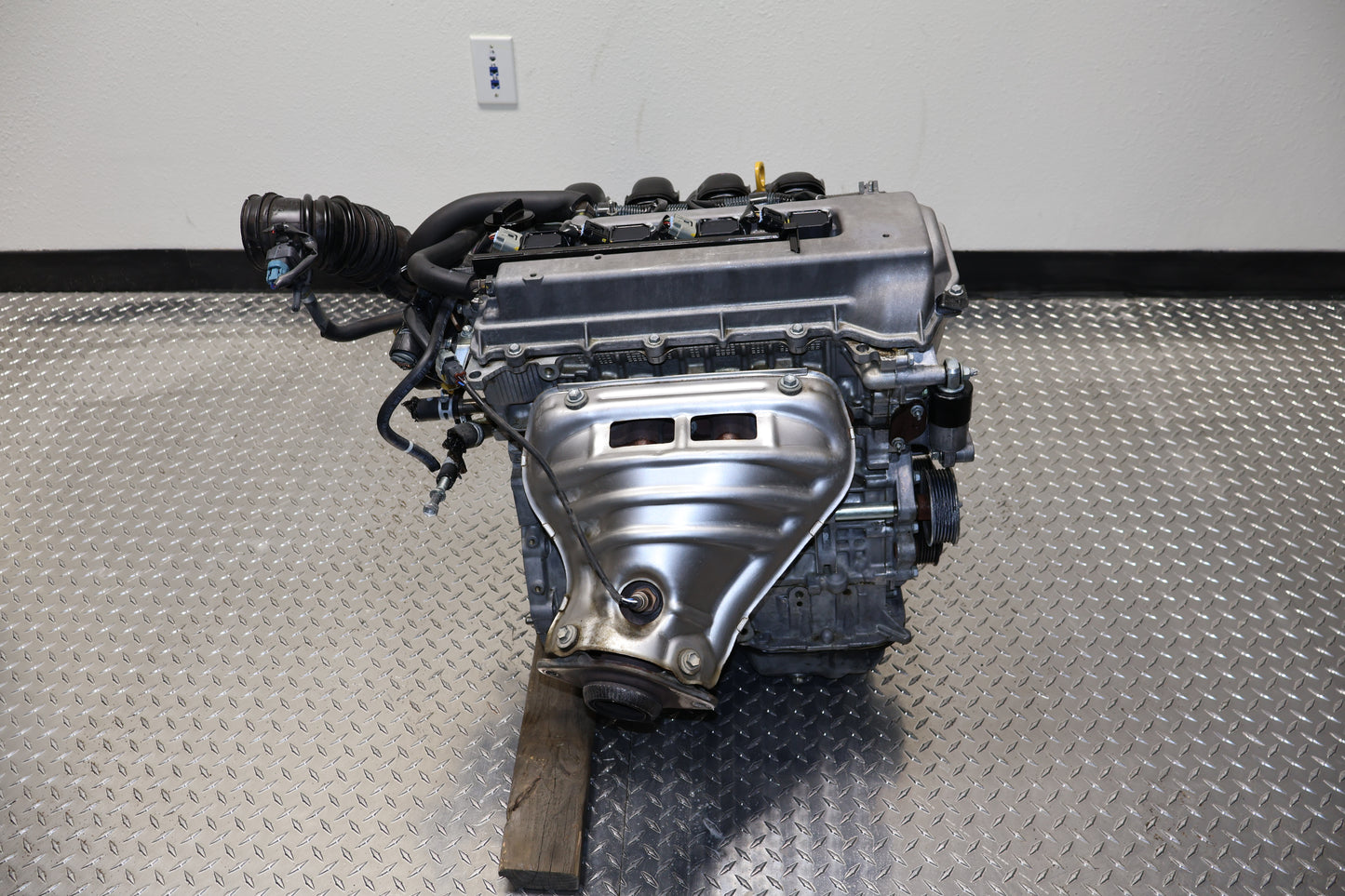

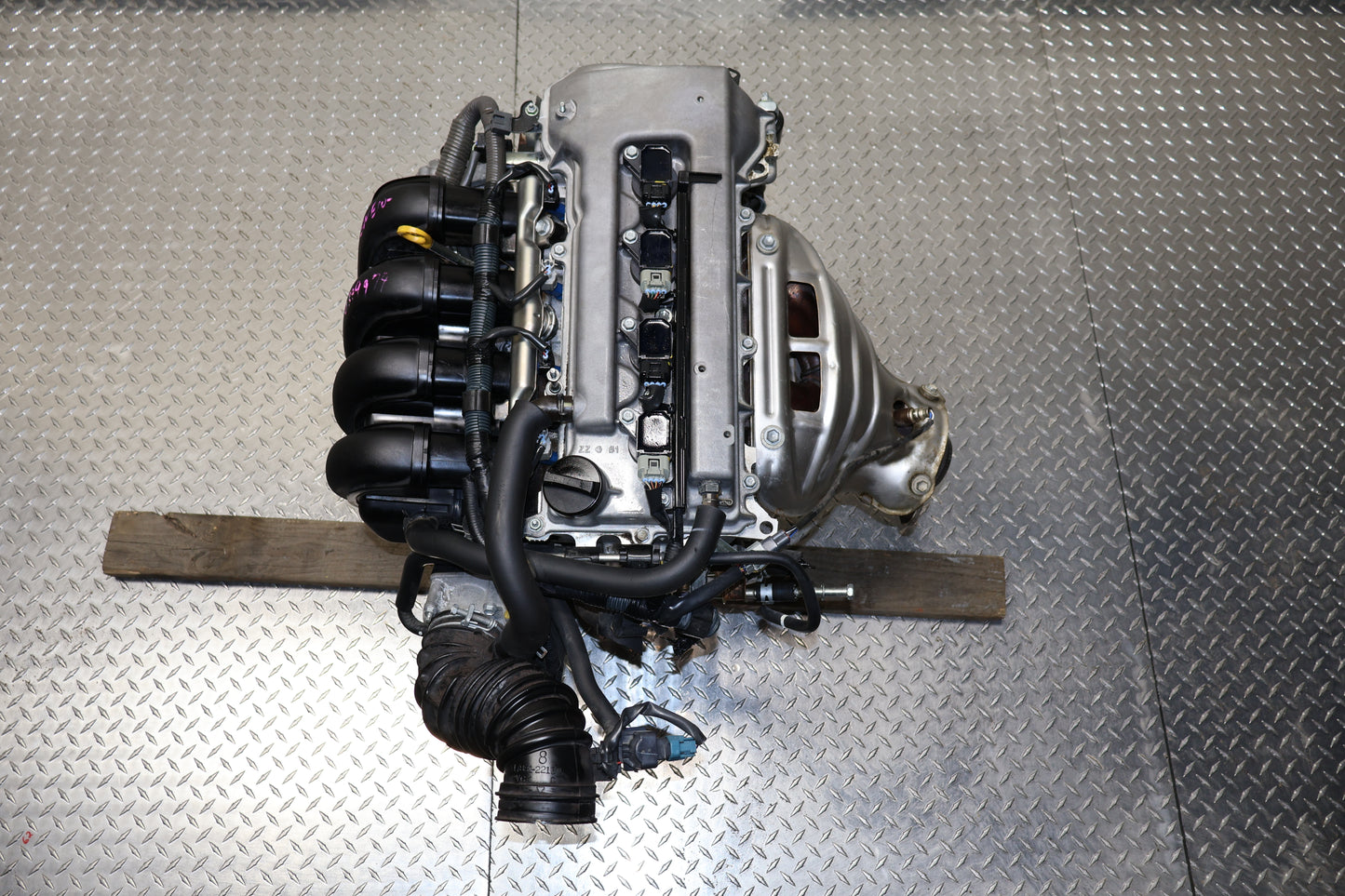

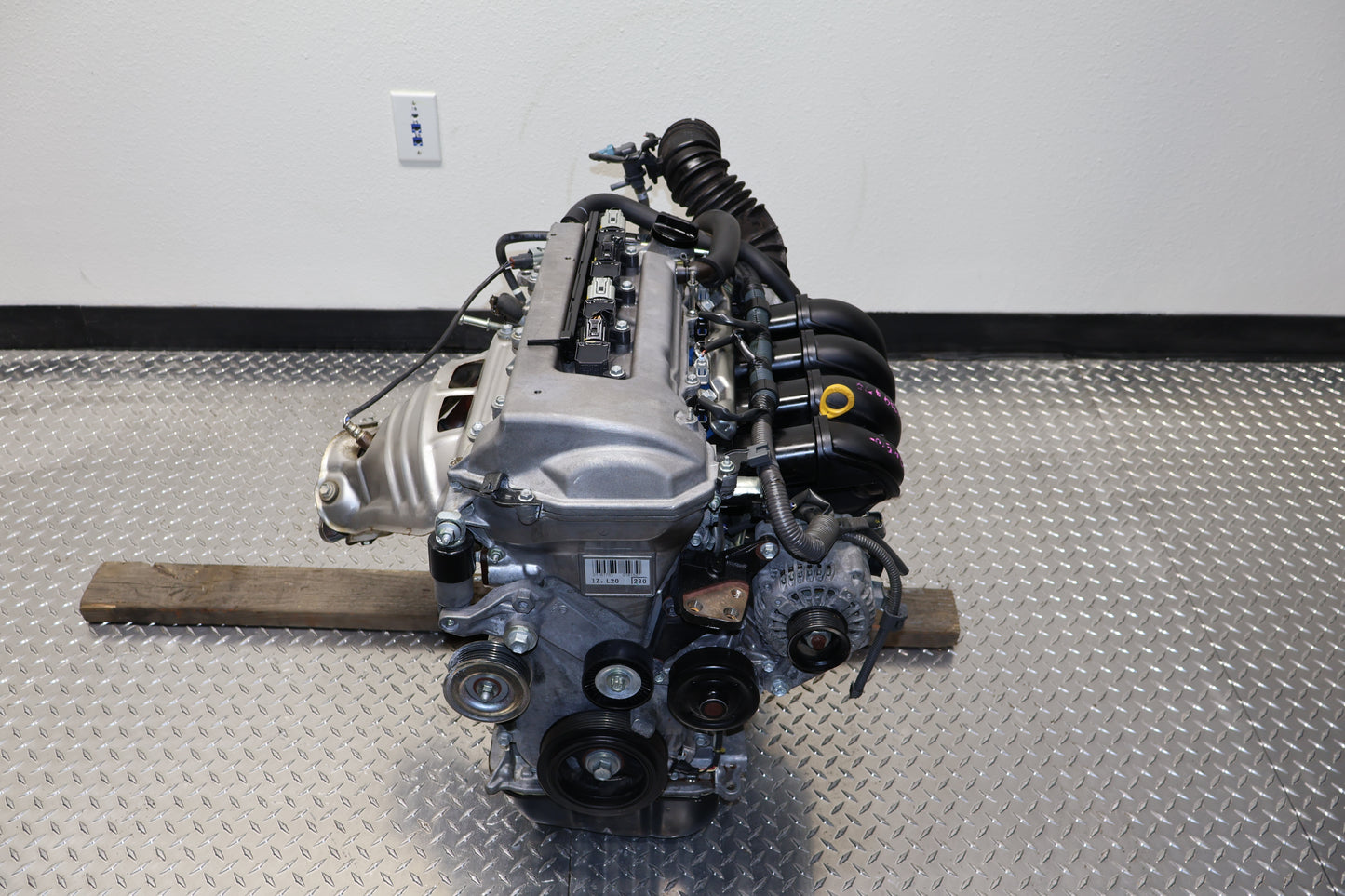

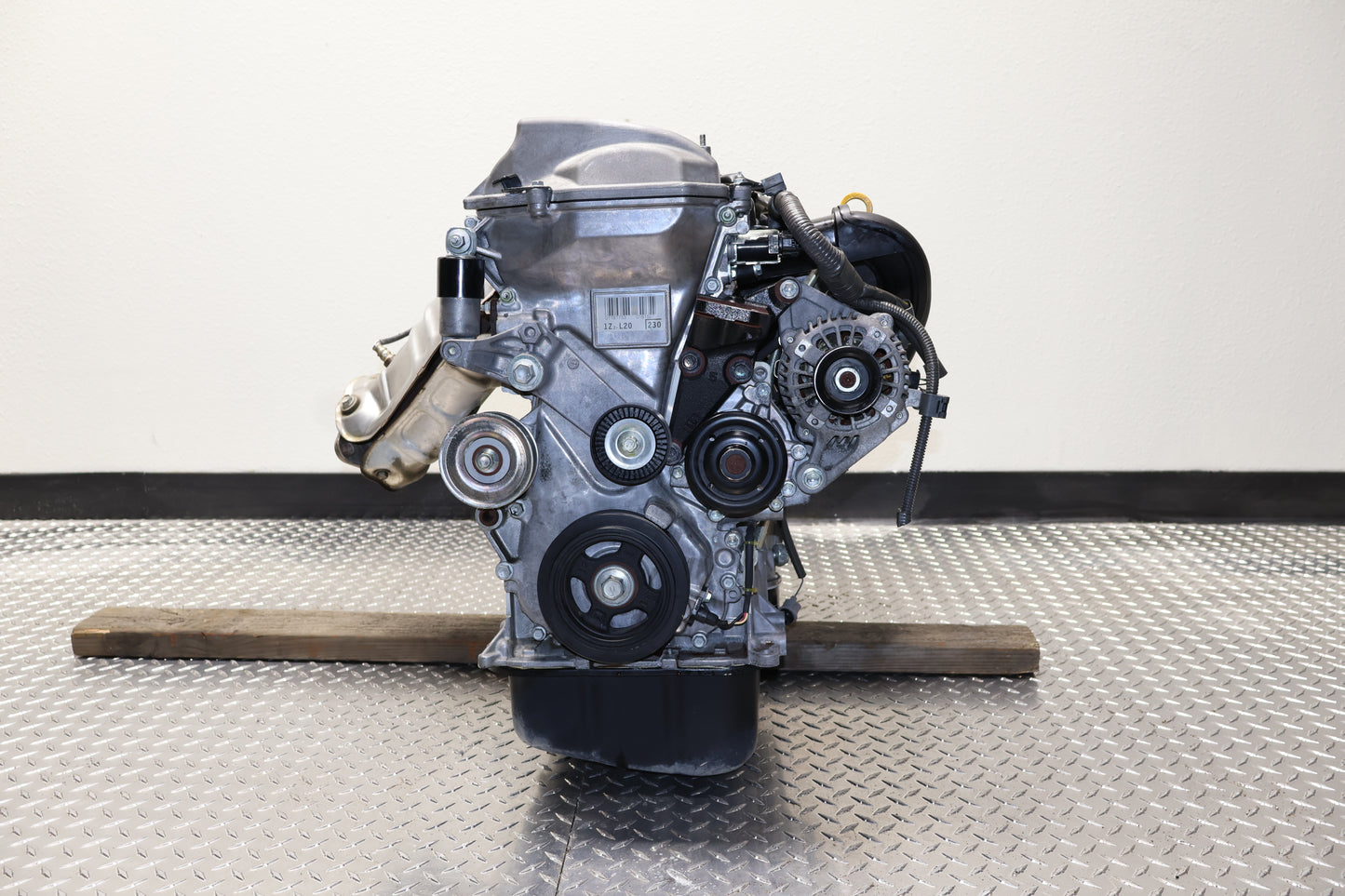

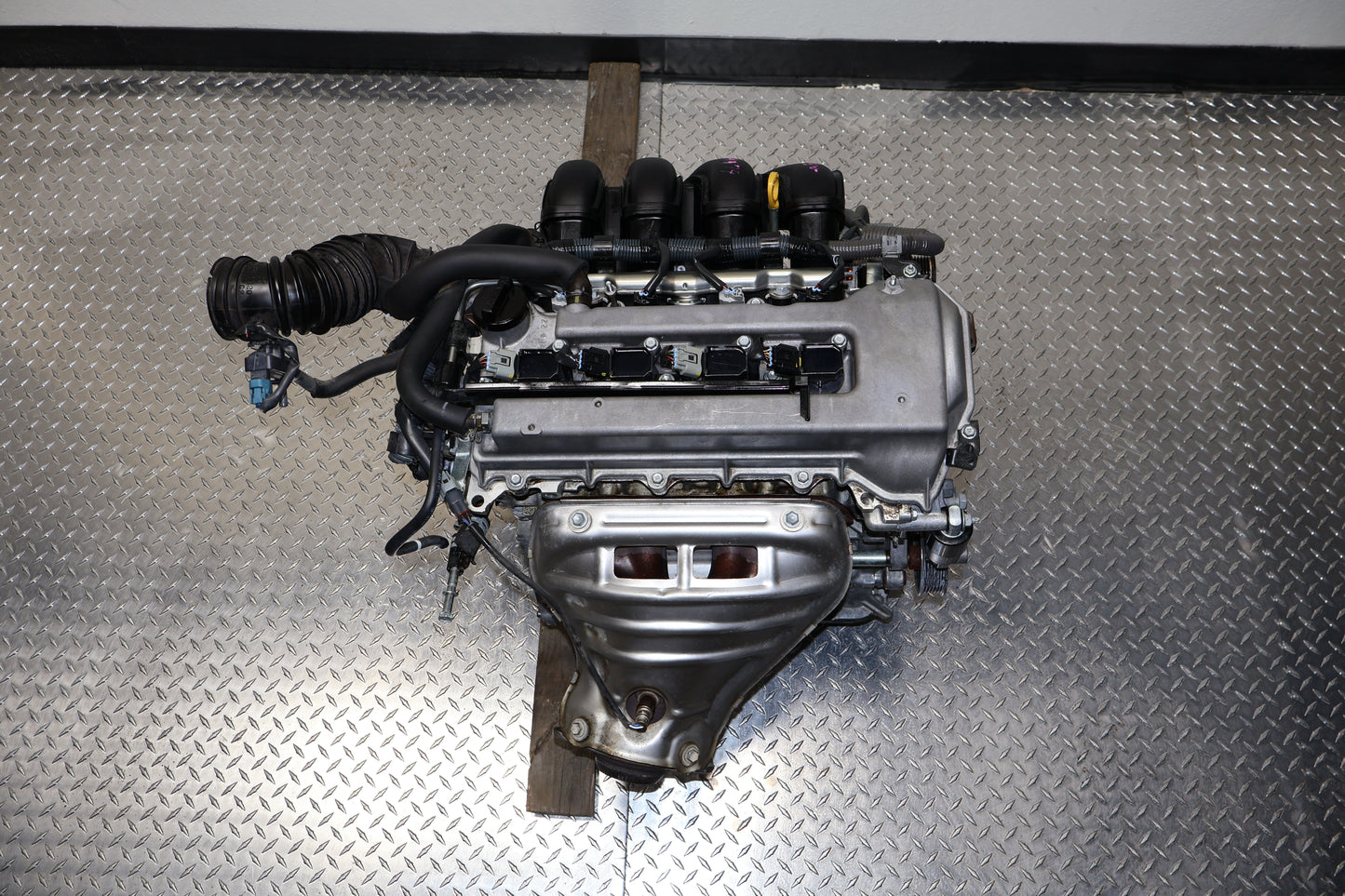

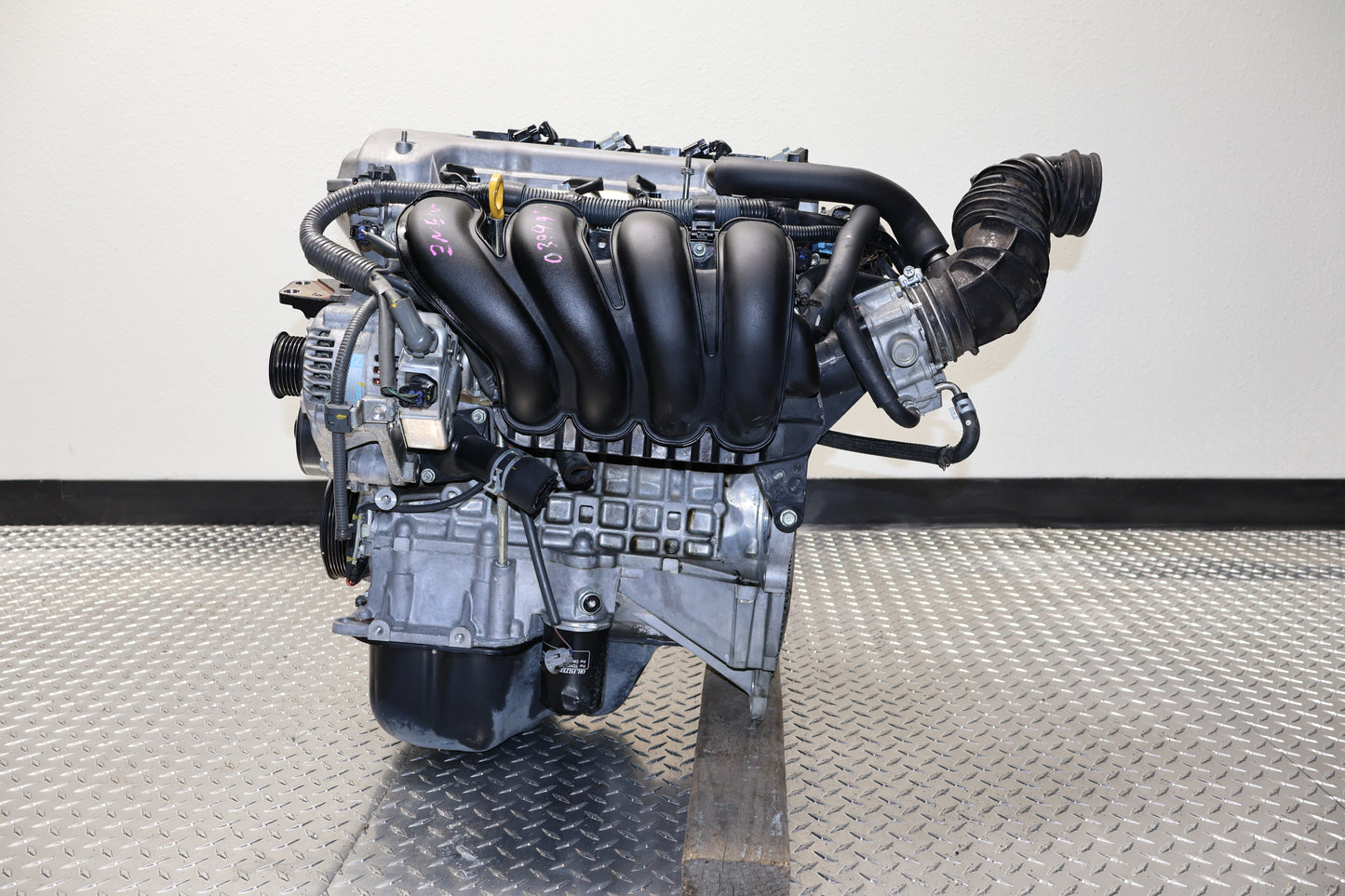

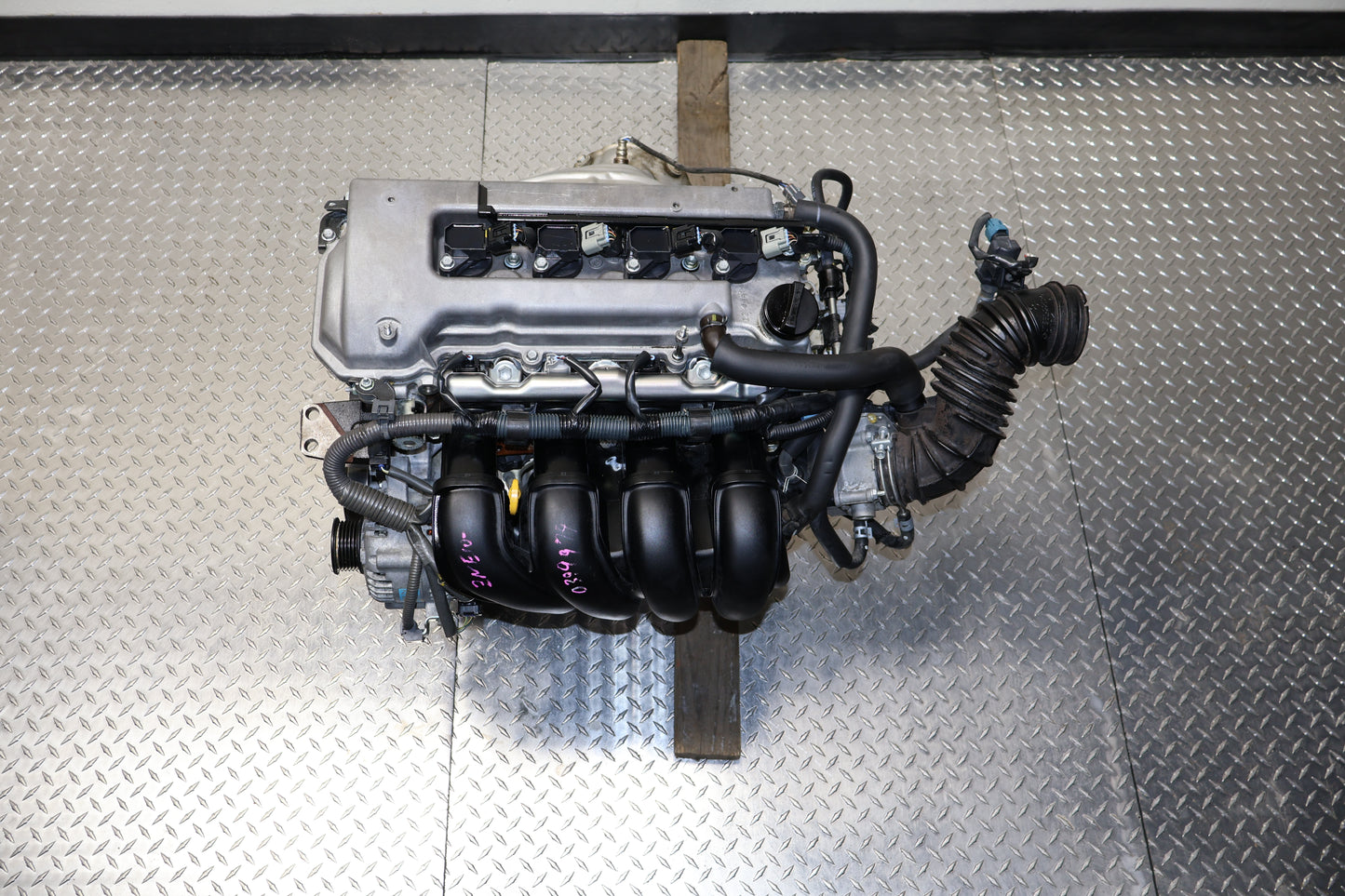

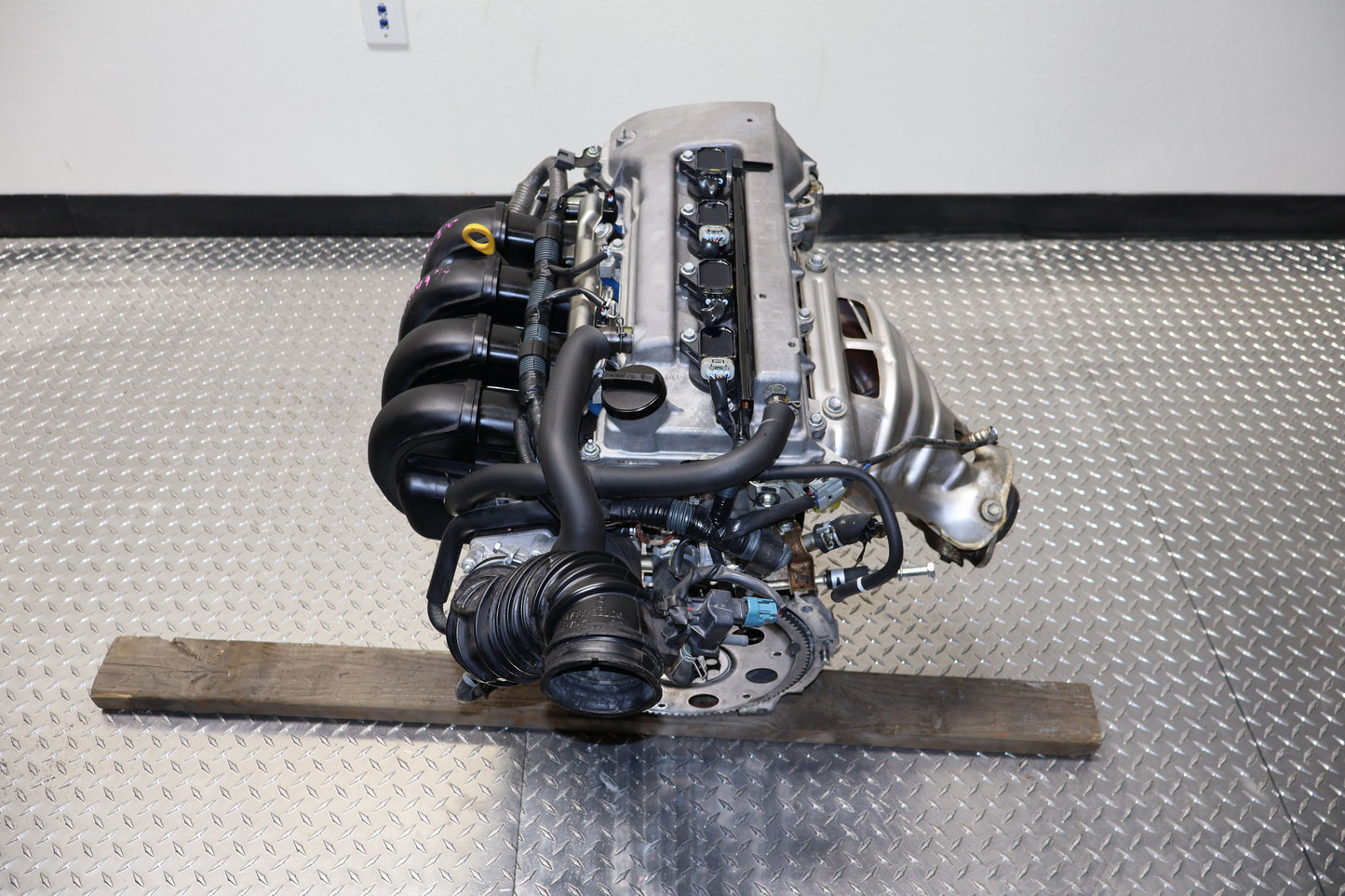

2003–2005 Pontiac Vibe Engine | JDM 1.8L 1ZZ-FE VVT-i

Vehicle Fitment

This engine is a direct long-block replacement for the following North American models:

• Pontiac Vibe (Base): 2003, 2004, 2005

• Trims: Base (Front-Wheel Drive and AWD models)

• Chassis Cross-Compatibility: Also fits 2003–2008 Toyota Matrix (Base/XR) and 2000–2008 Toyota Corolla.

• Compatibility Note: This engine is for the Vibe Base and is not compatible with the Vibe GT (2ZZ-GE).

JDM to USDM Installation & Swap Guide

To ensure 100% compatibility and a seamless "Plug-and-Play" installation into your USDM Vibe, professional installers recommend the following "External Swap" steps:

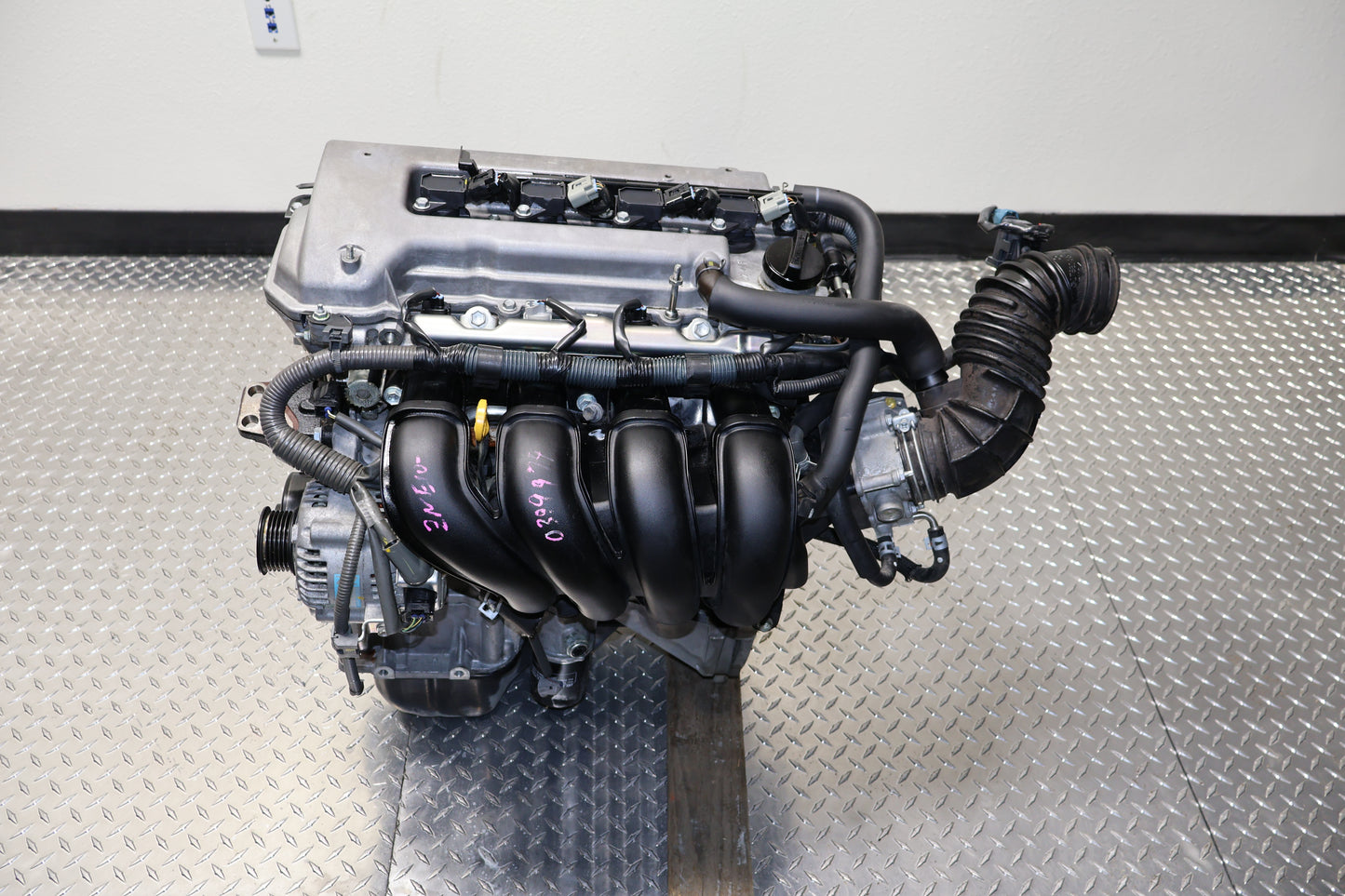

1. Intake & Exhaust Manifolds: You must transfer your original USDM Intake Manifold and Exhaust Manifold. JDM versions may have different vacuum line routing or lack the specific emissions ports (EGR/O2) required for North American smog compliance.

2. Engine Sensors: Transfer your original USDM Camshaft, Crankshaft, and Knock Sensors to the JDM block to ensure the ECU receives familiar signals and prevents Check Engine Lights (CEL).

3. Wiring Harness: Always retain and use your original USDM Engine Wiring Harness. JDM harnesses are configured for right-hand drive and will not interface with your chassis or fuse box.

4. Valve Cover: If your USDM Vibe has specific PCV valve locations or breather hose configurations, swap your original Valve Cover onto the JDM engine.

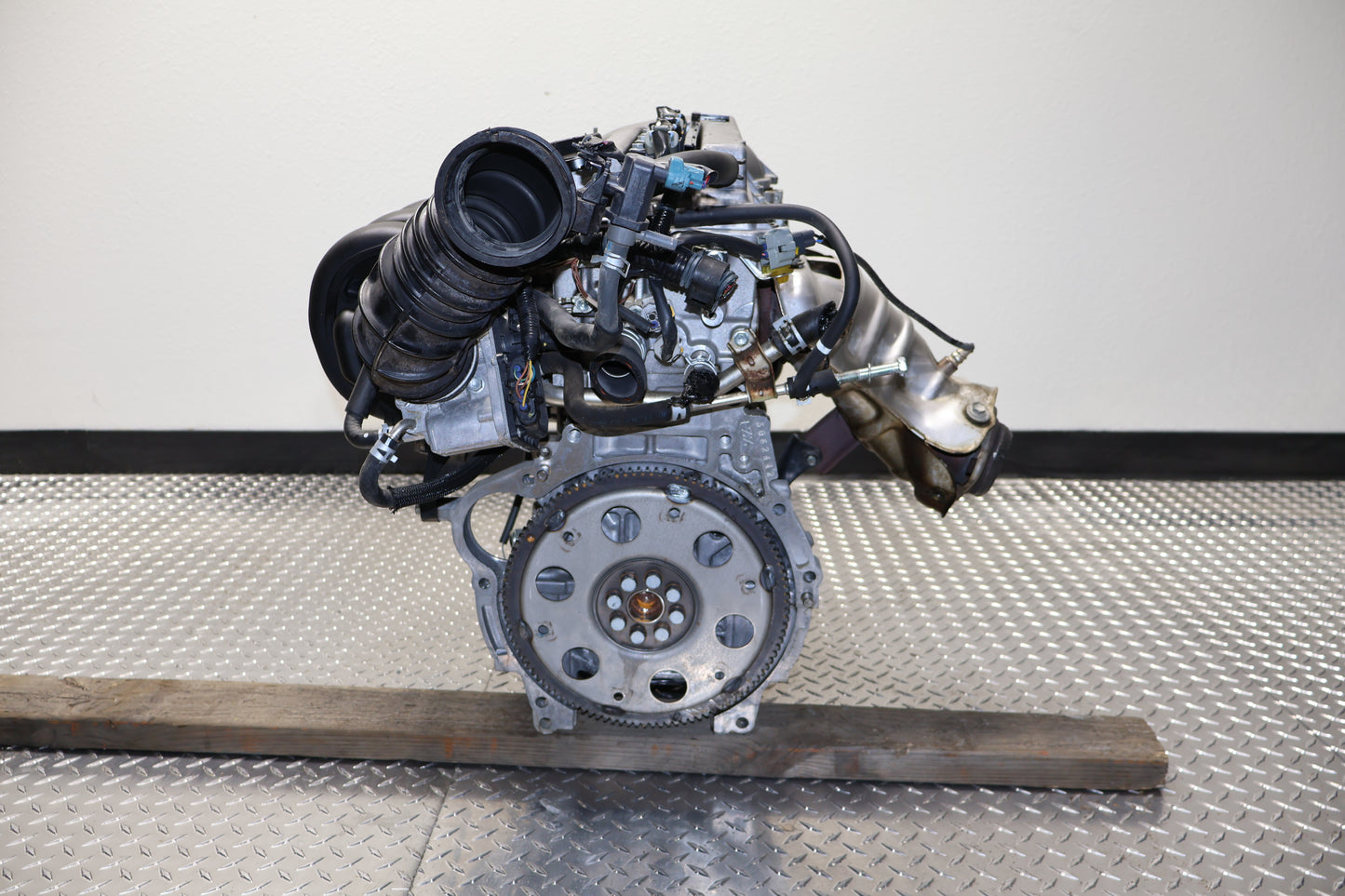

5. Flywheel/Flexplate: Ensure you use the flywheel (Manual) or flexplate (Automatic) that matches your specific transmission.

6. Oil Pan: Inspect the JDM oil pan; if the shape differs slightly from your original (especially on AWD models), swap your USDM pan and pickup tube to ensure proper clearance with the subframe and transfer case.
