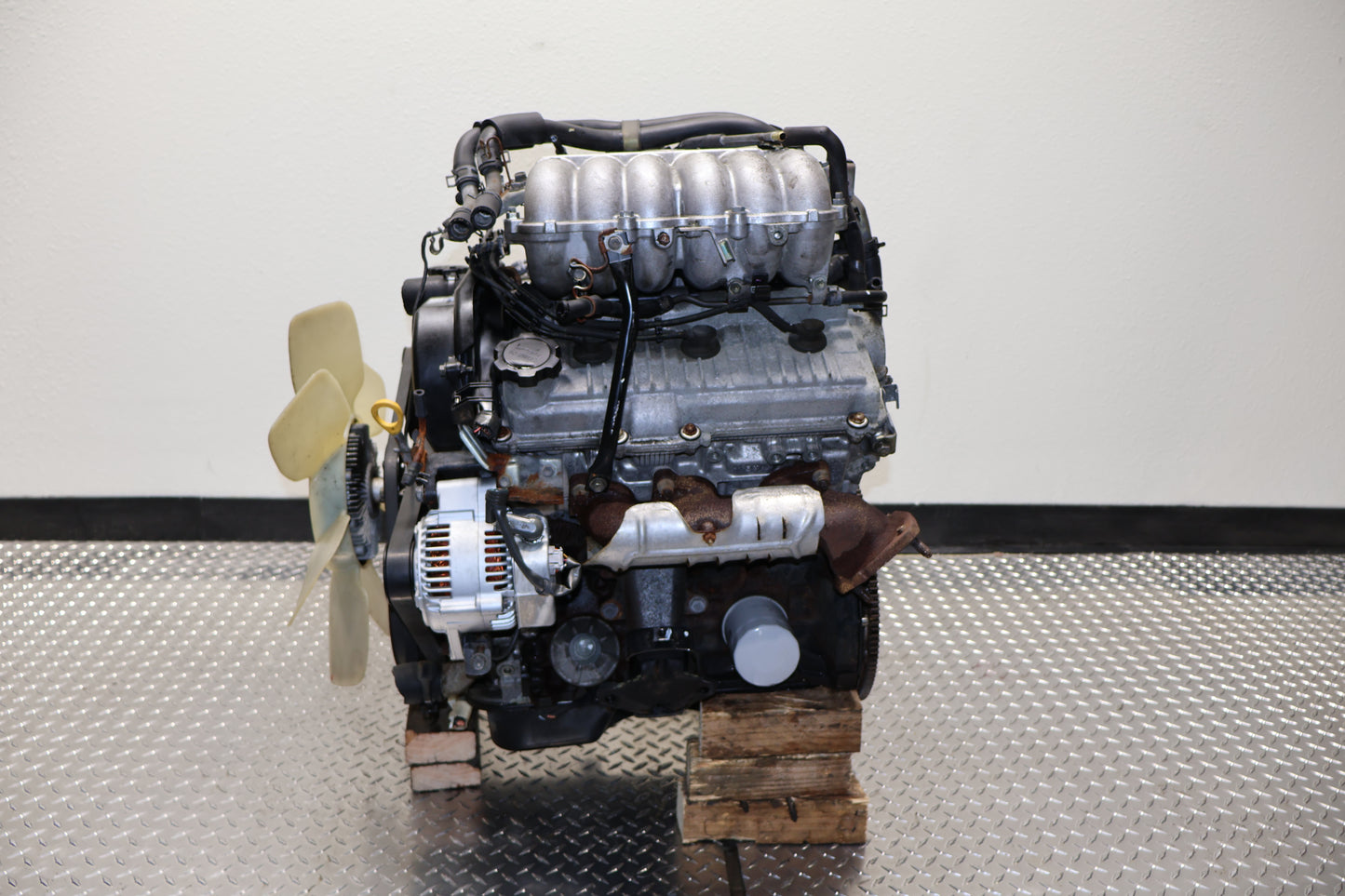

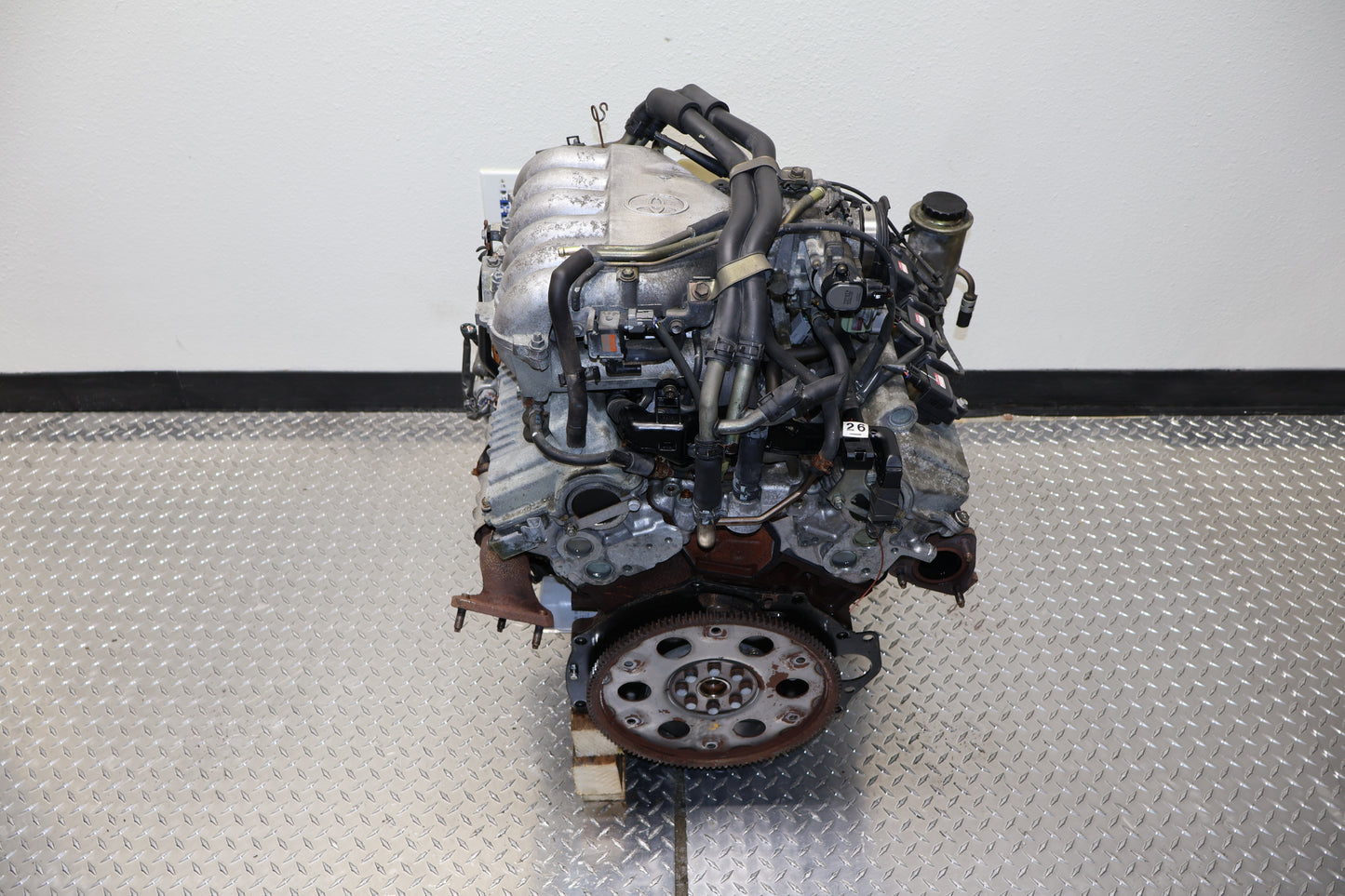

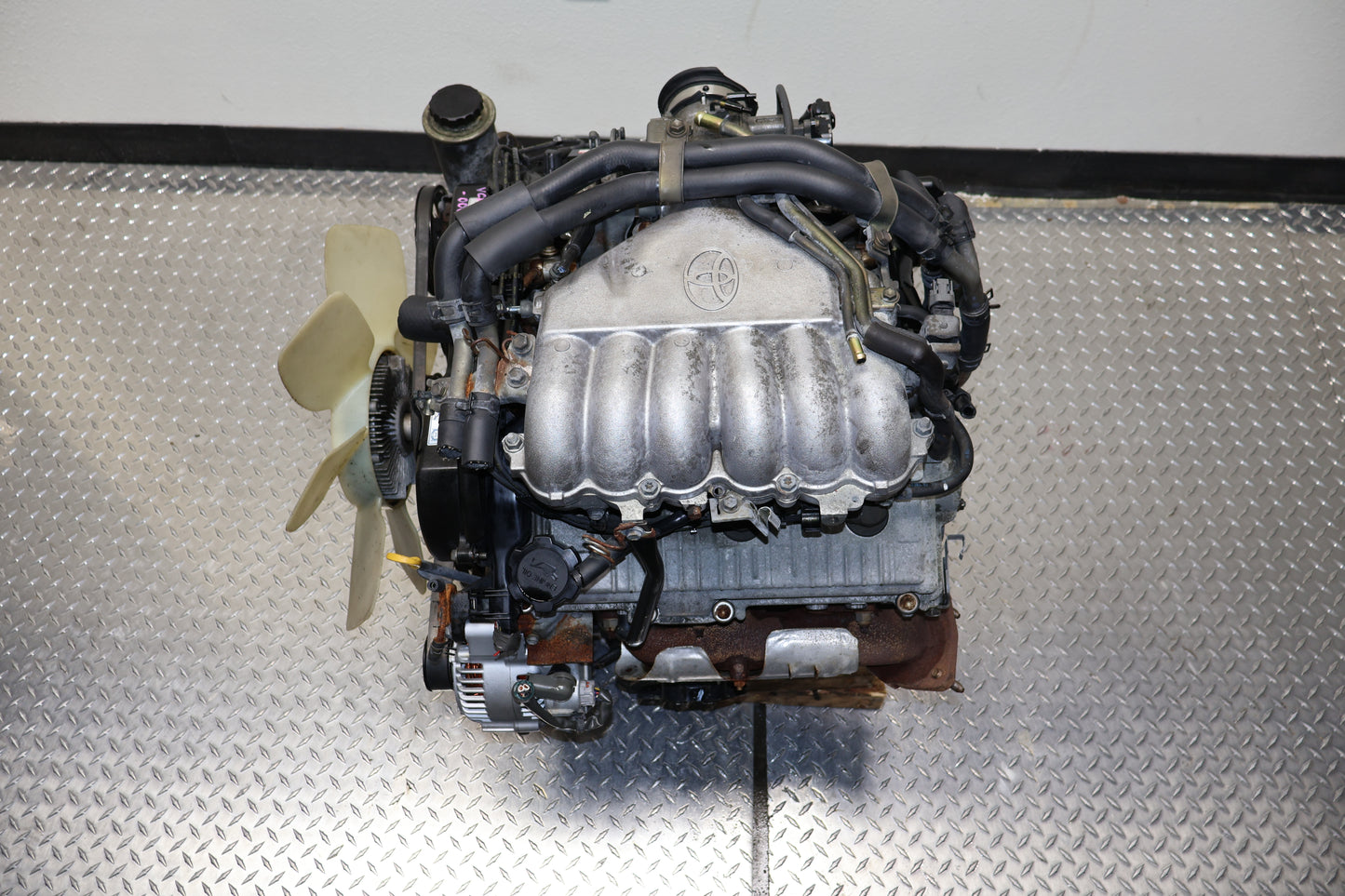

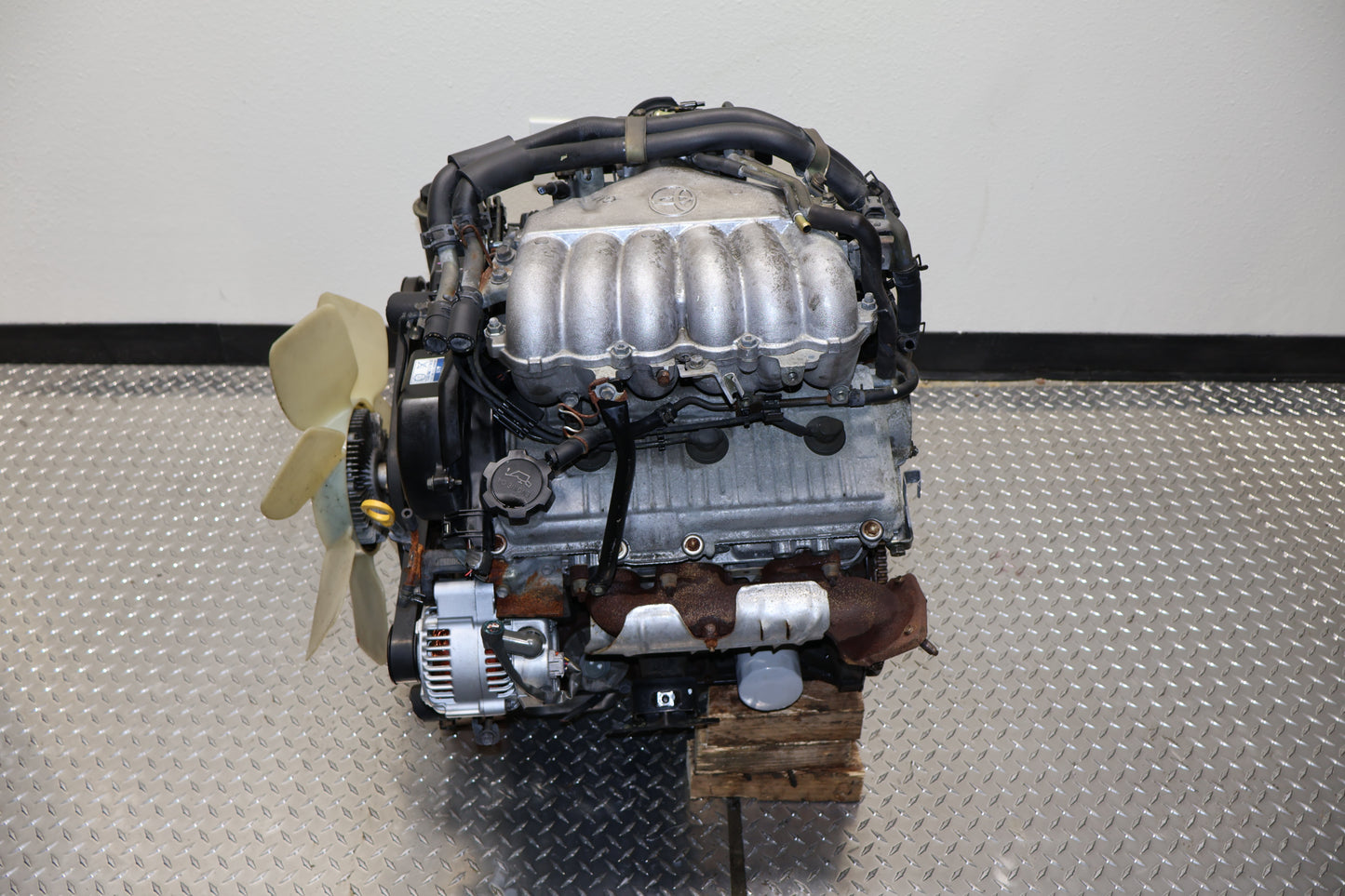

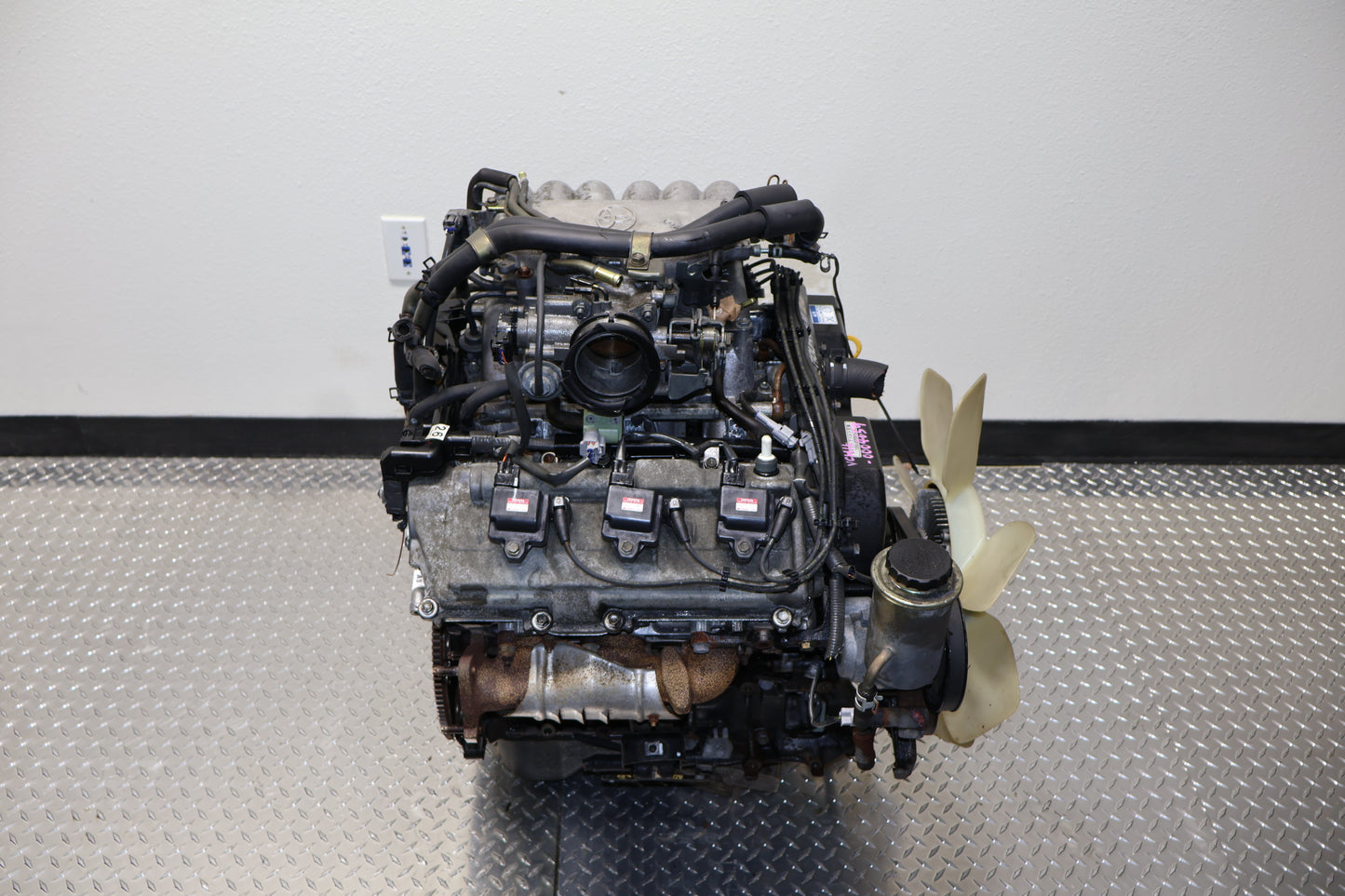

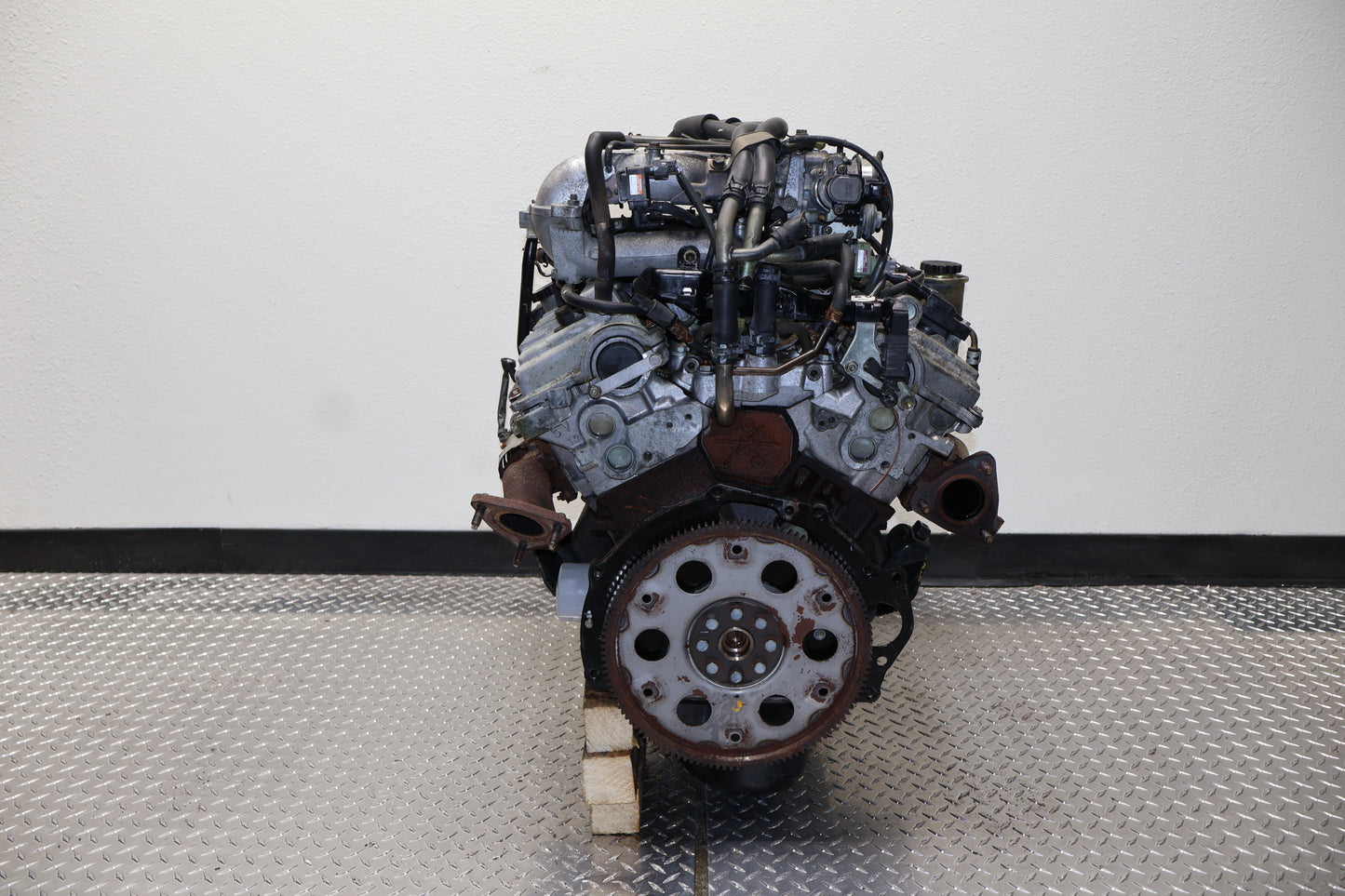

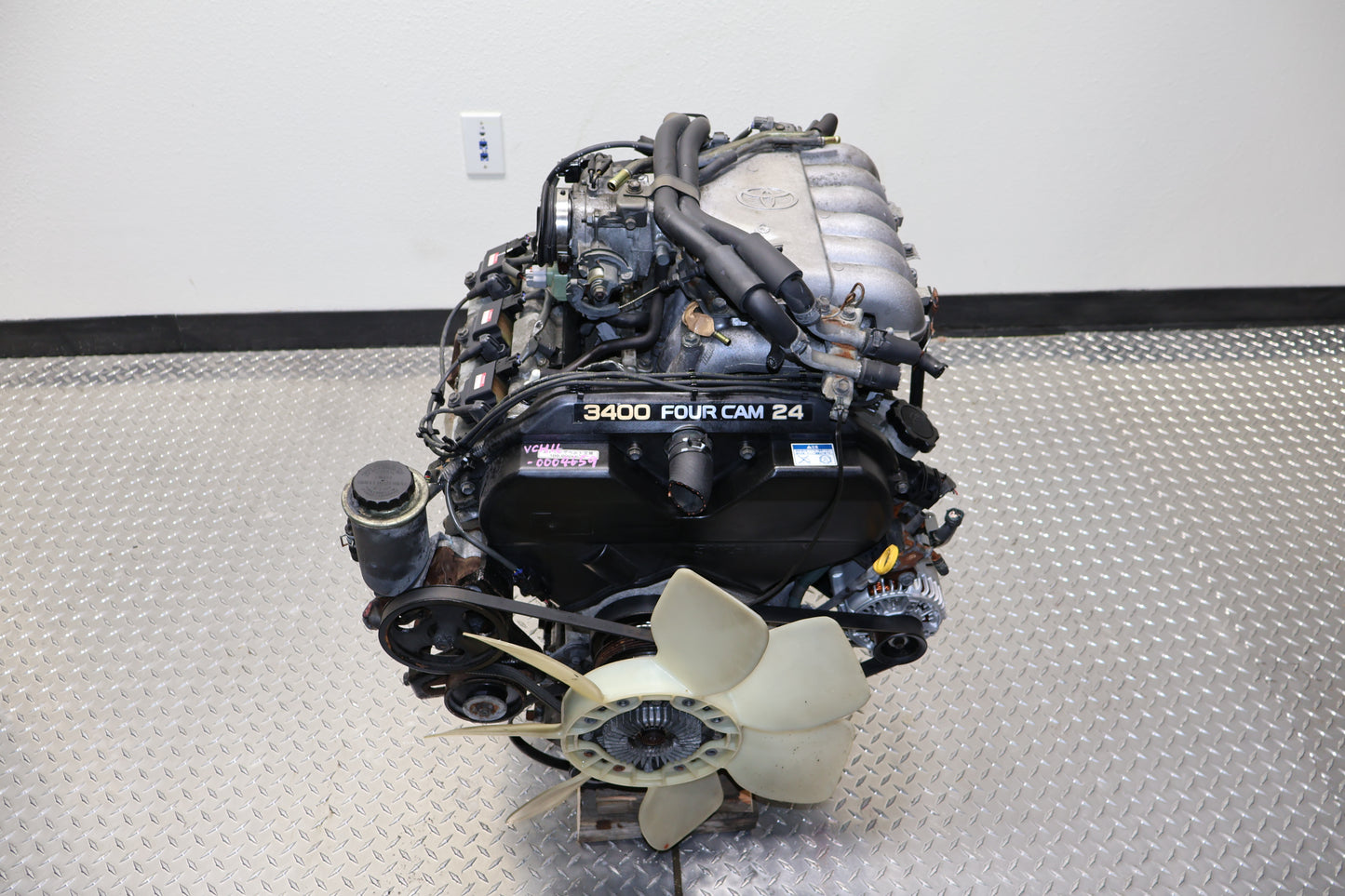

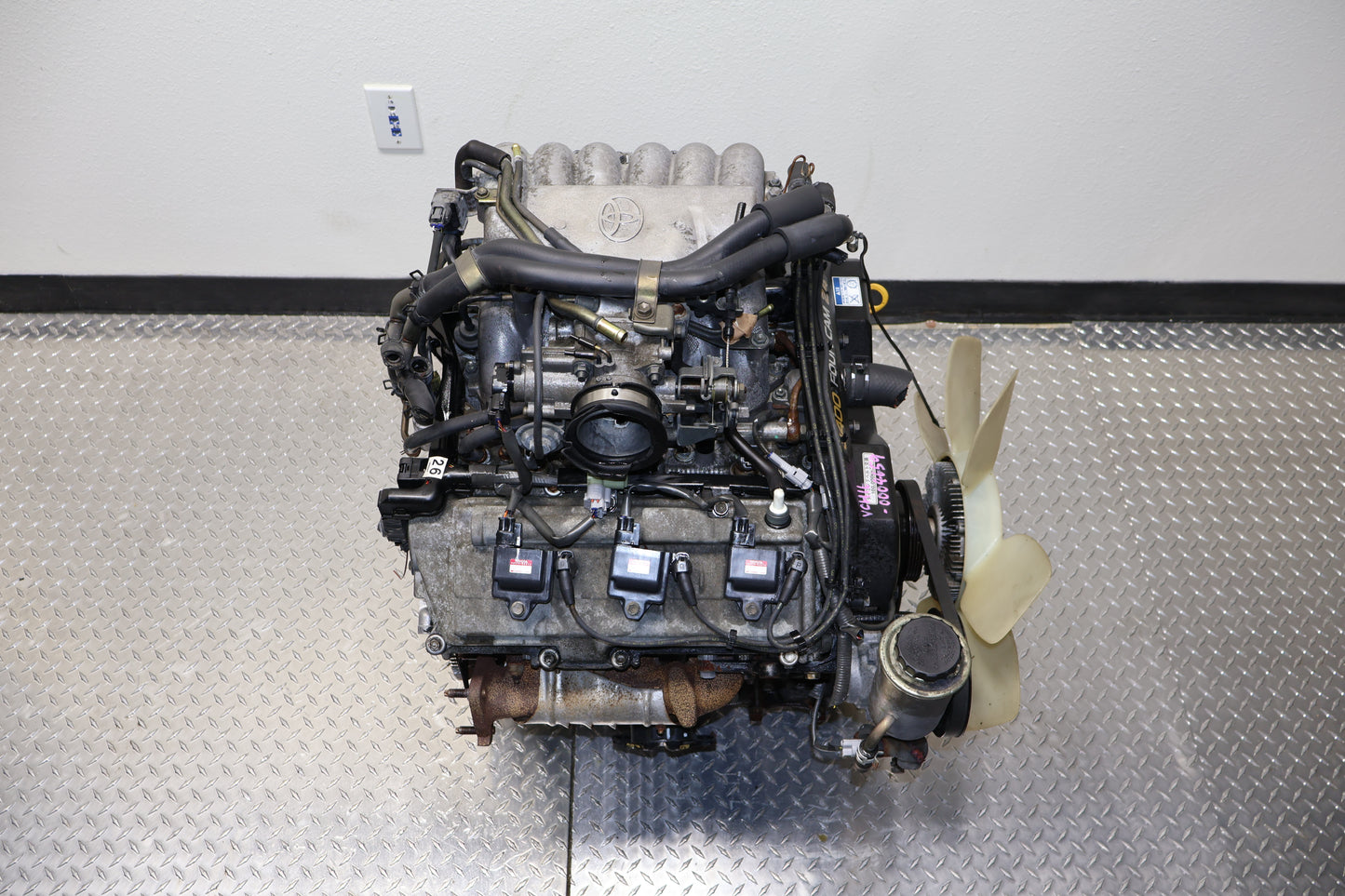

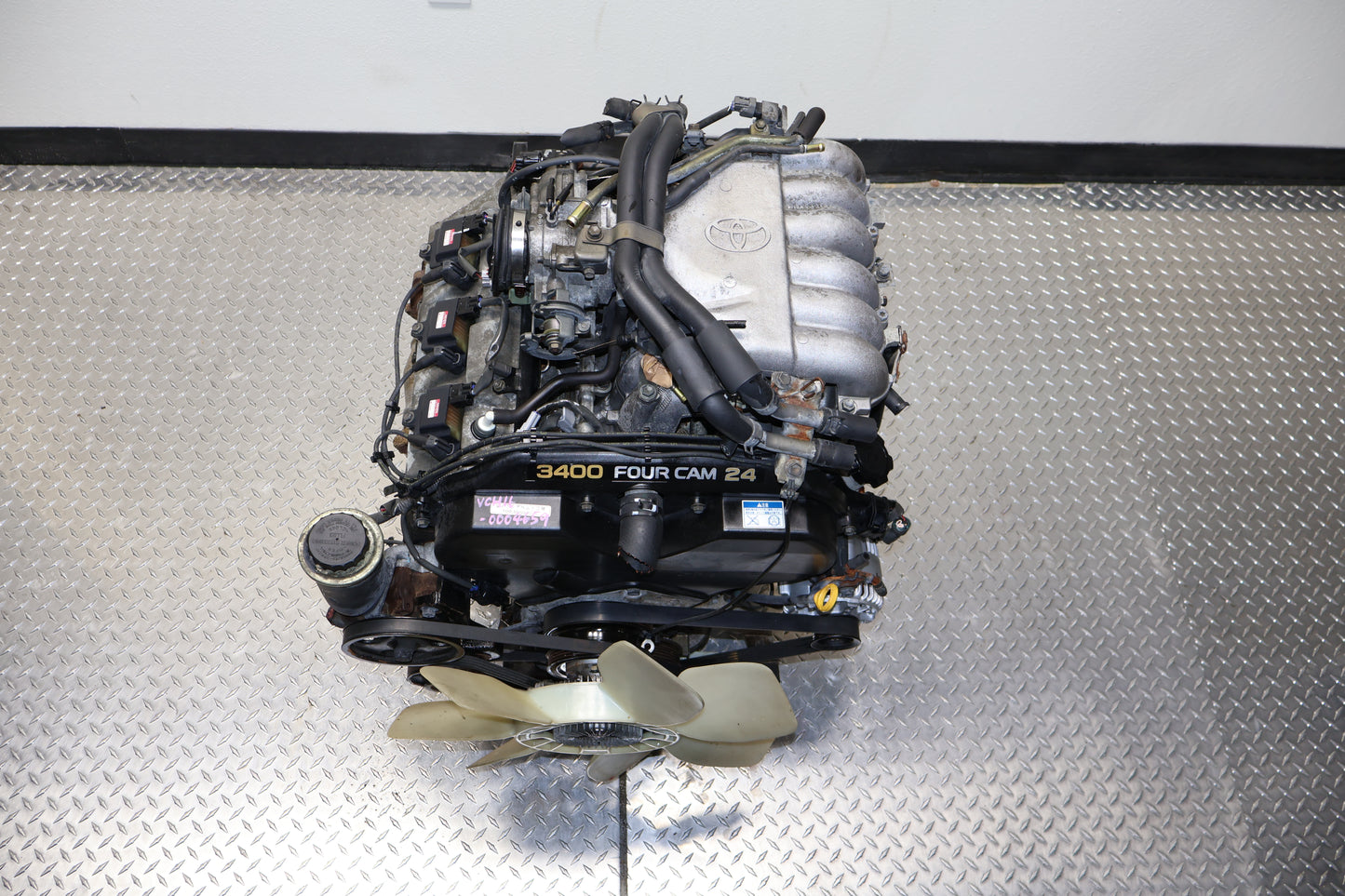

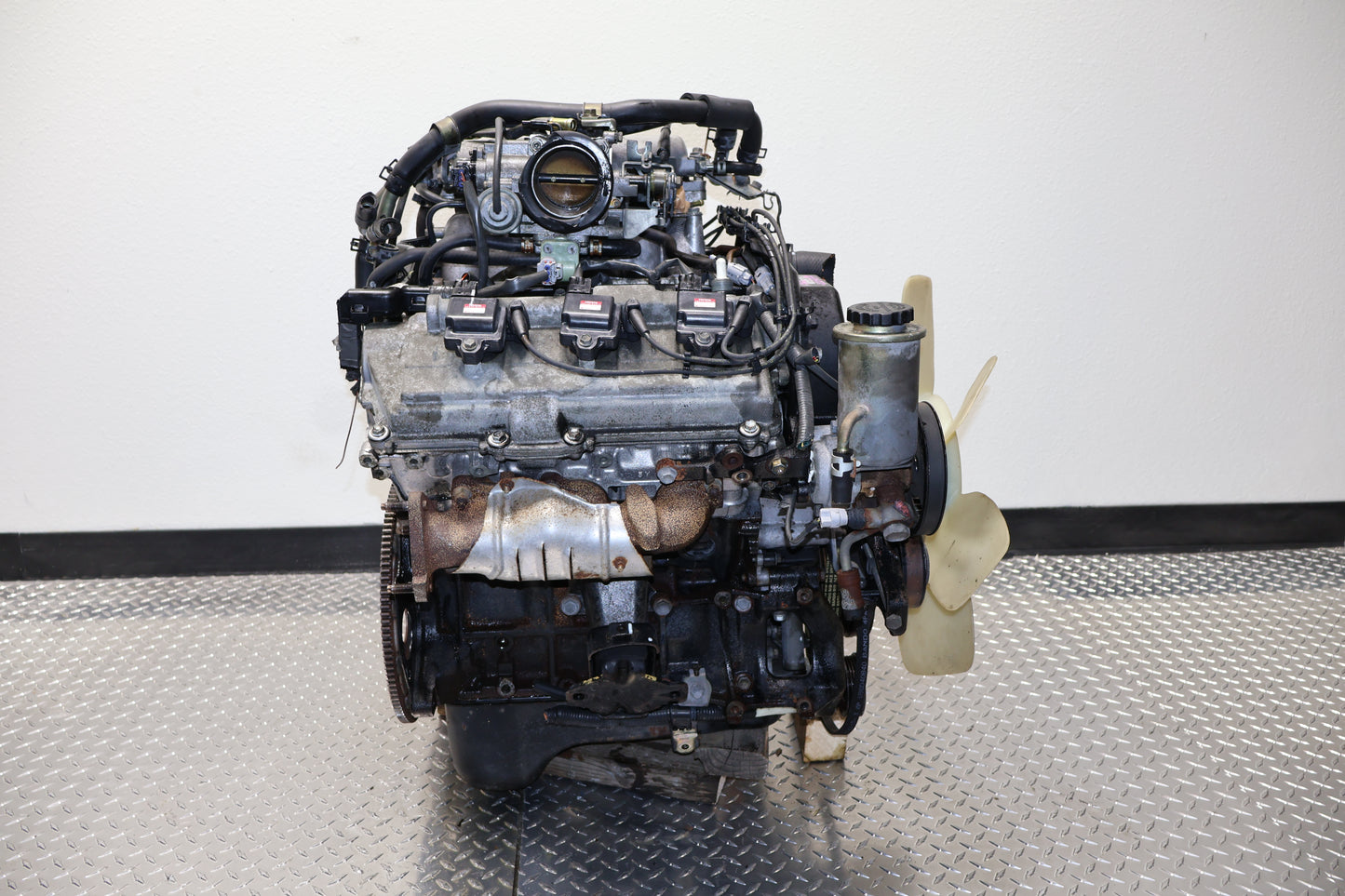

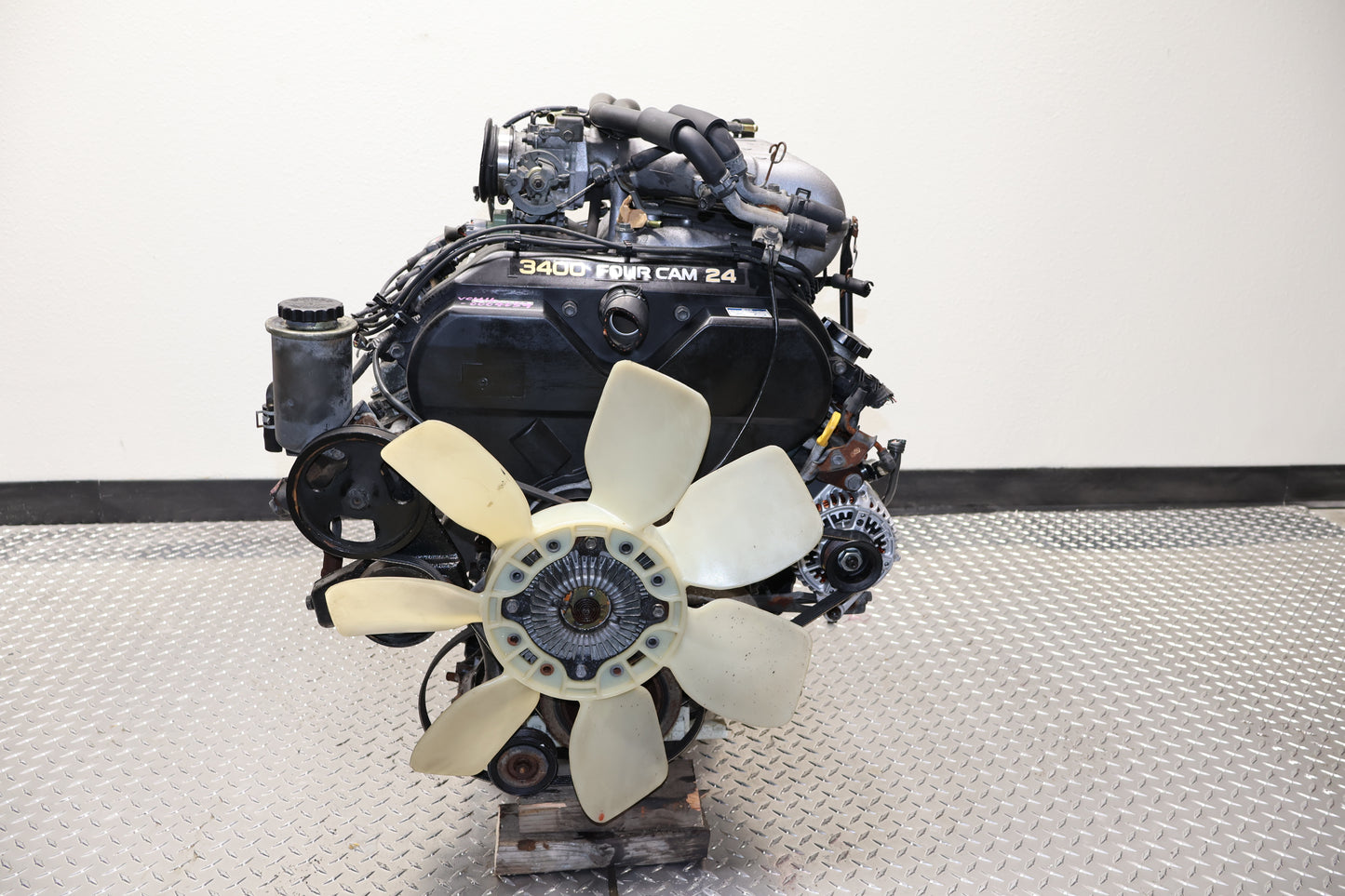

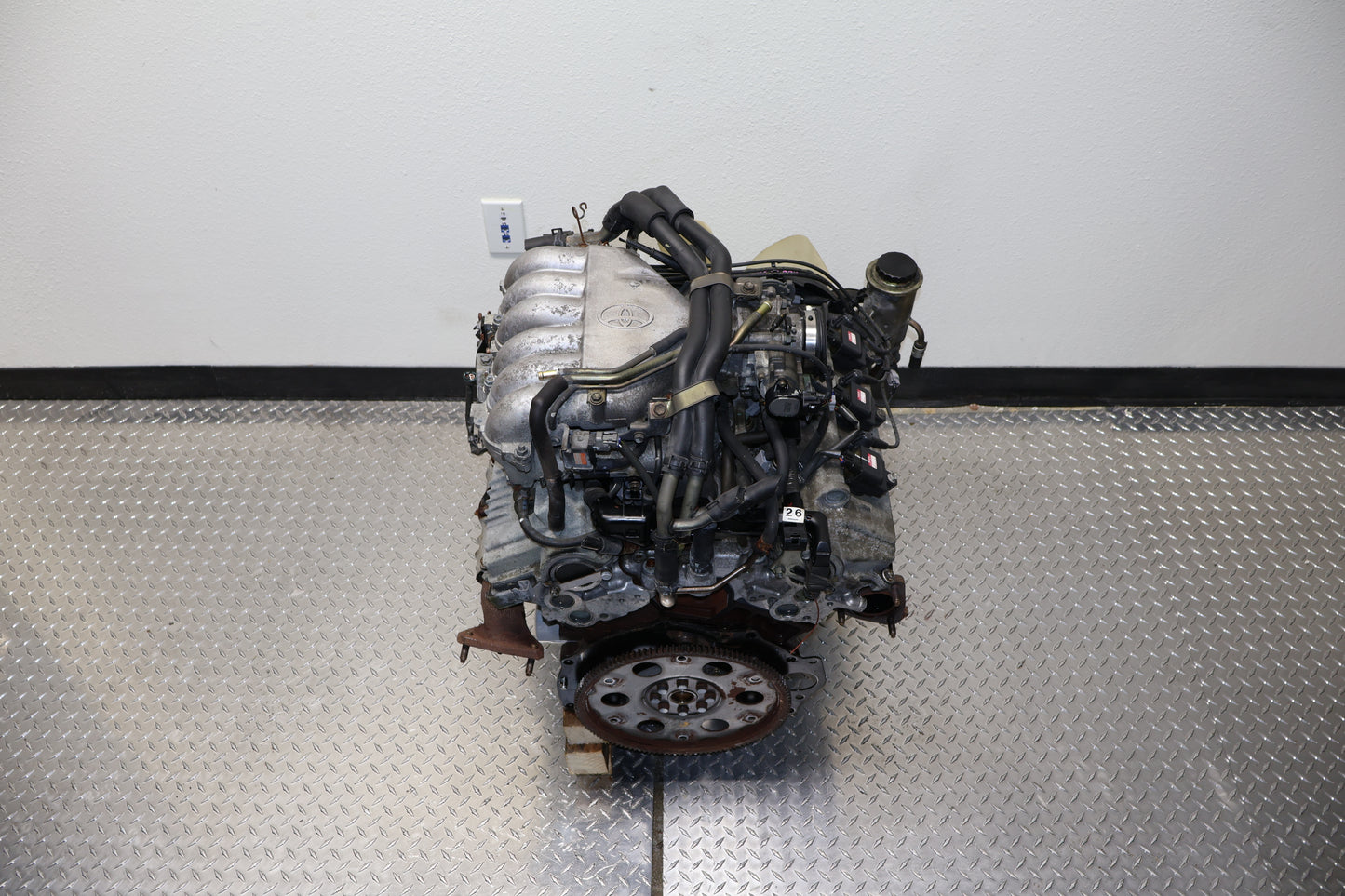

1995-2002 Toyota Tacoma JDM 5VZ-FE Motor | 3.4L V6 DOHC 24Valve Four Cam Engine

Vehicle Fitment

This engine is a direct long-block replacement for the following North American models:

• Toyota Tacoma: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 (3.4L V6 Models)

• Toyota 4Runner: 1996–2002 (3.4L V6 Models)

• Toyota T100: 1995–1998 (3.4L V6 Models)

• Toyota Tundra: 2000–2004 (3.4L V6 Models)

• Compatibility Note: This is the 3.4L 5VZ-FE. It is not a direct replacement for the 2.4L 2RZ-FE or 2.7L 3RZ-FE 4-cylinder engines without a complete conversion.

JDM to USDM Installation & Swap Guide

To ensure 100% compatibility and maintain your Tacoma’s emissions and drivability, professional Toyota technicians recommend the following "External Swap" steps:

1. Intake & Exhaust Manifolds: You must transfer your original USDM Intake Manifold and Exhaust Manifolds. JDM versions may lack specific EGR ports, vacuum bungs, or oxygen sensor locations required for North American OBDII emissions compliance.

2. Wiring Harness: Always retain and use your original USDM Engine Wiring Harness. JDM harnesses are configured for right-hand drive and will not interface with your Tacoma’s chassis bulkheads or fuse box.

3. Engine Sensors: Transfer your original USDM Camshaft and Crankshaft Sensors. Toyota electronics are highly sensitive; using your original "known-good" sensors prevents intermittent signal issues or CEL codes.

4. Oil Pan: Inspect the JDM oil pan. Depending on the donor vehicle (e.g., Granvia or HiAce), you must transfer your original USDM Tacoma Oil Pan and Pickup Tube to ensure proper subframe and front differential clearance.

5. Dipstick Location: On some JDM 5VZ-FE blocks, the dipstick is in a different location. You may need to use the pre-marked "boss" on the block to move your original USDM dipstick tube to the correct Tacoma position.
