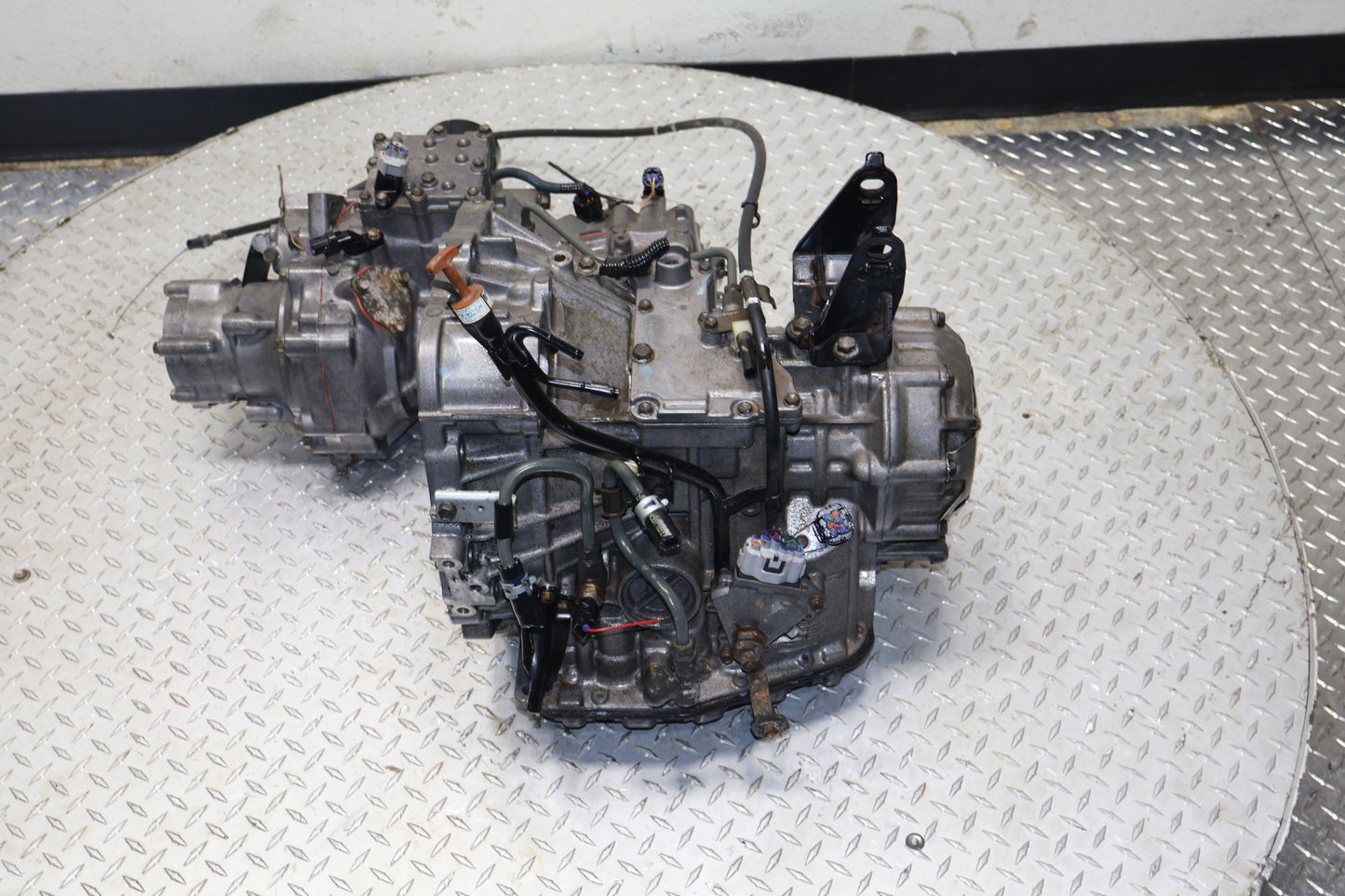

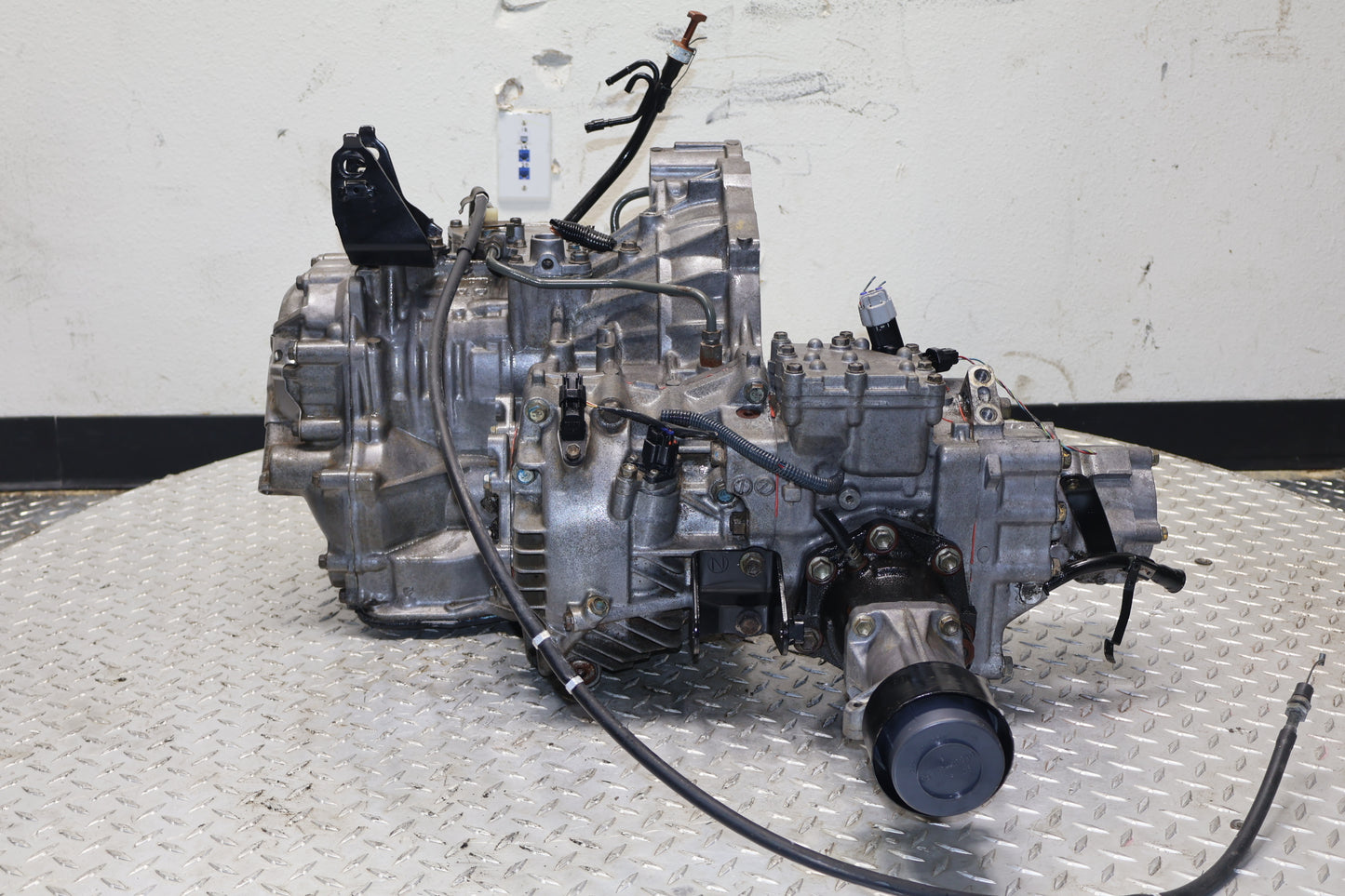

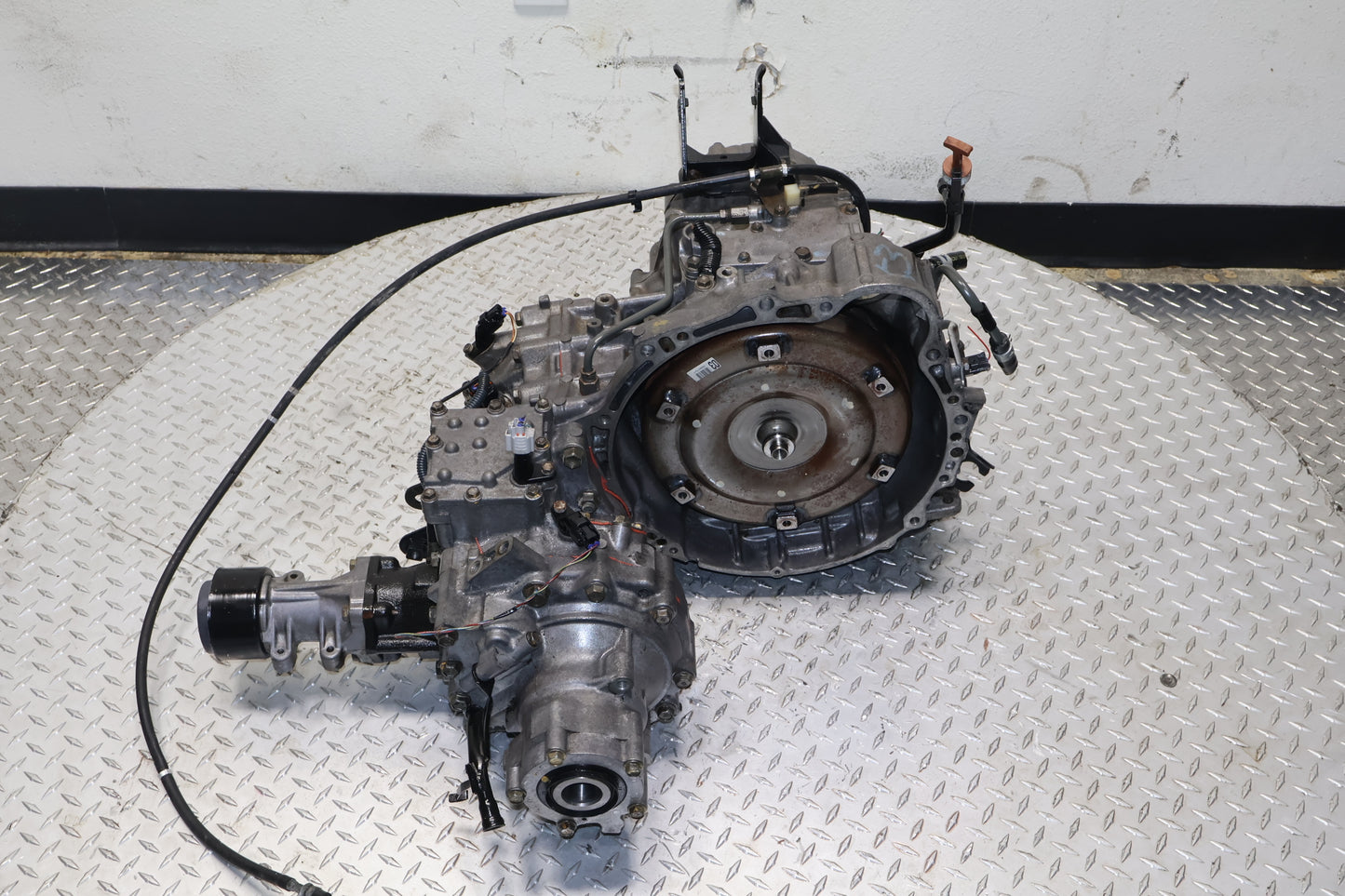

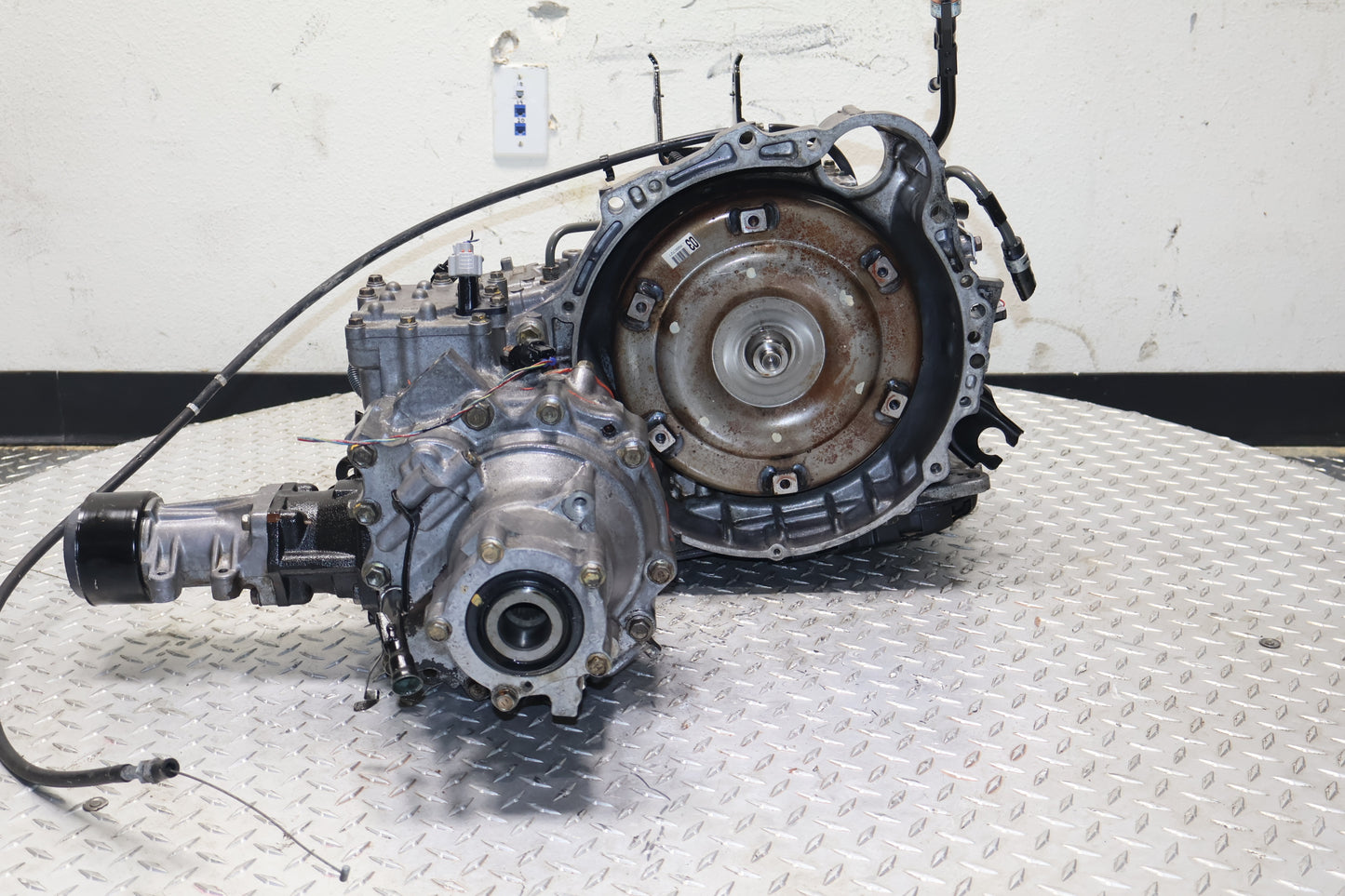

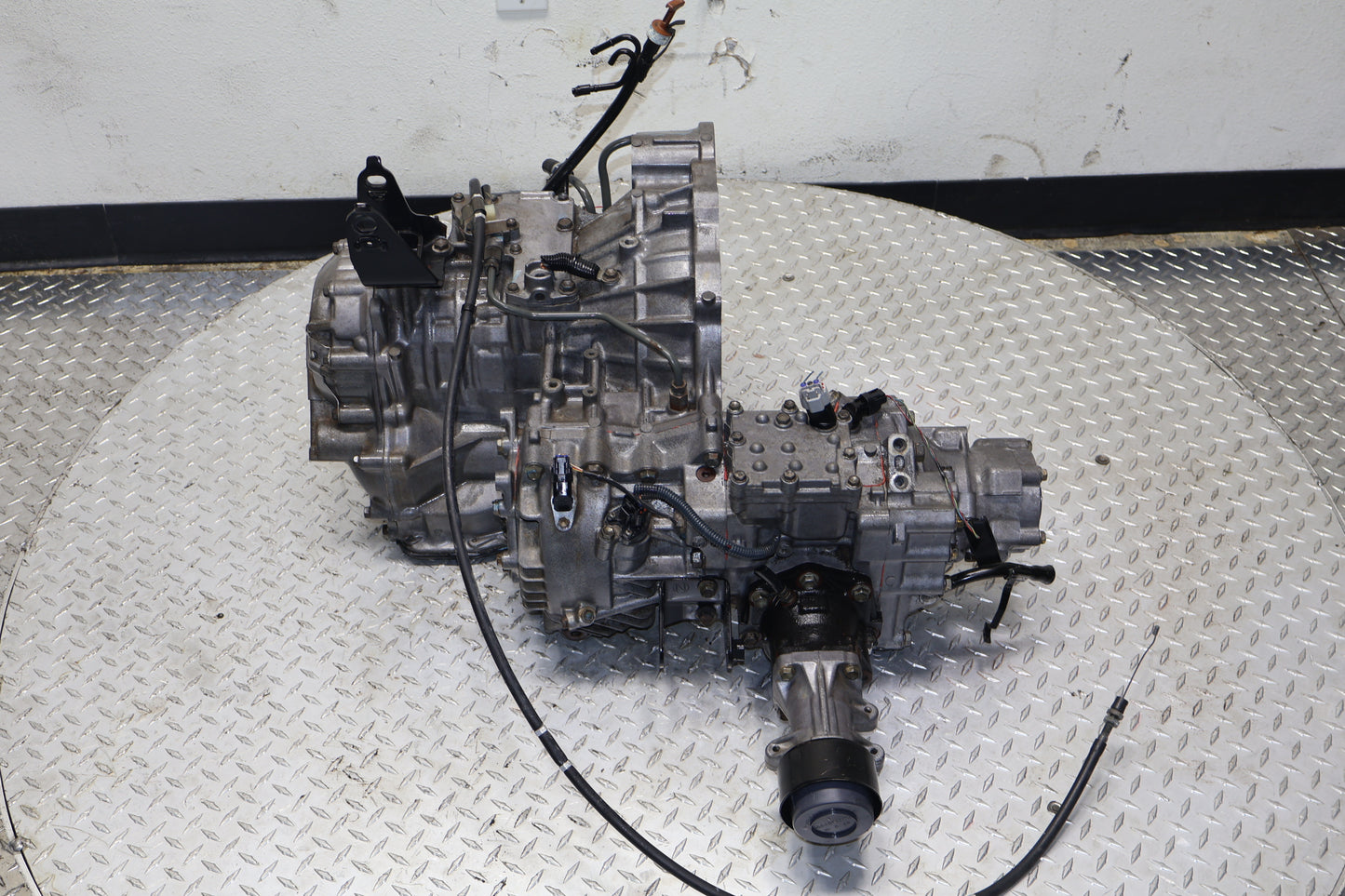

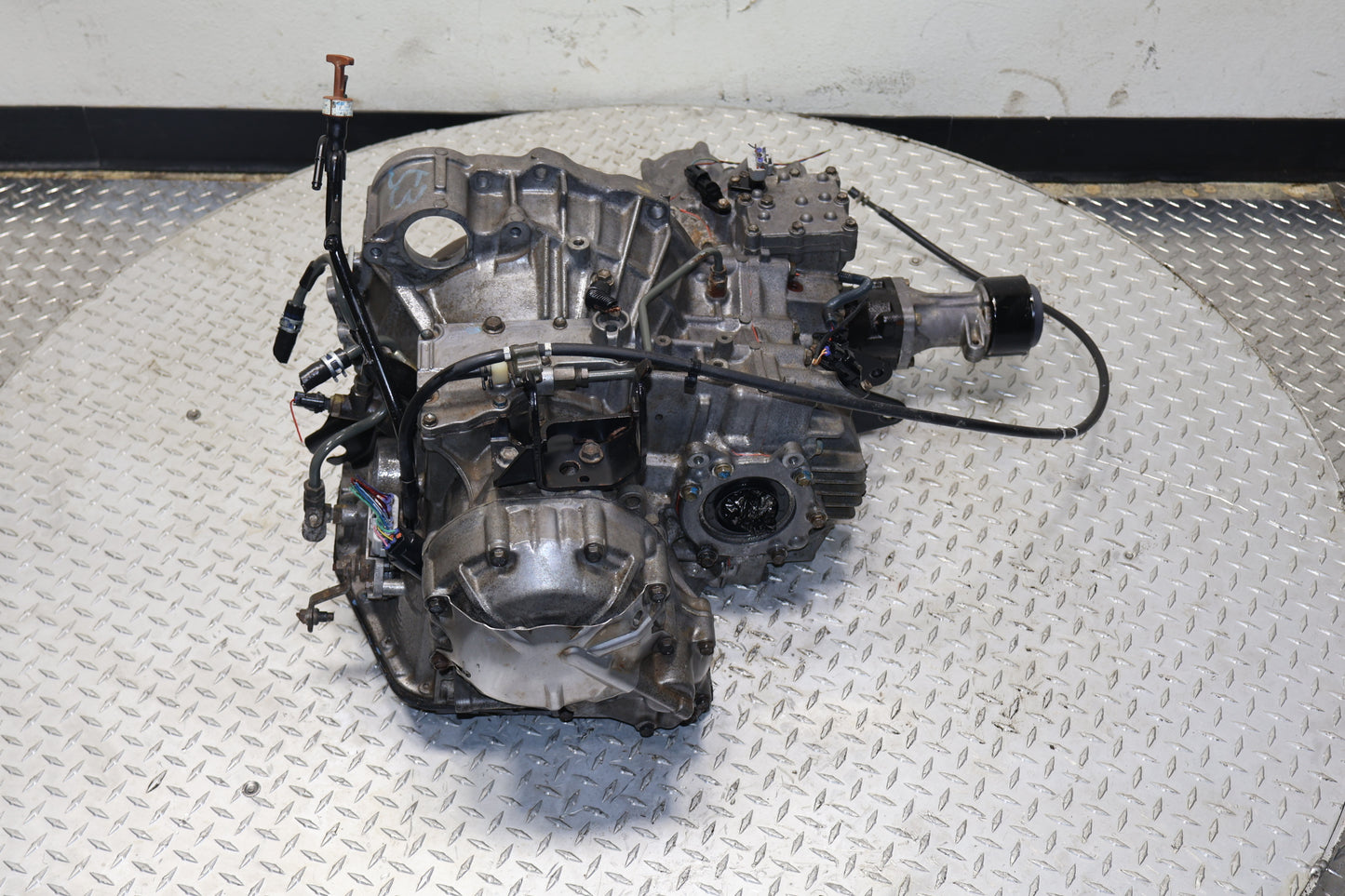

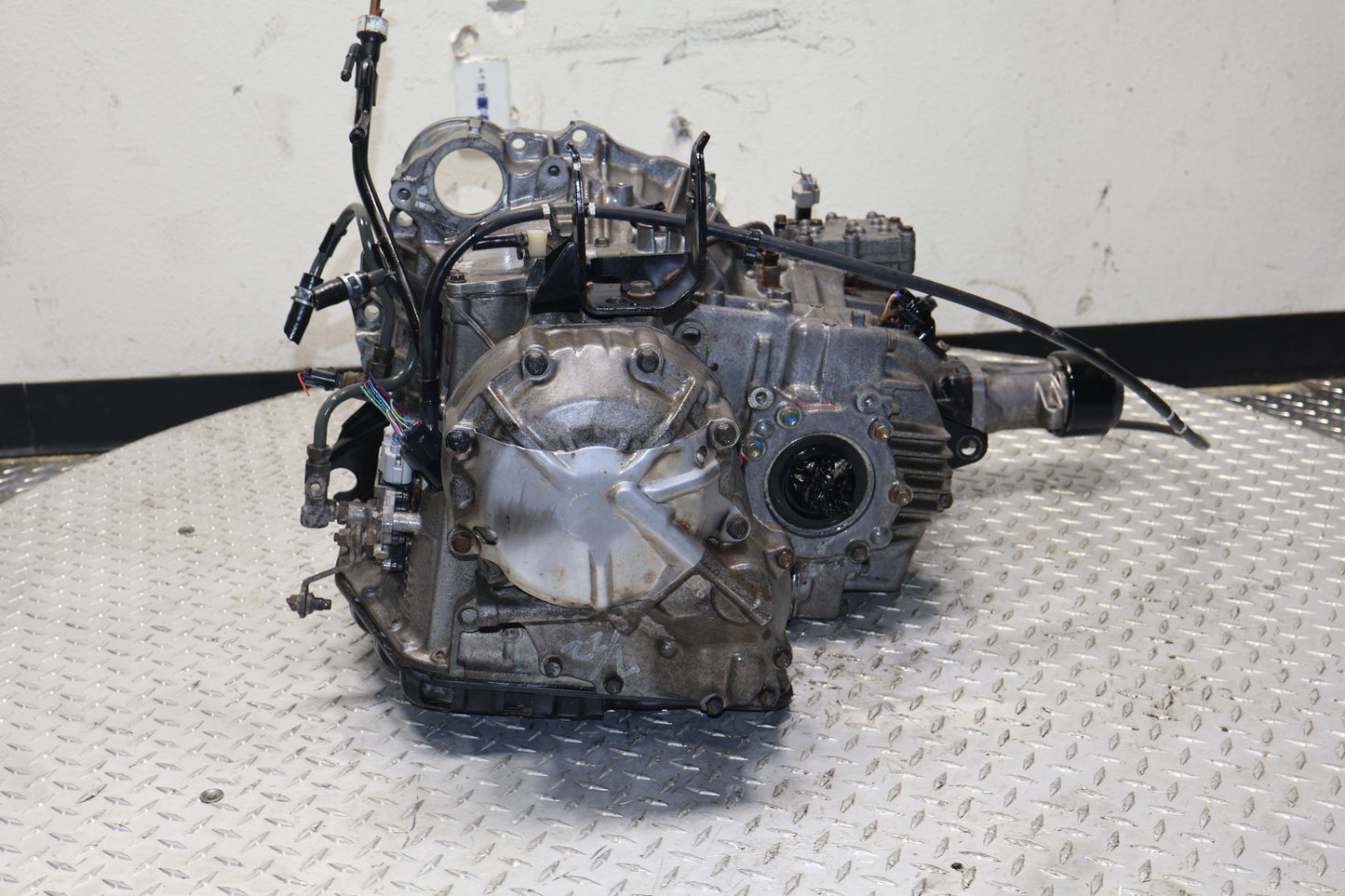

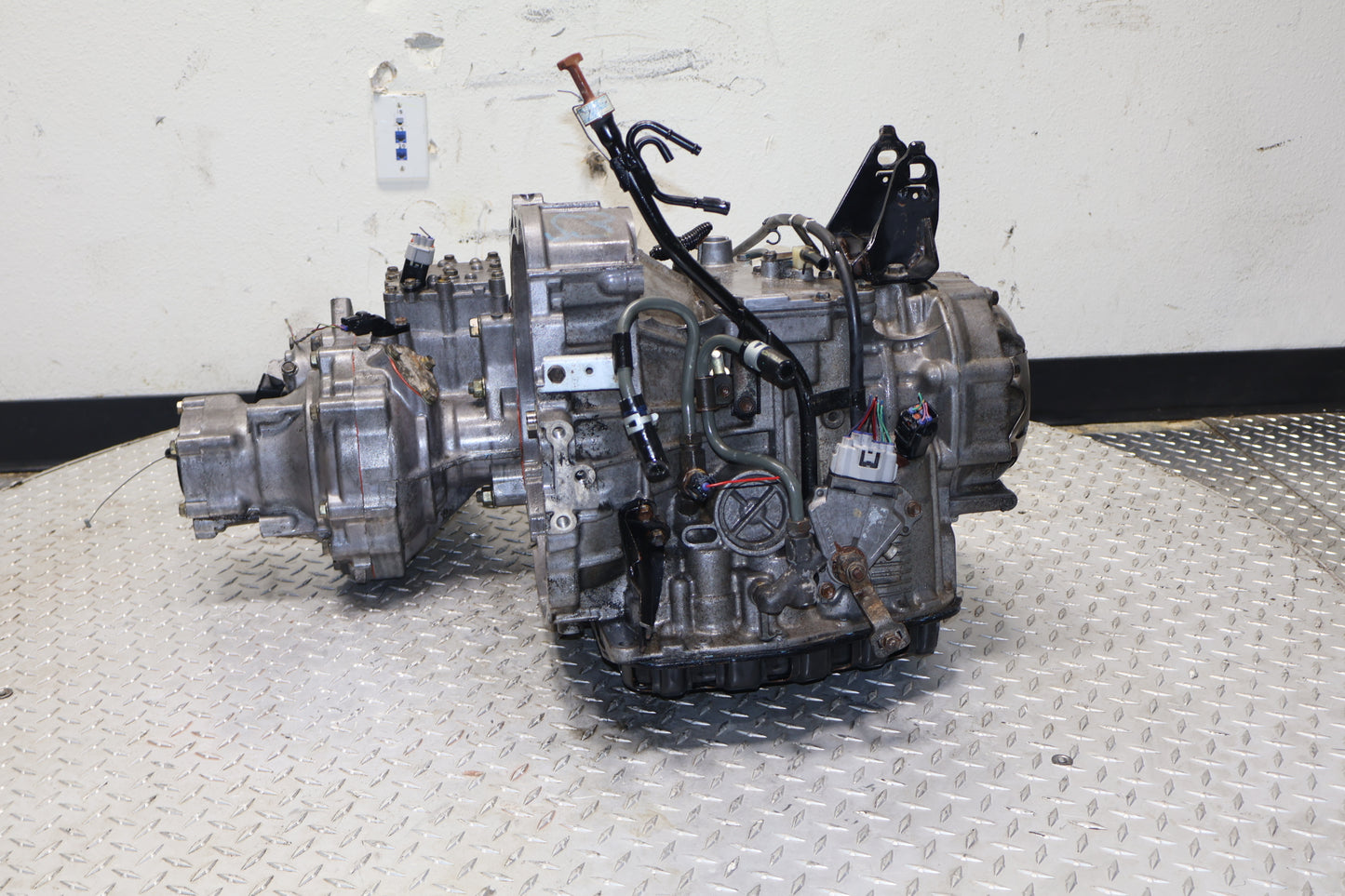

1998 1999 2000 Toyota RAV4 2.0L Automatic AWD Transmission JDM 3S-FE

Vehicle Fitment

This transmission serves as a direct replacement for the following North American models:

• Toyota RAV4 AWD (2-Door & 4-Door): 1998, 1999, 2000

• Chassis Code: XA10 Platform

• Compatibility Note: This is specifically for the AWD/4WD model. If your RAV4 is Front-Wheel Drive (FWD) only, the casing will differ. Please verify that your vehicle is equipped with the 2.0L 3S-FE engine before ordering.

JDM to USDM Installation & Technical Guide

To ensure 100% OBDII compliance and a smooth swap, professional Toyota technicians recommend these "External Swap" steps:

• Solenoid & Harness Transfer: You must transfer your original USDM Transmission Wiring Harness and Solenoids from your old transmission to the JDM unit. JDM electrical plugs can vary by year and region; using your original electronics ensures the ECU recognizes the components instantly and prevents "Check Engine" lights.

• Speed Sensor (VSS): Reuse your original USDM Speed Sensor. This ensures your speedometer and cruise control remain 100% accurate.

• Neutral Safety Switch: Transfer your original USDM Neutral Safety Switch (Range Sensor) to ensure your gear indicator and starting circuit function correctly.

• Fluid Service: Flush your transmission cooler lines thoroughly. Fill only with high-quality Toyota ATF Type T-IV (or equivalent specified on your dipstick). Using the wrong fluid in these older Toyota boxes can lead to harsh shifts and premature seal failure.
