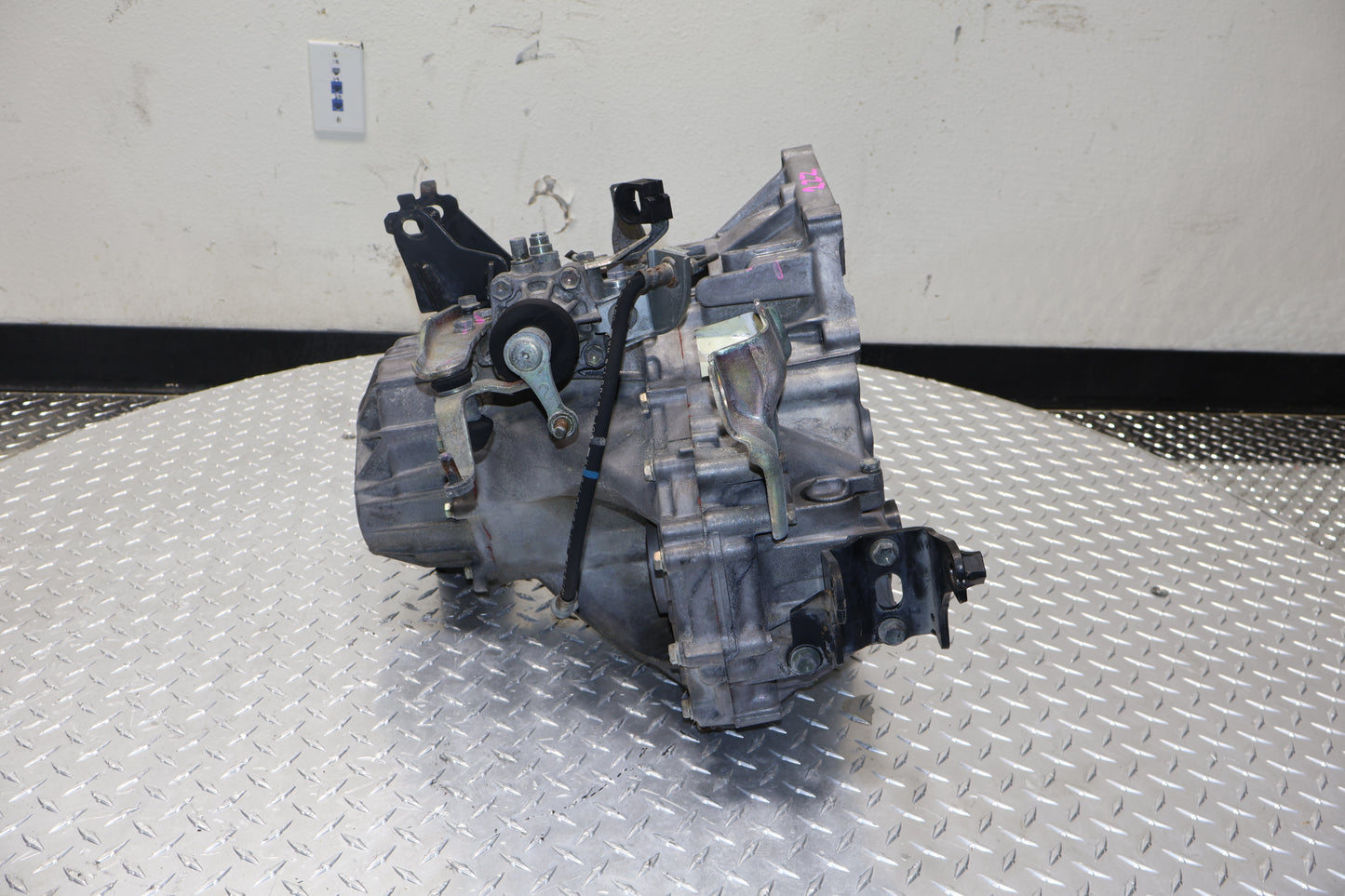

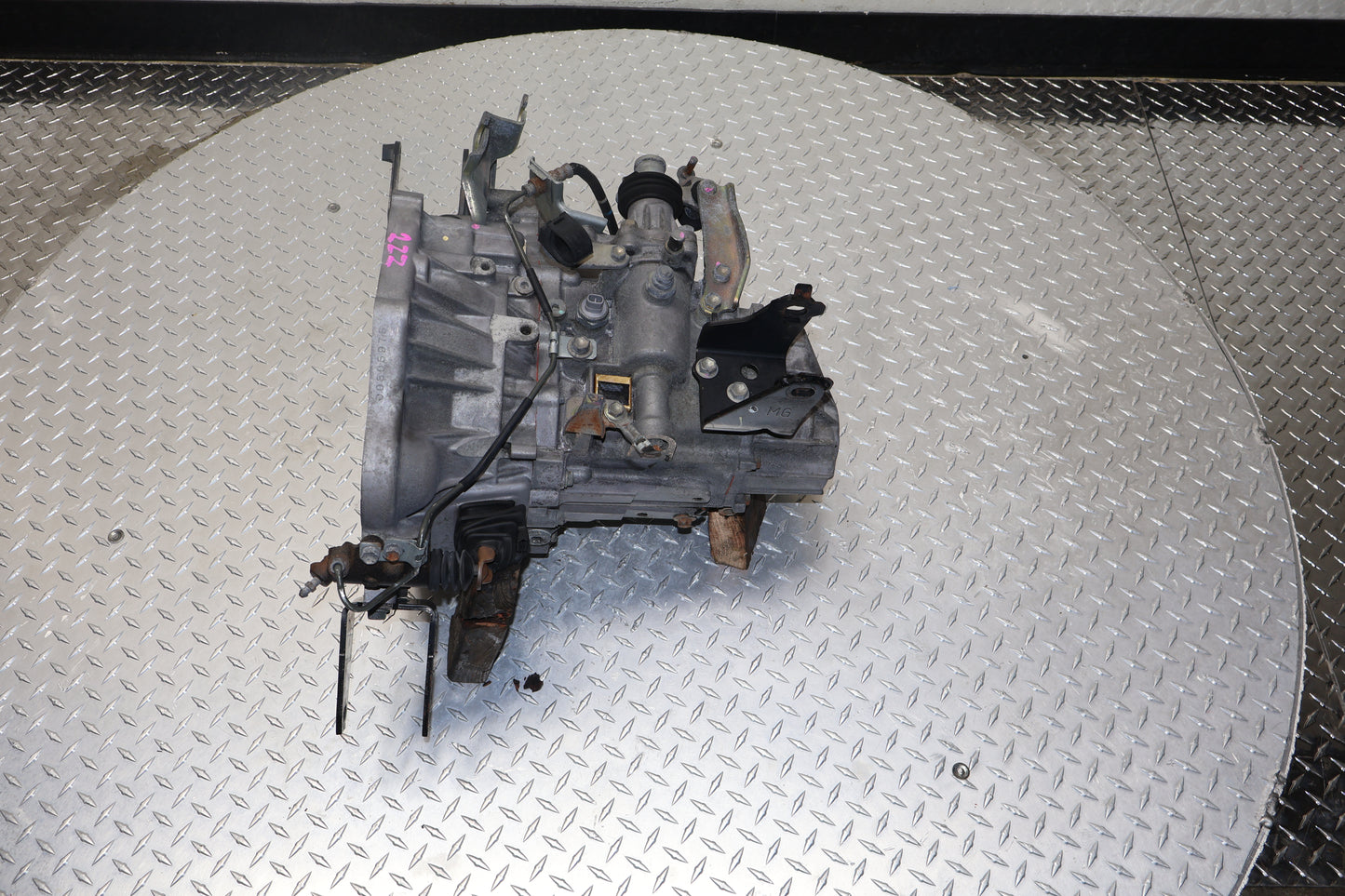

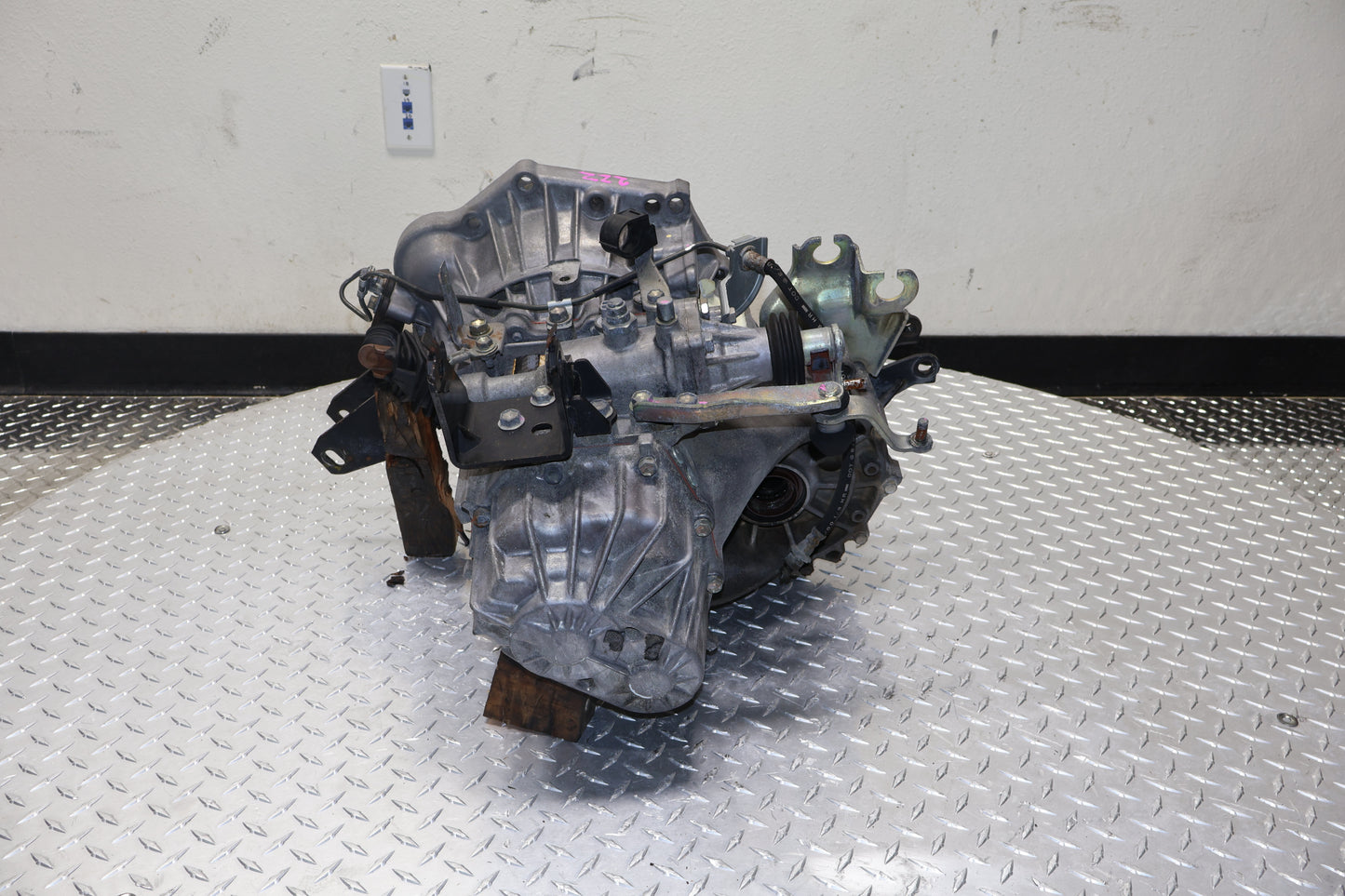

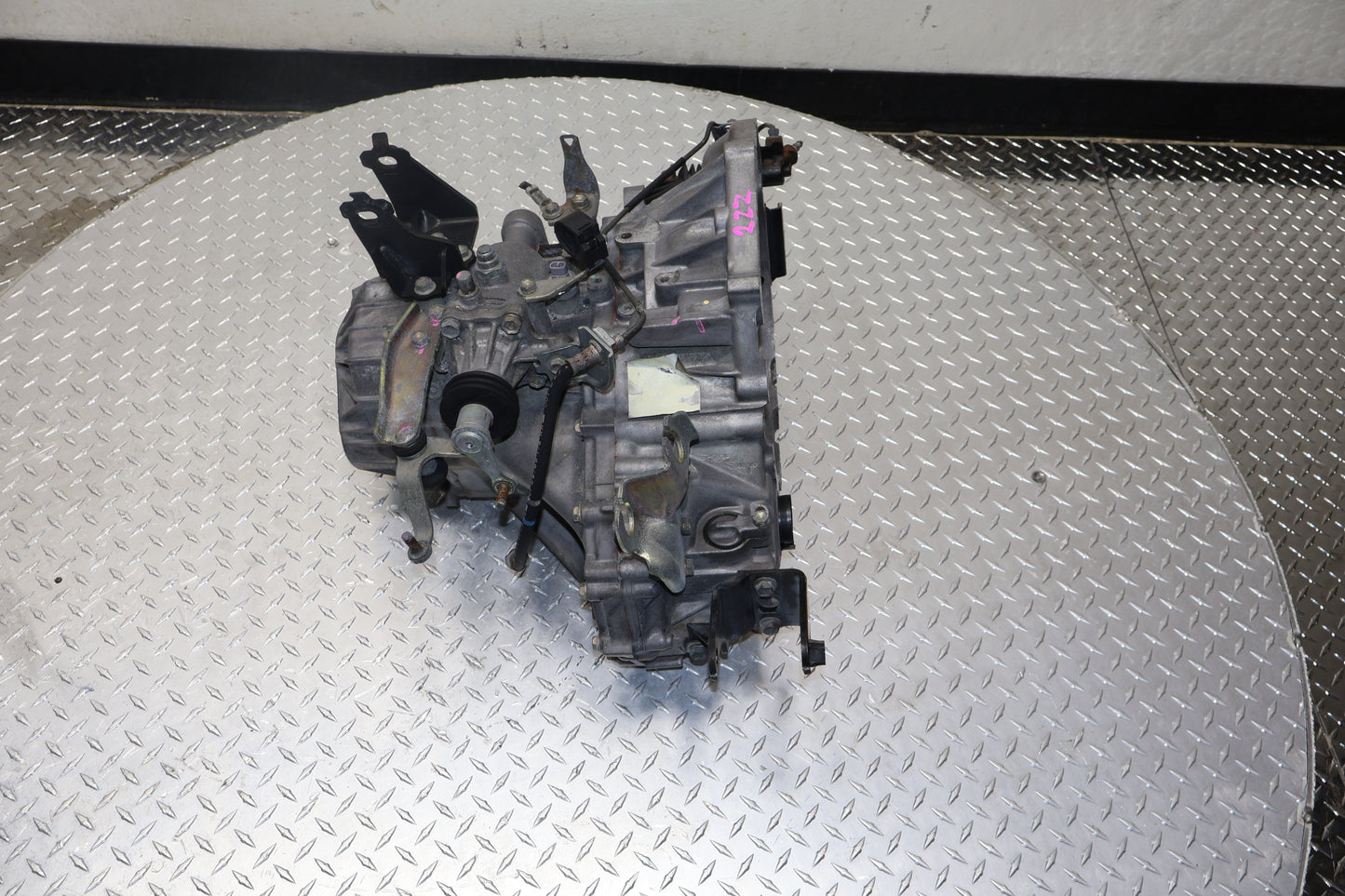

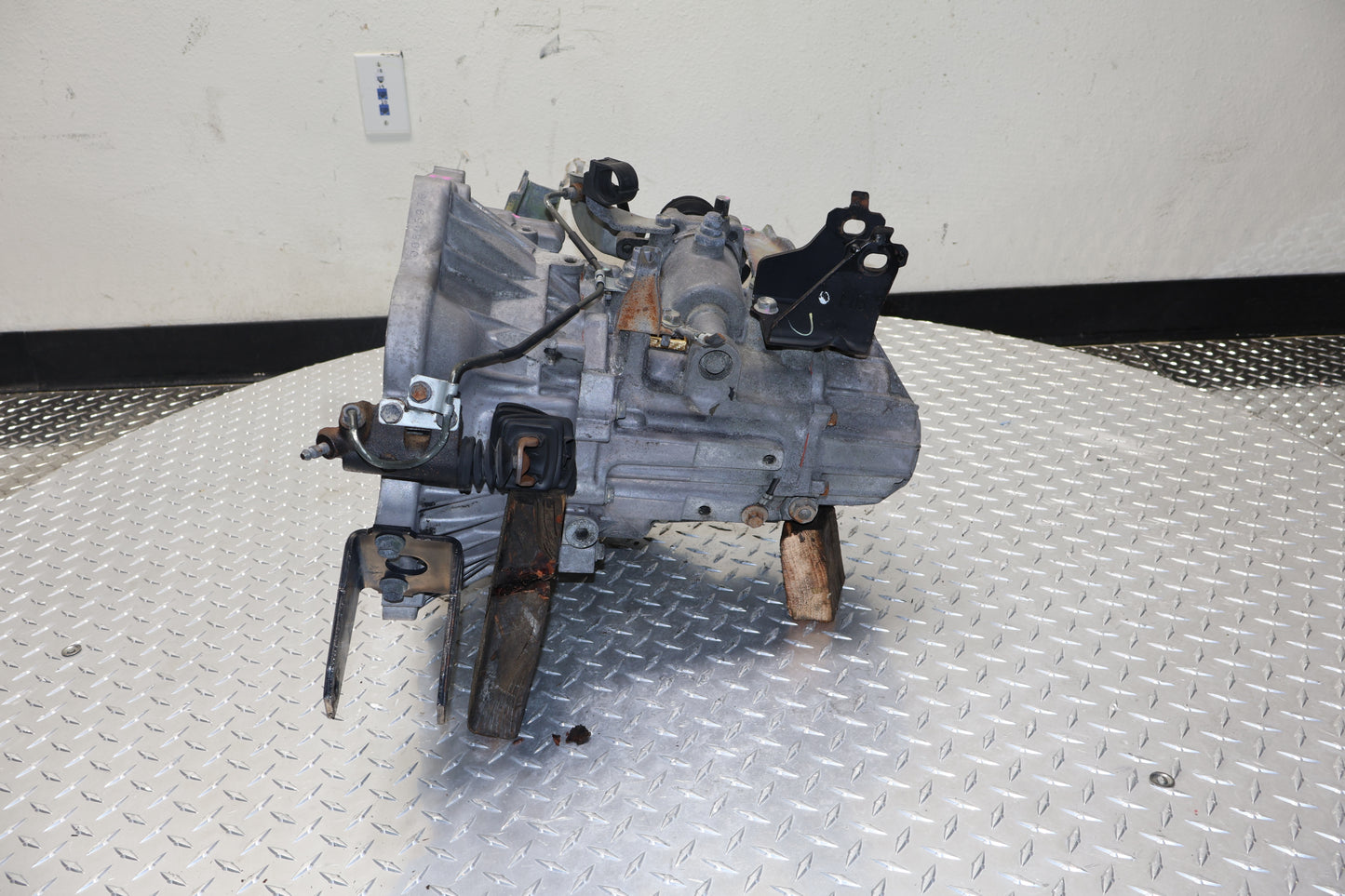

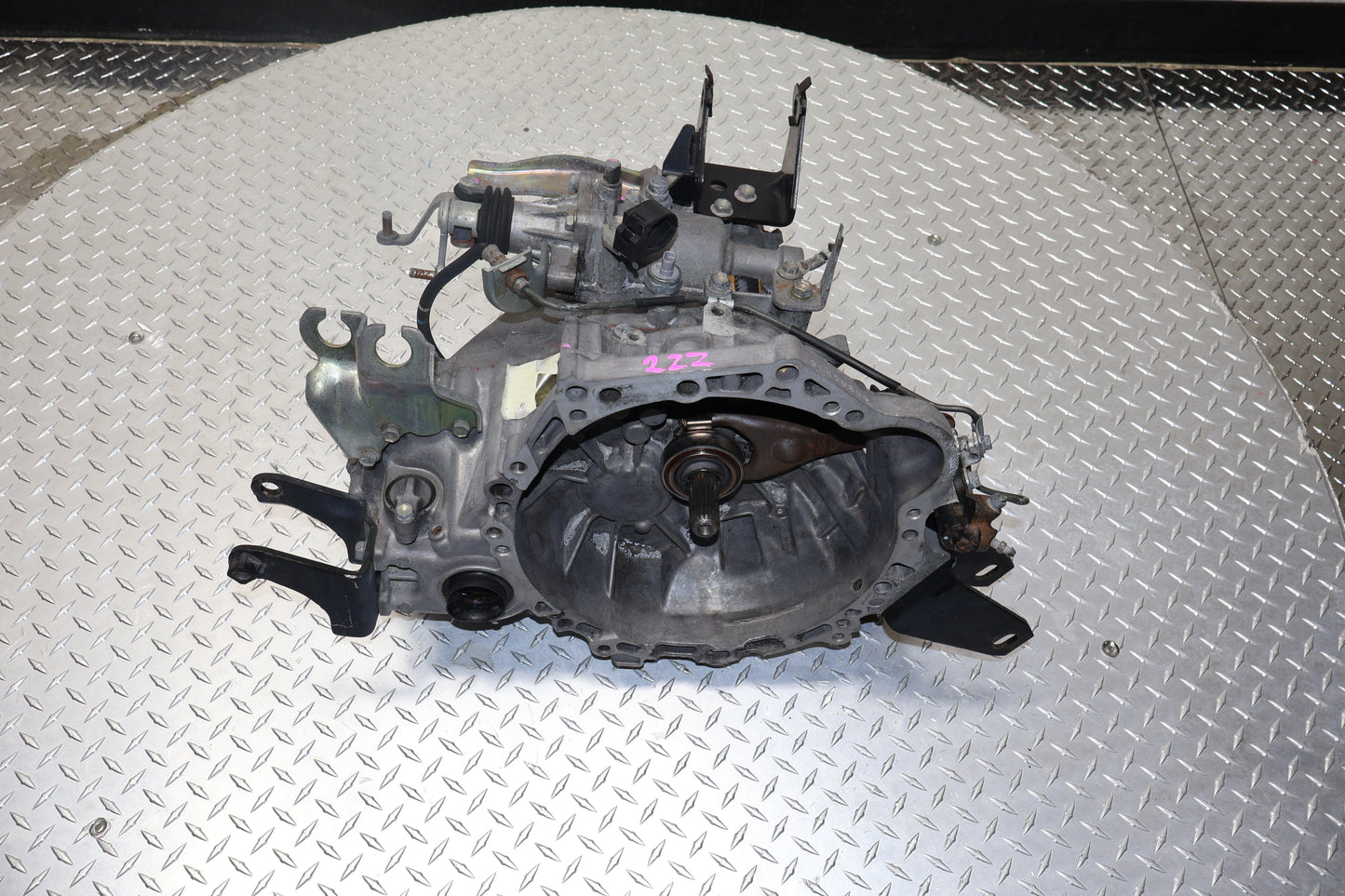

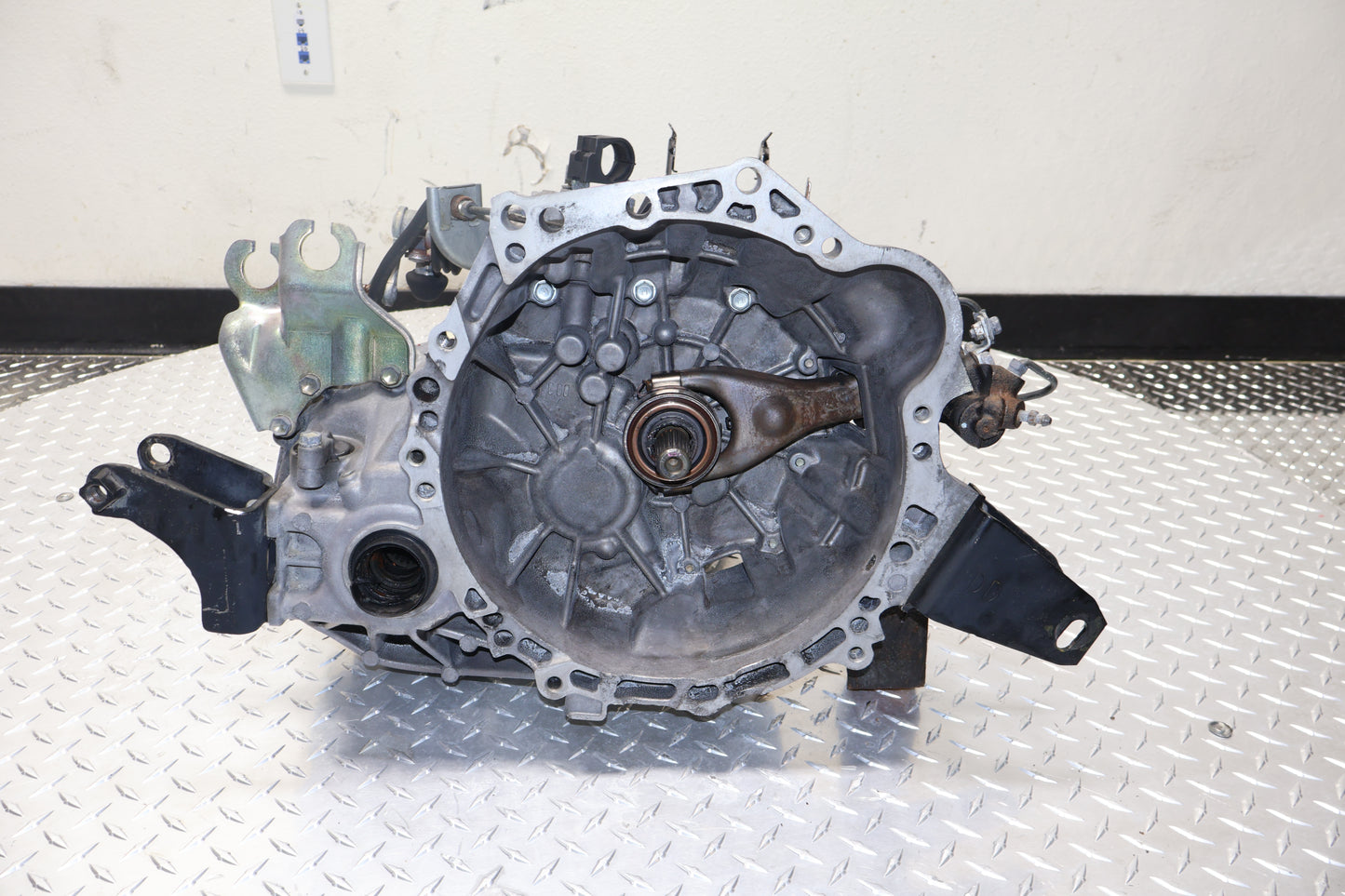

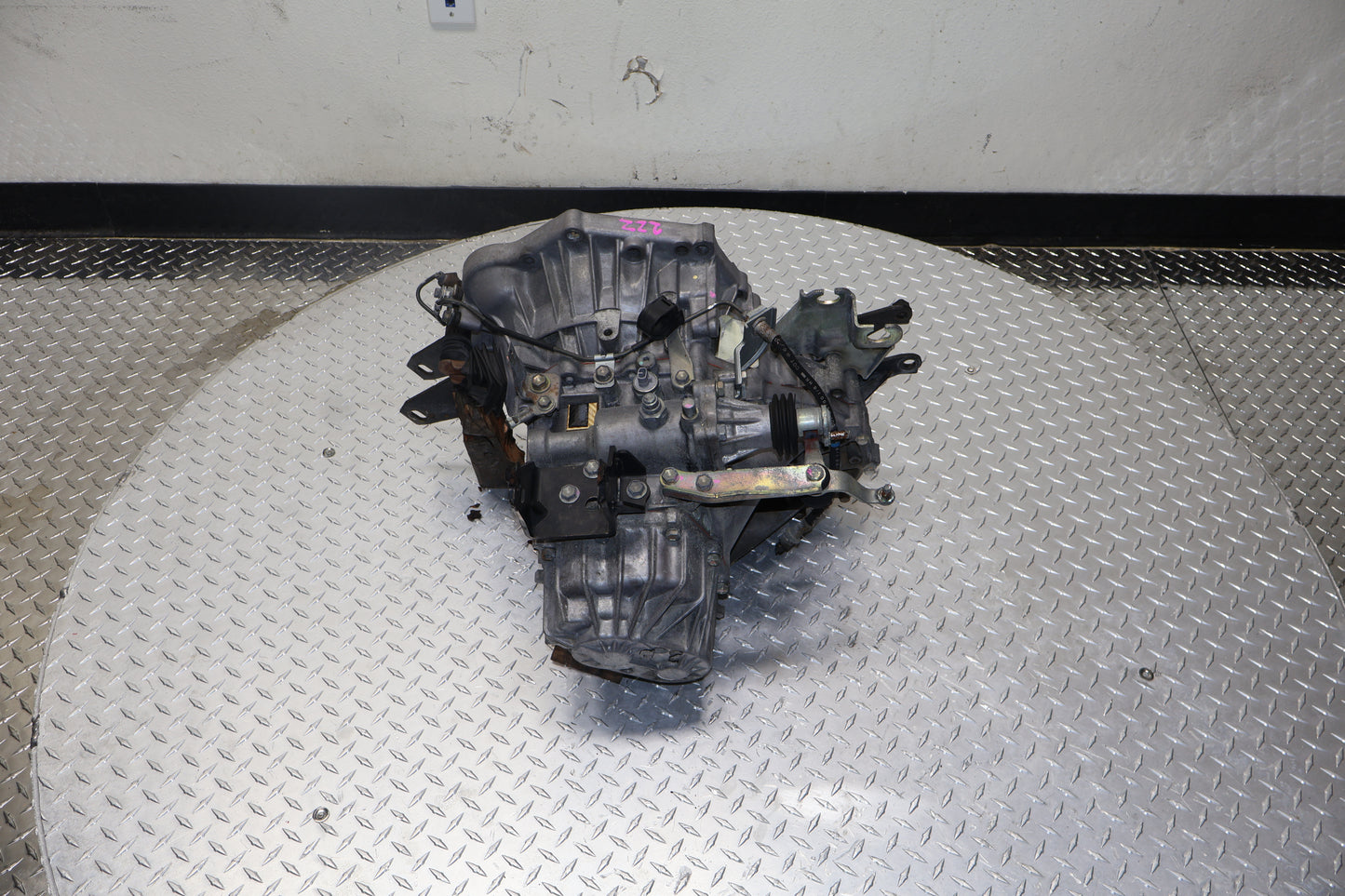

2003 - 2006 Toyota Matrix XRS JDM 2ZZ-GE | 1.8L 6 Speed Manual Transmission

Transmission Specifications

• Transmission Code: C60 (Manual Layout)

• Forward Gears: 6-Speed

• Engine Compatibility: 1.8L DOHC 4-Cylinder VVTL-i (2ZZ-GE)

• Final Drive Ratio: 4.529:1

• Reverse Gear Ratio: 3.250:1

• Origin: Authentic JDM (Japan Domestic Market)

Vehicle Fitment & Drivetrain Compatibility

This 6-speed gearbox serves as a direct drop-in replacement or high-demand performance upgrade for:

• Toyota Matrix XRS: 2003, 2004, 2005, 2006 (Direct factory replacement)

Manual Transmission Installation Notes

SERVICE ADVISORY: High-RPM shift points require precise installation steps. Review these professional guidelines before completing your gearbox drop-in:

1. Transfer USDM Shifter Linkages & Brackets: JDM transmissions originate from right-hand drive models. You MUST remove the JDM external shift-selector arms and reuse your original USDM shifter cable brackets and vehicle speed sensor (VSS) to mate perfectly with your factory dashboard and center console controls.

2. Install Fresh Clutch Hardware: Never mount a transmission onto a used clutch assembly. Install a brand-new clutch disc, heavy-duty pressure plate, throw-out bearing, and pilot bearing. Always resurface or replace the flywheel to guarantee clean engagement.

3. Replace Differential Seals: Take advantage of the transmission being out of the vehicle and install new driver-side and passenger-side CV axle seals to avoid fluid weeping down the road.

4. Inspect Bellhousing Mounts: Check all aluminum engine-to-transmission alignment dowels and structural mounts. Ensure everything is clear of road debris before torqueing bolts to factory spec.

5. Fluid Protocols: Fill the transmission casing using only premium Genuine Honda Manual Transmission Fluid (MTF) or a specialized performance alternative like Redline MTL. Avoid generic, overly viscous gear oils, as they slow down the synchronization process and cause gear grinds under hard acceleration.
